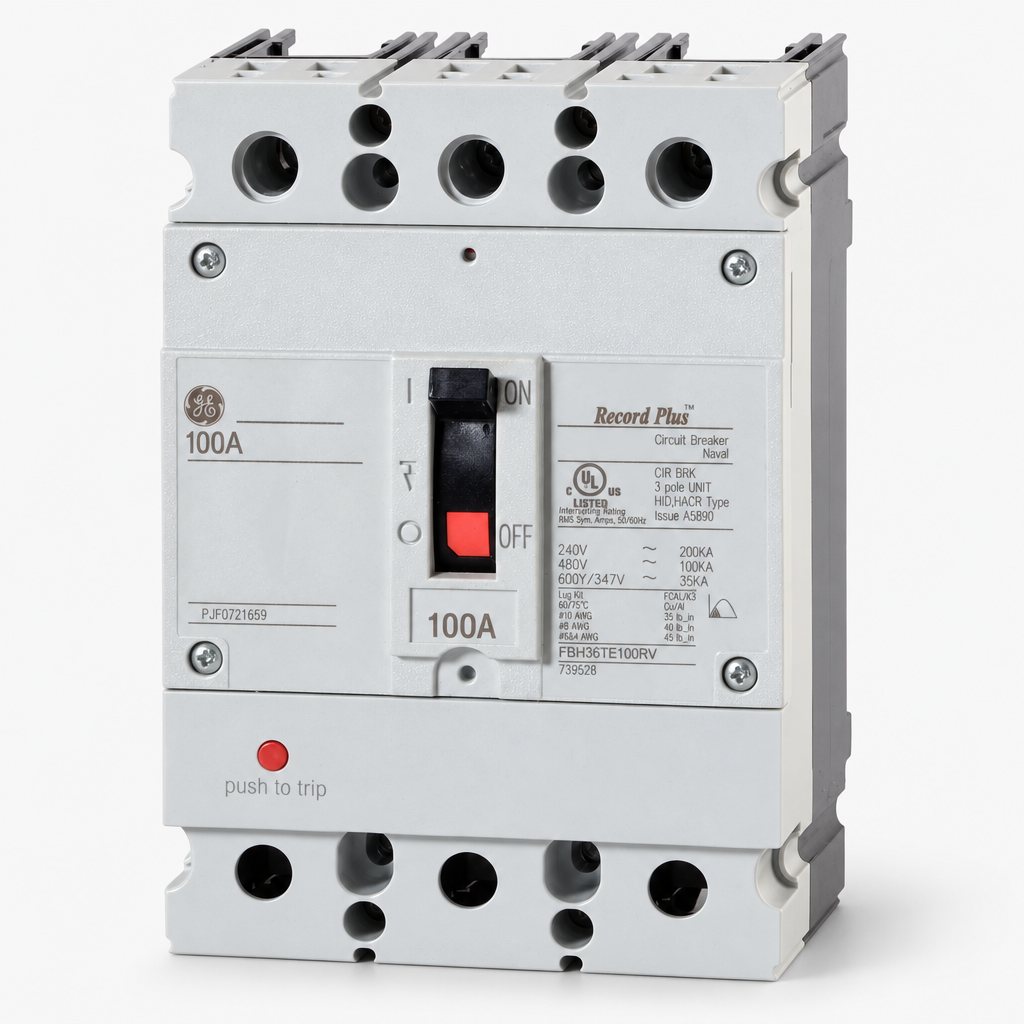

ABB / General Electric FBH36TE100RV Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE100RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE100RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBH36TE100RV - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
ABB / General Electric FBH36TE100RV - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE100RV |
| Series | FBH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Quantity
ABB / General Electric FBH36TE100RV - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Similar Items
ABB / General ElectricFBH36TE050RV
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE020RV
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial applications, the GE FBH36TE100RV is a 3-pole, 100A molded case circuit breaker. It features a trip-free mechanism and fixed thermal-magnetic trip units to ensure reliable performance during overcurrent events. This bolt-on MCCB mounts into GE Type AD panelboards and includes line side panel connectors and load side lugs. It is currently replaced by the Tmax XT series. With a 100kAIC rating at 480VAC, this HACR and naval-rated breaker offers exceptional safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Product FAQs
4 answersDoes this breaker require a specific panelboard for installation?
Yes, the FBH36TE100RV features proprietary line-side connections designed exclusively to bolt into GE Type AD panelboards. It cannot be used in standard enclosures without the matching AD bus structure.
What does the RV suffix indicate in the catalog number?
In the GE Record Plus nomenclature, the RV suffix signifies that the circuit breaker is supplied with standard load lugs and specialized line-side connections specifically required for mounting in Type AD panelboards.
Do both the line and load sides of this breaker use standard wire lugs?
No. The load side includes standard lugs accepting 4 AWG to 1/0 AWG wire, but the line side is equipped with specific hardware to bolt directly to the bus of a GE Type AD panelboard.
Are the Long-Time and Instantaneous trip settings adjustable on this unit?
No, this breaker is built with fixed thermal and fixed magnetic trip elements. Both the overload and short-circuit pickup levels are permanently set at the factory and cannot be adjusted in the field.
