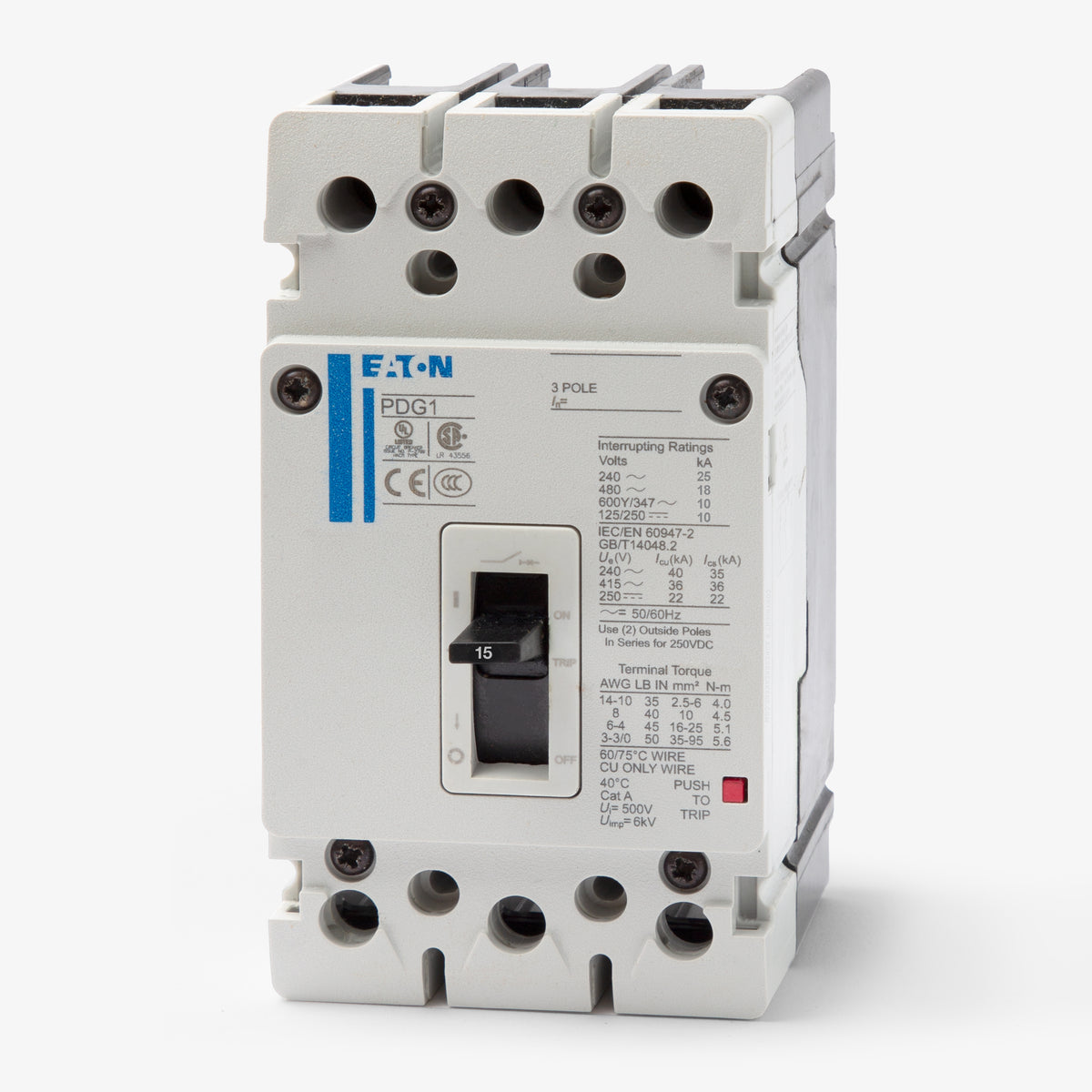

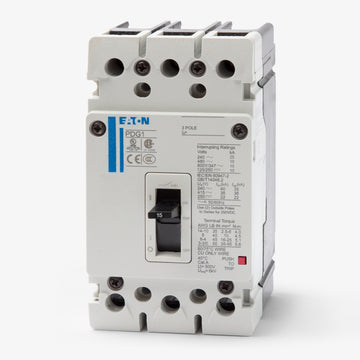

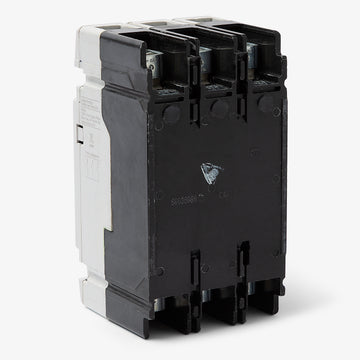

Eaton / Cutler-Hammer PDG13C0015TFFJ Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0015TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0015TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0015TFFJ - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Description
Utilizing advanced current-limiting technology, the Eaton PDG13C0015TFFJ 3-pole, 15A molded case circuit breaker anchors the Power Defense Frame 1 series. It features fixed thermal and magnetic (LI) trip functions for consistent industrial circuit protection. This panel-mount unit is compatible with Eaton Power Defense panelboards and enclosures. It replaces the legacy FDB3015 breaker when used with a retrofit kit. The globally rated MCCB provides an 18kAIC interrupt rating at 480VAC.Specifications

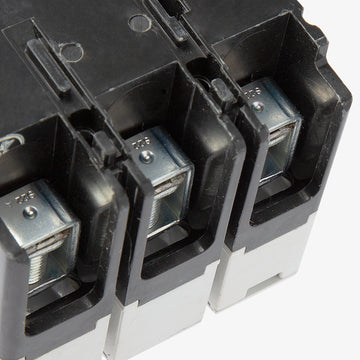

| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Terminal Shields, Interphase Barriers |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Globally Rated, RoHS Compliant |
Product FAQs
6 answersWhat does the catalog number PDG13C0015TFFJ indicate?
The catalog number breaks down the breaker's specifications within the Eaton Power Defense series. 'PDG1' indicates a Global Frame 1 breaker. '3' stands for 3 poles. 'C' denotes an interrupting rating of 18kAIC at 480VAC. '0015' specifies the 15A continuous current rating. 'TFF' indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. Finally, 'J' specifies standard line and load terminals.
Which panelboards and enclosures are compatible with the PDG13C0015TFFJ?
This Frame 1 Power Defense breaker is designed for use in Eaton Power Defense panelboards, switchboards, and compatible enclosures. It is a cable-in, cable-out molded case circuit breaker suitable for panel mount applications.
Can the PDG13C0015TFFJ be used in DC power systems?
Yes, this breaker is rated for DC applications up to 250VDC with an interrupting capacity of 10kAIC. When used in 250VDC systems, Eaton requires wiring two poles in series to safely interrupt the direct current arc.

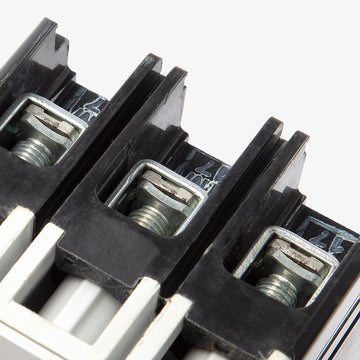

What are the terminal torque requirements for the standard box lugs on this breaker?
For the standard PDG1X3T125 steel box terminals, the required torque depends on the wire size. For 14 to 10 AWG wire, torque to 35 lb-in. For 8 AWG, torque to 40 lb-in. For 6 to 4 AWG, torque to 45 lb-in. For 3 to 3/0 AWG, torque to 50 lb-in. Always verify with the markings on the breaker or terminal before installation.
What type of trip protection does the PDG13C0015TFFJ provide?
This breaker utilizes a fixed thermal-magnetic trip unit, providing both long-time (L) overload protection and instantaneous (I) short-circuit protection. The thermal and magnetic trip thresholds are factory set and cannot be adjusted in the field.
Can I install multi-wire terminals on the PDG13C0015TFFJ?
Yes, Eaton offers field-installable multi-wire terminal kits for Power Defense Frame 1 breakers. Options include aluminum multi-wire terminals capable of accepting up to three or six conductors per phase, depending on the specific kit and wire gauge used.
