Eaton / Cutler-Hammer PDG23F0015TFFL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

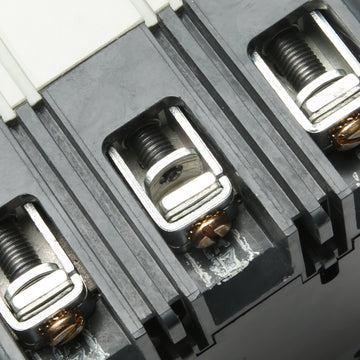

Eaton / Cutler-Hammer PDG23F0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0015TFFL
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0015TFFL
15A 3 Pole Molded Case Circuit Breaker
Description
Built for robust electrical systems, the Eaton PDG23F0015TFFL is a 3-pole, 15A molded case circuit breaker from the Power Defense Frame 2 lineup. Designed to mount into Eaton panelboards and enclosures, this specific model features standard terminals on the load side only. It can replace older FDB3015 units when upgrading switchgear, provided trim compatibility is checked. The breaker offers a 25 kAIC interrupting rating at 480VAC and utilizes a fixed thermal-magnetic (LI) trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Terminal Shields, Handle Lock |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting |
Product FAQs
6 answersCan the PDG23F0015TFFL replace older Cutler-Hammer FDB breakers?
Yes, this Power Defense Frame 2 breaker can often replace older FDB3015 units when upgrading switchgear. Always verify trim and mounting compatibility in your specific panelboard before installation.
How do I decode the PDG23F0015TFFL catalog number?
The prefix PDG2 stands for Power Defense Globally rated Frame 2. The 3 indicates 3 poles. The F denotes a 25kAIC rating at 480VAC. The 0015 specifies 15 amps. TFF means a fixed thermal and fixed magnetic trip unit, and L indicates standard lug terminals.
Does the PDG23F0015TFFL come with lugs on both the line and load sides?
This specific bolt-on configuration features standard lugs on the load side only. The line side is designed to bolt directly to the busbar in compatible Eaton Power Defense panelboards and switchboards.
Are the terminals on the PDG23F0015TFFL rated for both aluminum and copper wire?
Yes, the standard load-side lugs are dual-rated for both aluminum (Al) and copper (Cu) conductors, accepting wire sizes from 14 AWG to 1/0 AWG.
What does the fixed thermal-magnetic trip unit on this breaker provide?
The fixed thermal and fixed magnetic (LI) trip unit provides non-adjustable long-time overload protection and instantaneous short-circuit protection. It does not allow for field adjustments of the trip curve.
What international standards does the Power Defense Frame 2 platform meet?
The PDG2 series is a globally accepted platform that meets major industry standards, including UL, CSA, IEC, and CCC certifications.
