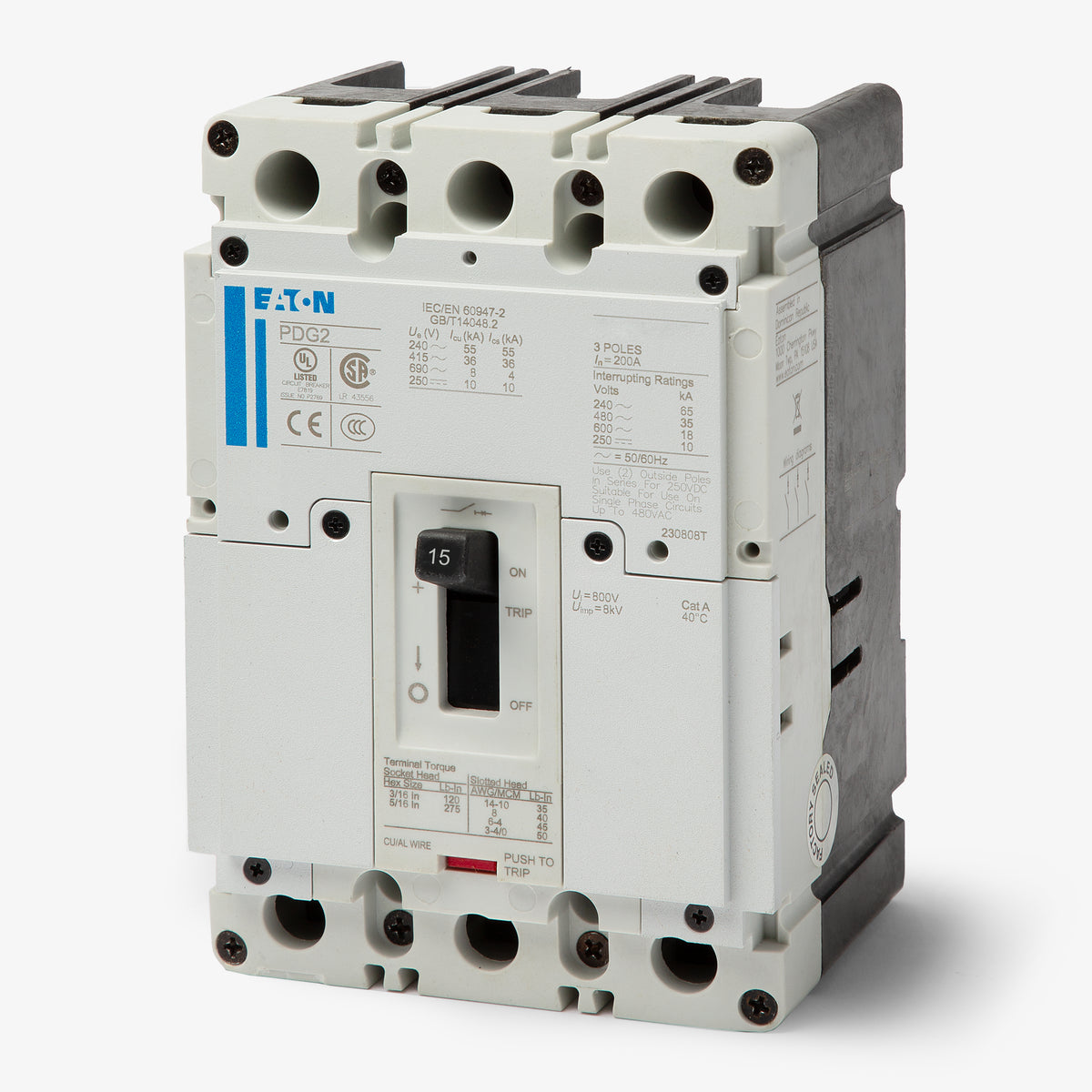

Eaton / Cutler-Hammer PDG23G0015TFFL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23G0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Sold out
Quantity
Eaton / Cutler-Hammer PDG23G0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0015TFFL
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Description
A versatile solution for industrial facilities, the Eaton PDG23G0015TFFL is a 3-pole, 15A molded case circuit breaker. It provides fixed thermal-magnetic trip functions for dependable LI protection. This Frame 2 breaker is designed for panel mount installations within Eaton enclosures. It comes with load-side lugs only and serves as an exact replacement for older EGE3015FFG and HFD3015 models. With a 65kAIC interrupt capacity at 240V, the unit is fully HACR rated and RoHS compliant.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
9 answersWhat panelboards or equipment are compatible with the Eaton PDG23G0015TFFL?
This Frame 2 Power Defense breaker is designed for use in Eaton Power Defense panelboards, switchboards, and industrial control enclosures utilizing a bolt-on mounting configuration.
What wire types are compatible with the standard terminals on the PDG23G0015TFFL?
The standard factory-installed lugs accept 14 AWG through 1/0 AWG conductors and are rated for use with both copper (Cu) and aluminum (Al) wiring. Ensure conductors are torqued to Eaton's published specifications during installation.
Does the PDG23G0015TFFL circuit breaker feature adjustable trip settings?
No, this breaker utilizes a fixed thermal and fixed magnetic (TFF) trip unit. If your application requires adjustable long-time, short-time, or instantaneous settings, you will need a Power Defense model equipped with a PXR electronic trip unit.
What certifications are included with Eaton Power Defense PDG breakers?
As part of the Globally Rated (PDG) series, this breaker carries multi-standard approvals including UL, CSA, IEC, and CCC. This makes it ideal for panel builders and original equipment manufacturers (OEMs) exporting electrical equipment internationally.
Are internal accessories field-installable on this Power Defense Frame 2 breaker?
Yes. Power Defense Frame 2 breakers support field-installable internal accessories, including auxiliary contacts, alarm switches, shunt trips, and undervoltage releases (UVR). These components can be added onsite without voiding the UL certification.
Can the PDG23G0015TFFL be reverse-fed?
Yes, standard thermal-magnetic Power Defense circuit breakers are suitable for reverse-feed applications. However, if installing additional modules like residual current devices (RCD), verify line and load orientation requirements in the manufacturer documentation.
What do the "TFF" and "L" indicate in the PDG23G0015TFFL catalog number?
"TFF" specifies that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic protection. The "L" suffix indicates the breaker comes equipped with standard line and load lugs.
Can the PDG23G0015TFFL be used in DC applications?
Yes, this thermal-magnetic breaker is rated for DC systems up to 250VDC with an interrupting capacity of 10kAIC. Ensure proper wiring configurations based on Eaton's guidelines for multi-pole DC switching.
Can I install a padlock accessory on this breaker for lockout/tagout (LOTO) procedures?
Yes, Eaton offers field-installable handle locking devices for Power Defense Frame 2 breakers. These accessories allow maintenance personnel to lock the breaker in the OFF position for safe equipment servicing and compliance with safety regulations.
