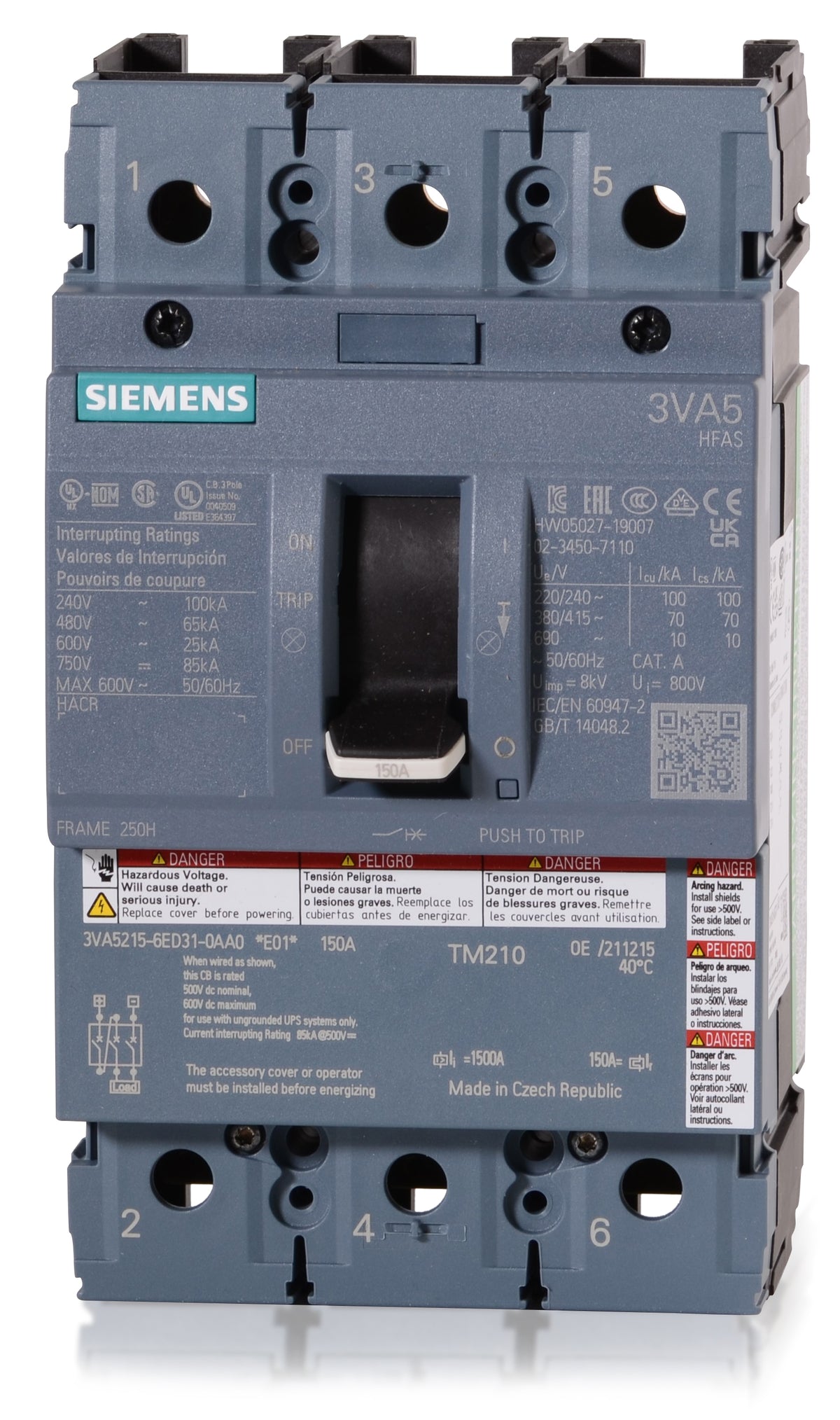

Siemens 3VA5215-6ED31-0AA0 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Siemens
3VA5215-6ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5215-6ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5215-6ED31-0AA0 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON 3VA5 series, the Siemens 3VA5215-6ED31-0AA0 is a 150A molded case circuit breaker designed for robust commercial and industrial applications. It provides dependable long-time and instantaneous (LI) protection. This 3-pole MCCB installs into Siemens P1, P2, and P3 panelboards, plus SB switchboards. It serves as a direct replacement for legacy HFD63B150 breakers. Delivering an H-Class 65kAIC rating at 480V, it utilizes a TM210 fixed thermal-magnetic trip and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5215-6ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 100kA @ 250VDC, 100kA @ 500VDC, 85kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhat types of panels and switchboards is this breaker compatible with?
The Siemens 3VA5215-6ED31-0AA0 is designed for use with Siemens P1, P2, and P3 panelboards, as well as SB switchboards and motor control centers.
Can I use the 3VA5215-6ED31-0AA0 to replace older Siemens breakers?
Yes, this 3VA52 frame breaker serves as a direct replacement for legacy Siemens HFD63B150 molded case circuit breakers.
Are the trip settings on this breaker adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit, providing non-adjustable long-time and instantaneous (LI) protection.
Which specific trip unit does the 3VA5215-6ED31-0AA0 use?
It utilizes a Siemens TM210 thermal-magnetic trip unit, which provides fixed overload and short-circuit protection.
What is the maximum DC voltage rating for this breaker?
This breaker is rated for up to 750VDC, with a maximum interrupting capacity of 85kA at that voltage.
Is this breaker suitable for HVAC applications?
Yes, the Siemens 3VA5215-6ED31-0AA0 is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment.
What is the frame size of the 3VA5215-6ED31-0AA0?
This breaker is built on the Siemens 3VA52 frame, which has a maximum frame rating of 250 amps, though this specific unit is configured with a 150-amp trip rating.
