Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED22B030
5.0
Rated 5.0 out of 5 stars
1 Review
Siemens ED22B030 2 Pole Circuit Breaker
Free Shipping Over $99

Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED22B030
5.0
Rated 5.0 out of 5 stars
1 Review
Select Item Condition
Earn 348 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens ED22B030 2 Pole Circuit Breaker

Siemens ED22B030 - 30A 2 Pole Molded Case Circuit Breaker

New

$348.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

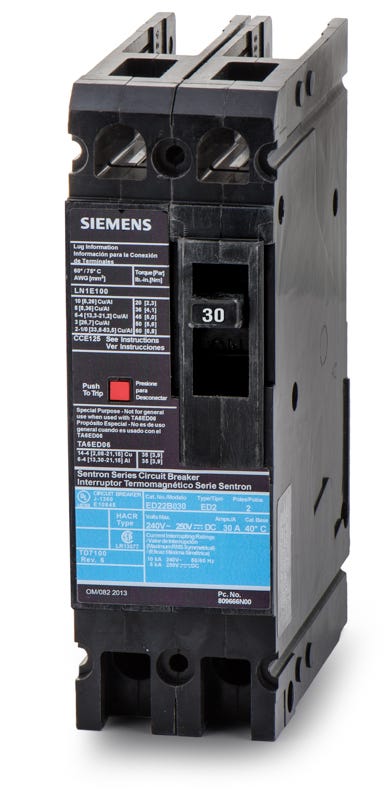

Built for dependable commercial power management, the Siemens ED22B030 is a 30A, 2-pole molded case circuit breaker from the Sentron ED2 series. It utilizes a thermal-magnetic trip mechanism to defend against overloads and short circuits. The bolt-on design ensures a secure connection within Siemens P1, P2, and P3 panelboards or SB switchboards. Capable of reverse feeding, this HACR-rated breaker delivers a 10kAIC interrupting capacity at 240VAC for robust system safety.

Specifications

Brand Siemens
Series ED2
Part Number ED22B030
Amperage 30A
Voltage 240VAC, 250VDC
Poles 2
Phase 1
AIC Rating 10kA @ 240VAC, 5kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards, SB Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 10-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 10 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Non-Interchangeable Trip
