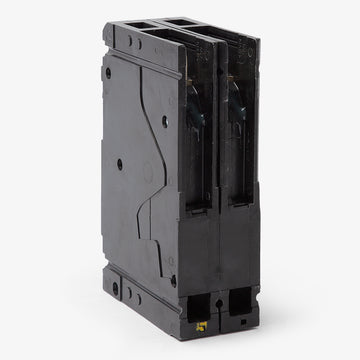

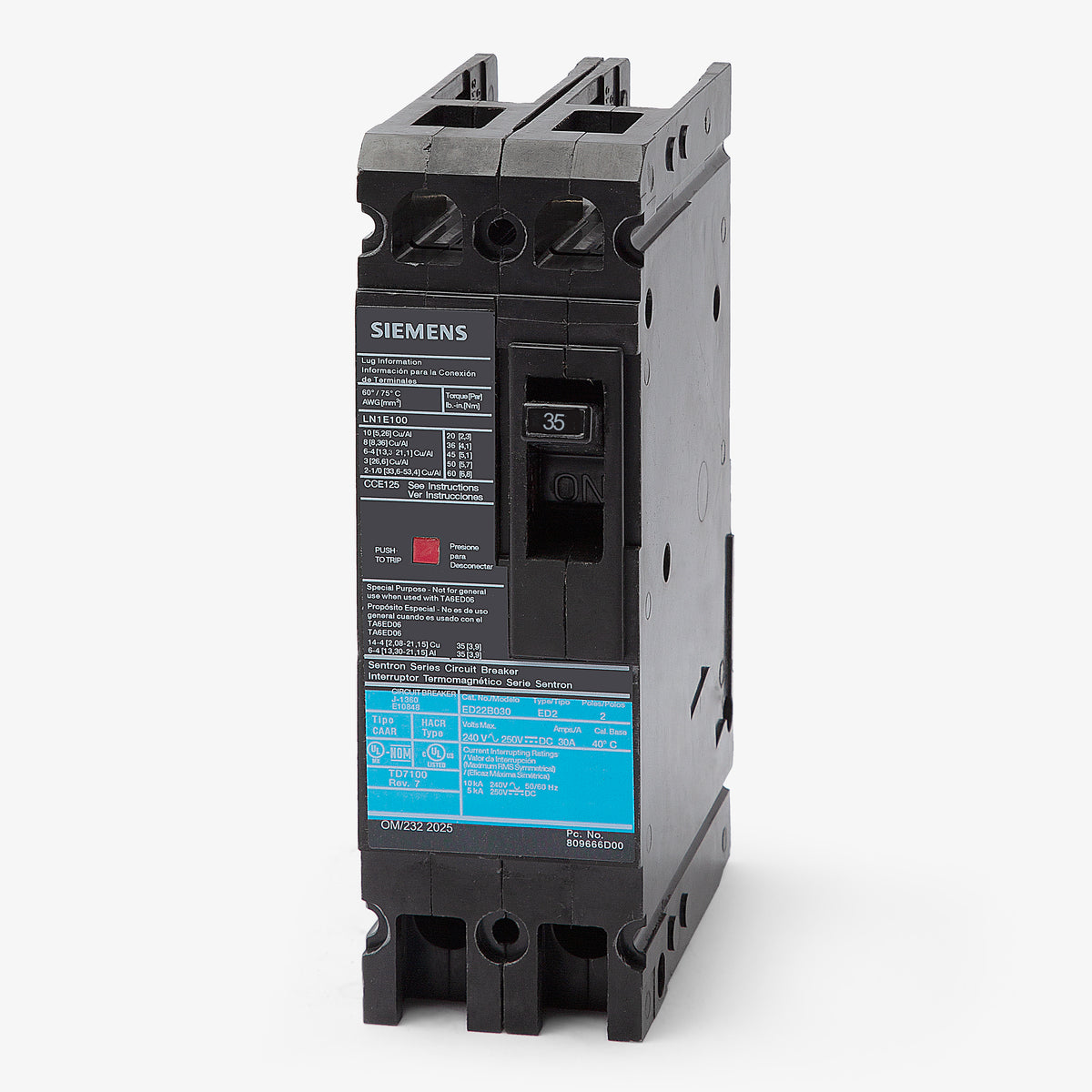

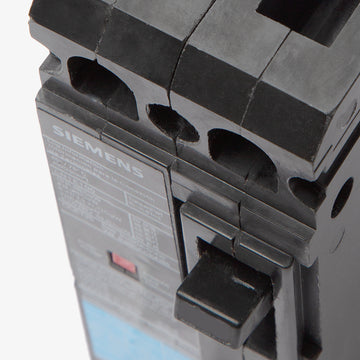

Siemens ED22B035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Siemens
ED22B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B035 |
| Series | ED2 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED22B035 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B035-R |
| Series | ED2 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens ED22B035 is a 35A, 2-pole molded case circuit breaker from the Sentron family. This bolt-on MCCB installs into Siemens P2, P3, and Sentron panelboards. It accepts 10-1/0 AWG wire via included load-side lugs. Rated for 10kAIC at 240VAC, it utilizes fixed thermal-magnetic trip technology for precise protection. The unit is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B035 |
| Series | ED2 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersCan I install the ED22B035 in a standard residential load center?
No. This is a bolt-on molded case circuit breaker designed for commercial and industrial applications. It is compatible with Siemens P2 and P3 panelboards, Sentron panelboards, and switchboards, rather than residential plug-on load centers.
Does the ED22B035 include terminal lugs, and what wire sizes are accepted?

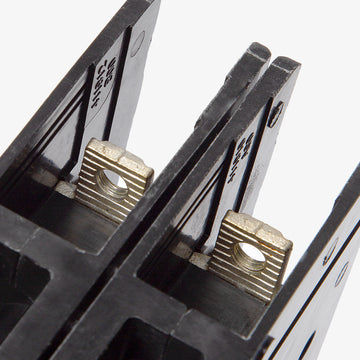

Yes, this breaker comes standard with lugs. The factory-installed lugs accept 10 AWG to 1/0 AWG copper or aluminum wire.
Is this breaker rated for direct current (DC) systems?
Yes, the ED22B035 carries a 250VDC rating with a 5kA interrupting capacity, making it suitable for specific DC applications in addition to its standard 240VAC rating.
How does the thermal-magnetic trip unit function on the ED22B035?
It features a fixed thermal element for long-time (L) overload protection and a fixed magnetic element for instantaneous (I) short-circuit protection. Neither the thermal nor the magnetic trip points are field-adjustable.
What is the difference between the ED22B035 and the ED22B035L?
There is no functional difference. The L suffix simply indicates that the breaker is supplied with factory-installed line and load lugs. The standard ED22B035 includes these lugs by default.
