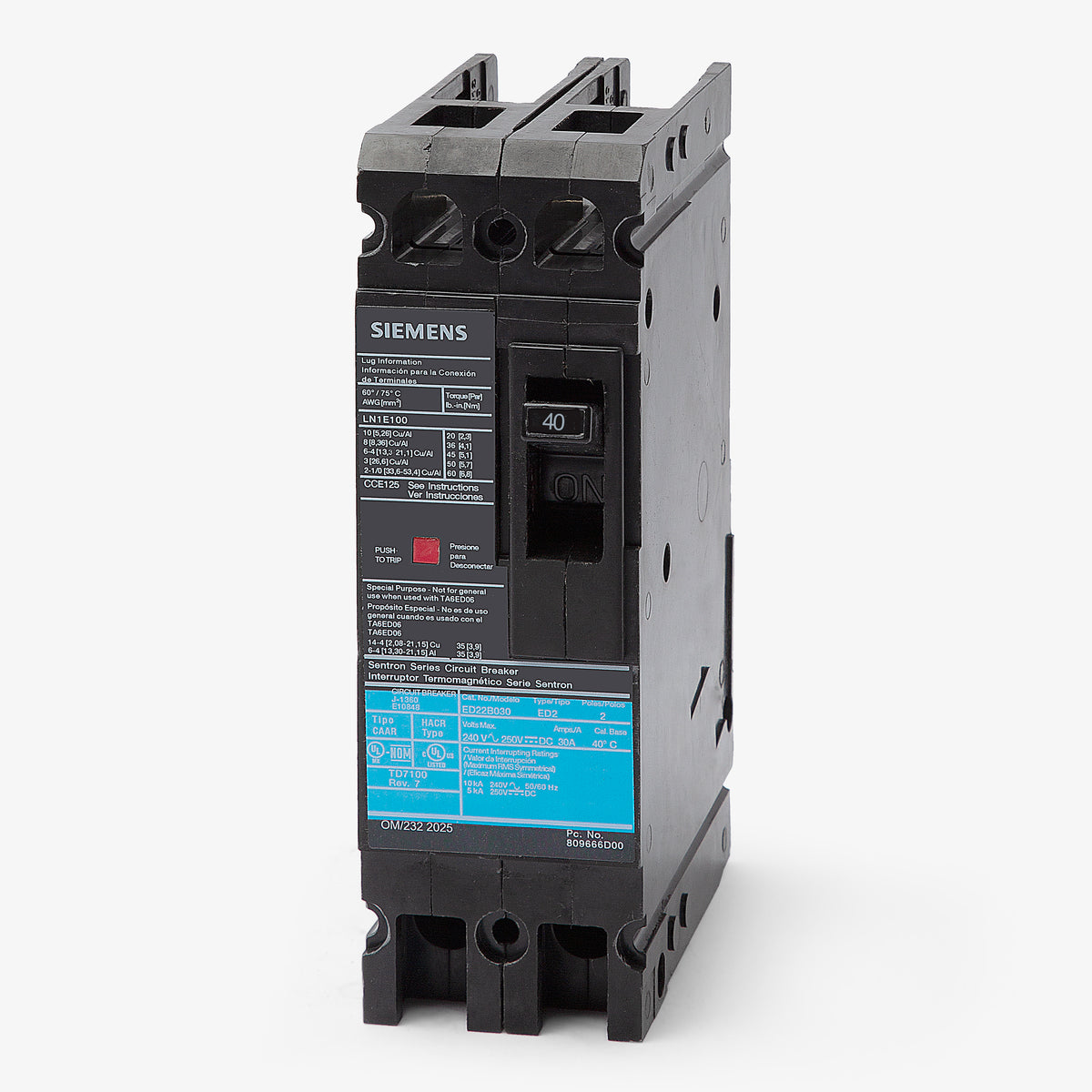

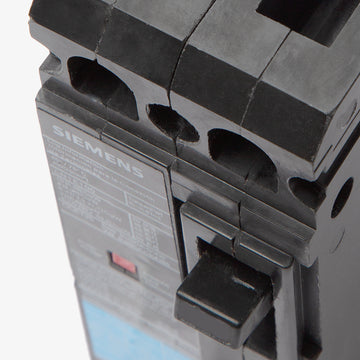

Siemens ED22B040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Siemens
ED22B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B040 |
| Series | ED2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED22B040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B040-R |
| Series | ED2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Designed to safeguard commercial systems, the Siemens ED22B040 is a 40A, 2-pole molded case circuit breaker from the Sentron ED2 family. This bolt-on breaker mounts into Siemens P1, P2, and P3 panelboards, plus SB switchboards. It features lugs for 10-1/0 AWG conductors. With a 10kAIC capacity at 240VAC, it delivers reliable long-time and instantaneous trip protection. The unit is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B040 |
| Series | ED2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the ED22B040 circuit breaker?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as SB switchboards.
How does the ED22B040 install into the panelboard?
It features a bolt-on connection, securing directly to the bus bars in compatible Siemens panelboards and switchboards.

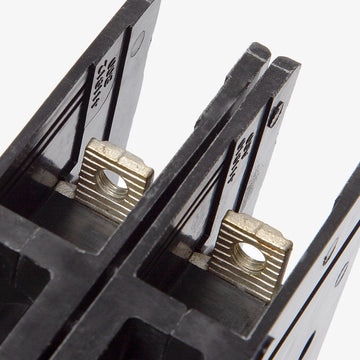

What wire sizes and materials are compatible with the lugs on this breaker?
The included lugs accept 10 AWG to 1/0 AWG wire and are rated for both copper and aluminum conductors.
Can the ED22B040 be used in DC applications?
Yes, in addition to its 240VAC rating, this breaker is rated for 250VDC with an interrupting capacity of 5kAIC.
Is the Siemens ED22B040 a direct replacement for older I-T-E breakers?
Yes, Siemens acquired I-T-E and retained the ED frame designation. The ED22B040 directly replaces the legacy I-T-E ED22B040.
How does the trip unit in the ED22B040 protect circuits?
It utilizes a fixed thermal magnetic trip unit, providing both long-time protection against overloads and instantaneous protection against short circuits.
