Siemens Q2100H - 100A 2 Pole Miniature Circuit Breaker

Brand Siemens
SKU Q2100H
5.0
Rated 5.0 out of 5 stars
1 Review
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

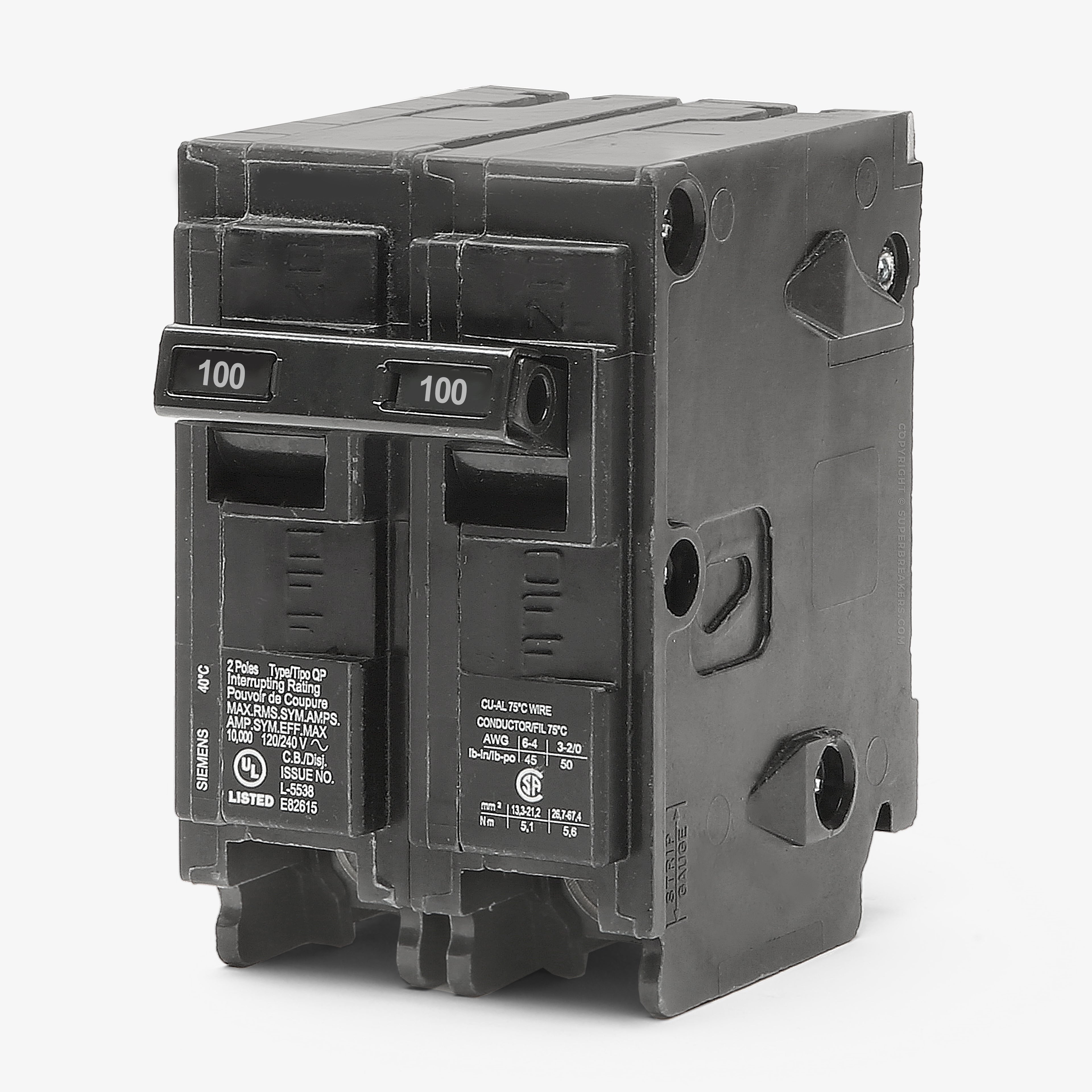

Siemens Q2100H - 100A 2 Pole Miniature Circuit Breaker

Brand Siemens
SKU Q2100H
5.0
Rated 5.0 out of 5 stars
1 Review
Select Item Condition
Earn 81 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens Q2100H - 100A 2 Pole Miniature Circuit Breaker

New

$81.20 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Providing enhanced short-circuit defense, this 100-amp Type QPH component serves applications requiring higher fault tolerances. The thermal-magnetic mechanism delivers reliable overload protection. Designed for broad compatibility, the unit installs into Siemens EQ, PL, ES, and Ultimate load centers. It also serves as a verified substitute for legacy Murray MP2100H components. With a 22kAIC rating at 120/240V, the device features common trip functionality and HACR certification.

Specifications

Brand Siemens
Series QPH
Part Number Q2100H
Amperage 100A
Voltage 120/240VAC
Poles 2
Phase 1
AIC Rating 22kA @ 120/240VAC
Mounting Style Plug-On

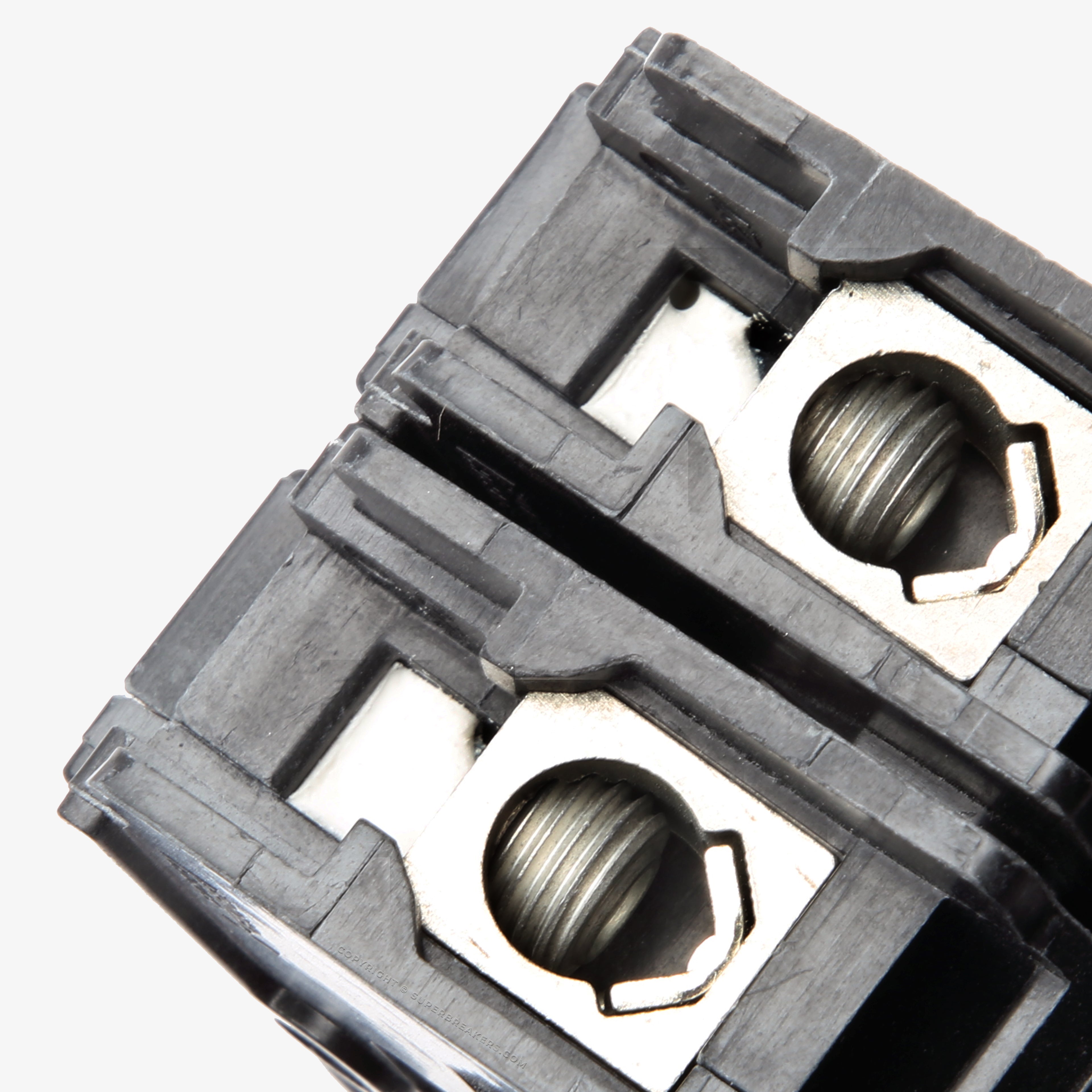

Terminal Type Lugs
For Use With Siemens Load Centers, Murray Load Centers, EQ Load Centers, PL Load Centers, ES Load Centers, Ultimate Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 8-2/0 AWG (Cu/Al)
Max Wire 2/0 AWG
Min Wire 8 AWG
Available Options Padlock Attachment
Standards CSA C22.2 No. 5, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features Common Trip, HACR Rated
