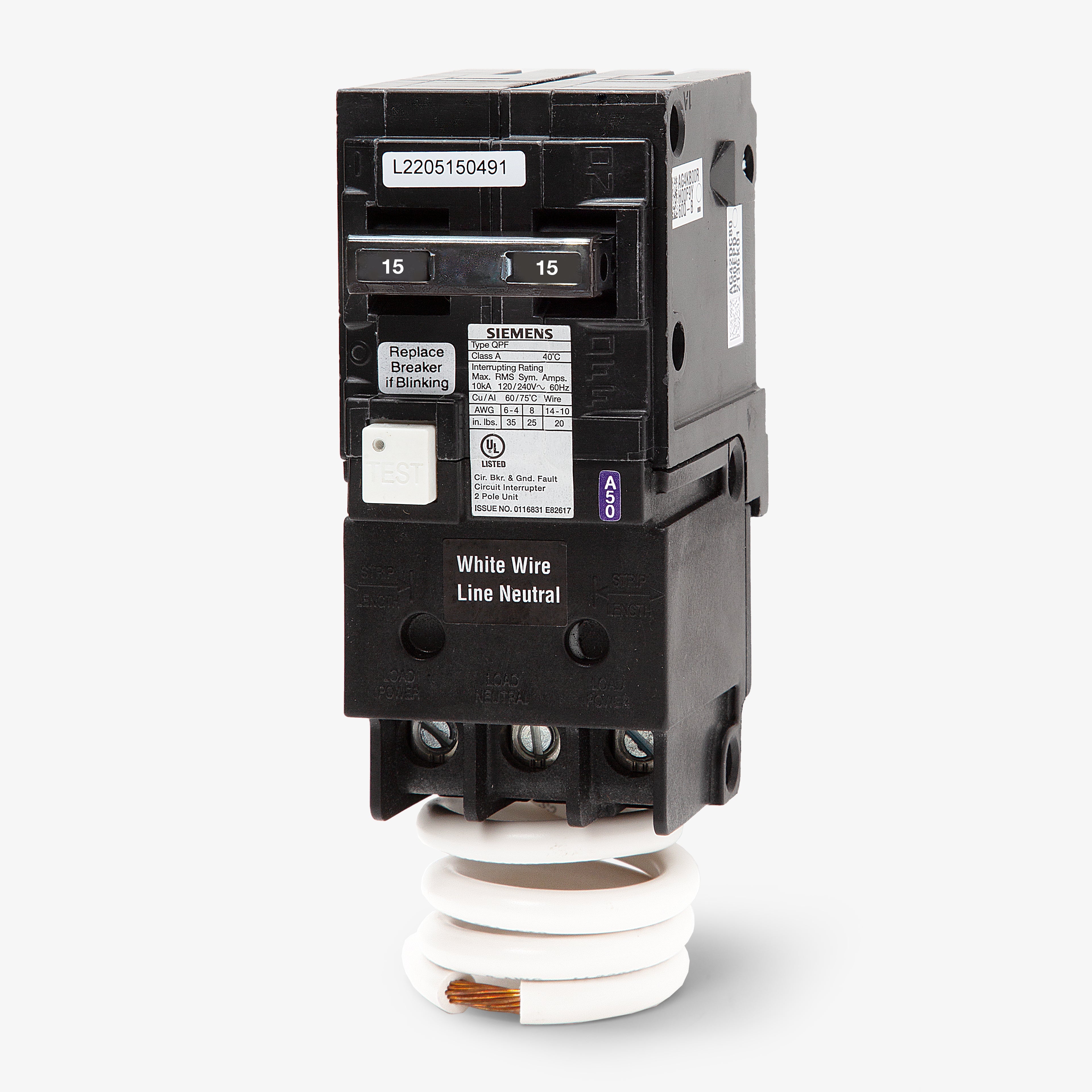

Engineered for wet and damp locations, the QF215 delivers Class A 5mA ground-fault protection for residential and commercial applications. This 2-pole 15-amp component mounts into Siemens EQ, ES, PL, and Ultimate load centers using a standard plug-on connection. Featuring a factory-installed pigtail neutral and common trip mechanism, it provides reliable personnel protection. Note that this specific model has been superseded by the Q215GF for newer installations.
Specifications
Brand
Siemens
Series
QF
Part Number
QF215
Amperage
15A
Voltage
120/240VAC
Poles
2
Phase
1
AIC Rating
10kA @ 120/240VAC
Special Classification
GFCI
Mounting Style
Plug-On
Terminal Type
Lugs
For Use With
Siemens EQ, ES, PL, Ultimate Load Centers
Trip Technology
Thermal Magnetic
Trip Function Code
LIG
Trip Function
Long-Time, Instantaneous, Ground Fault
Trip Adjustability
Fixed
Wire Gauge
14-10 AWG (Cu), 12-8 AWG (Al)
Max Wire
10 AWG (Cu), 8 AWG (Al)
Min Wire
14 AWG (Cu), 12 AWG (Al)
Available Options
Padlock Attachment
Accessories
Pigtail Neutral (Factory Installed)
Standards
CSA C22.2 No. 144, UL 489, UL 943
Approval
CSA, UL
Temp Rating
40C
Construction Features
HACR Rated, Common Trip
