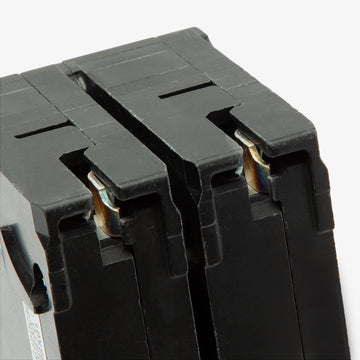

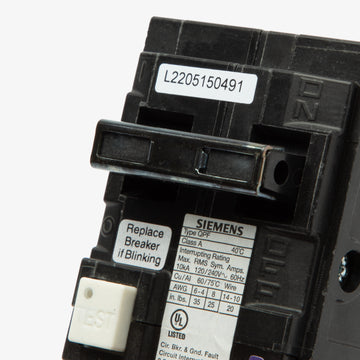

Siemens QF220 GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Siemens
QF220
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF220 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Siemens QF220 - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF220 |
| Series | QF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Self-Test, Common Trip, Insta-Wire |
Sold out
Quantity
Siemens QF220 - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QF220-R |
| Series | QF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Self-Test, Common Trip, Insta-Wire |
Similar Items
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Rated for 20 amps at 120/240VAC, the Siemens QF220 provides essential Class A 5mA ground-fault protection for residential and commercial spaces. It is specifically engineered to prevent electrical shock in areas prone to moisture, complying with strict NEC safety standards. The breaker installs into Siemens PL, ES, EQ, and Ultimate load centers via a simple plug-on mount. Equipped with a pigtail neutral and automated self-test functions, this model is replaced by the Q220GF.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF220 |
| Series | QF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Self-Test, Common Trip, Insta-Wire |
Product FAQs
7 answersCan the Siemens QF220 be installed in older Murray load centers?
Yes. Siemens manufactures Q-frame breakers as the direct, UL-listed replacements for legacy Murray MP-T and MP-GT series breakers.

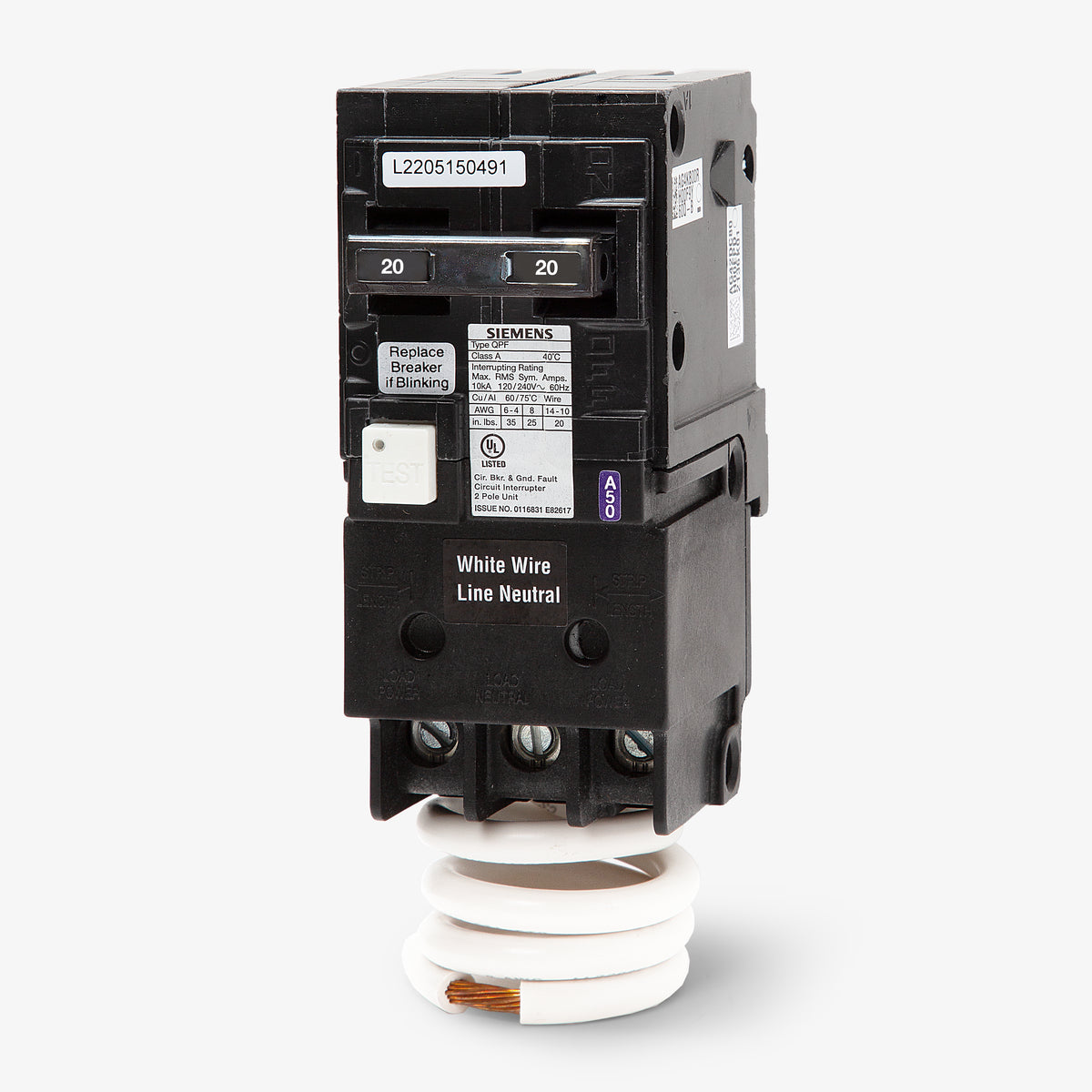

How is the neutral connected on the QF220?
This breaker features a pigtail neutral. The coiled white wire must be terminated at the panel neutral bar, while the load neutral wire connects directly to the breaker terminal.
What is the ground fault trip sensitivity for this breaker?
The QF220 is a Class A Ground Fault Circuit Interrupter (GFCI) designed to trip when it detects a ground fault current imbalance of 5mA.
What is the plug-on neutral equivalent for the QF220?
For Siemens plug-on neutral (PON) load centers, the equivalent 20A 2-pole GFCI breaker is catalog number Q220GFN or Q220GFNP.
Is this breaker HACR rated for motor loads?
Yes, the QF220 carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Does this breaker provide arc fault protection?
No. This is a GFCI-only breaker. It does not provide Arc Fault Circuit Interrupter (AFCI) protection.
Can the QF220 be used on a multi-wire branch circuit?
Yes. A 2-pole GFCI breaker can protect a 120/240V multi-wire branch circuit. The shared neutral from the circuit must be connected to the load neutral terminal on the breaker for the ground fault sensor to function correctly.
