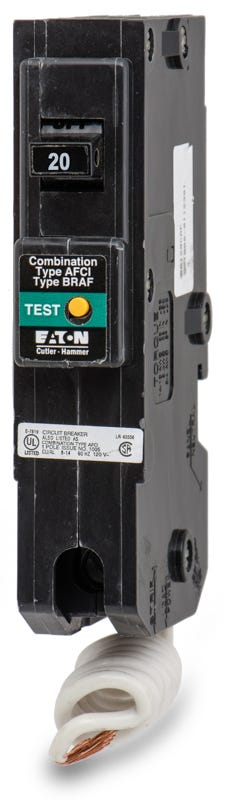

Eaton / Cutler-Hammer BR120CAFA AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR120CAFA
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR120CAFA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR120CAFA - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerBR120AFCS
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Part of the Fire-Guard series, the Eaton BR120CAFA delivers 20 amps of combination arc-fault protection to meet modern NEC residential safety requirements. This single-pole breaker operates at 120/240VAC with a 10kAIC interrupt rating and features a built-in pigtail neutral connection. Designed for compatibility with Eaton Type BR load centers, it serves as a reliable safeguard against arcing faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR120CAFA |
| Series | BR |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab, Quick-Make/Quick-Break, Self-Test |
Product FAQs
5 answersWhich electrical panels are compatible with the BR120CAFA breaker?
This breaker is designed exclusively for use in Eaton Type BR load centers. It is not compatible with Eaton CH series panels or other manufacturer load centers.
Does the BR120CAFA replace older BR120AF or BR120CAF breakers?
Yes. The BR120CAFA is a Combination Arc Fault Circuit Interrupter (CAFCI) that replaces older branch/feeder AFCI models like the BR120AF and BR120CAF, meeting updated National Electrical Code (NEC) requirements for arc fault protection.
How is the neutral wire connected on the BR120CAFA?
This breaker features a pigtail neutral connection. The coiled white wire attached to the breaker must be connected directly to the neutral bus bar in the panel, while the circuit neutral wire connects to the breaker itself.
What is the difference between a Combination Arc Fault (CAFA) and a standard AFCI breaker?
A Combination Arc Fault Circuit Interrupter (CAFCI) detects both parallel arcs (line-to-neutral or line-to-ground) and series arcs (loose connections within a single wire). Older branch/feeder AFCIs only detected parallel arcs.
Can I use the BR120CAFA on a multi-wire branch circuit with a shared neutral?
No. Standard single-pole pigtail AFCI breakers like the BR120CAFA cannot be used on shared neutral circuits, as this will cause nuisance tripping. A two-pole AFCI breaker is required for multi-wire branch circuits.
