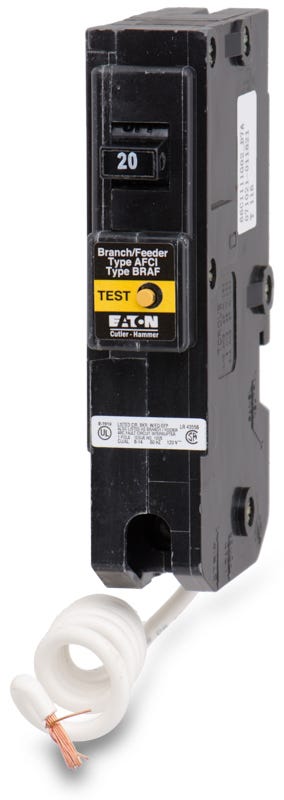

Eaton / Cutler-Hammer BR120AFCS AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR120AFCS
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR120AFCS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR120AFCS - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Engineered for residential safety, the Eaton BR120AFCS provides 20-amp branch/feeder arc-fault protection to mitigate electrical fire risks. This single-pole breaker features a pigtail neutral and thermal-magnetic trip technology for reliable overcurrent defense. It mounts into standard Type BR load centers, offering a straightforward plug-on connection. As a drop-in replacement for older BRN120AF models, it ensures seamless integration into existing panels.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR120AFCS |
| Series | BR |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersIs the BR120AFCS compatible with all Eaton load centers?
No, it is specifically designed for Eaton and Cutler-Hammer Type BR load centers. It will not fit in CH series or other manufacturer panels.
Can the BR120AFCS be used to replace older BRN120AF breakers?
Yes, this model serves as a direct drop-in replacement for older BRN120AF branch/feeder AFCI breakers in existing Type BR panels.
What does the "CS" suffix in the BR120AFCS part number mean?
The "CS" designates clamshell retail packaging. The breaker itself provides the exact same fit and function as the standard BR120AF model.
Does this breaker require a plug-on neutral load center?
No, the BR120AFCS features a pigtail neutral connection. The coiled white pigtail wire must be manually routed and terminated at the panel's neutral bus bar, making it compatible with standard (non-plug-on neutral) Type BR load centers.
What type of arc fault detection does this breaker provide?
The BR120AFCS is a branch/feeder AFCI. It is designed to detect parallel arcs to mitigate electrical fire risks, in addition to providing standard thermal-magnetic overload and short-circuit protection.
What wire sizes are accepted by the terminals on the BR120AFCS?
The box lugs accommodate copper or aluminum conductors ranging from 14 AWG up to 4 AWG, providing flexibility for various branch circuit wiring requirements.
