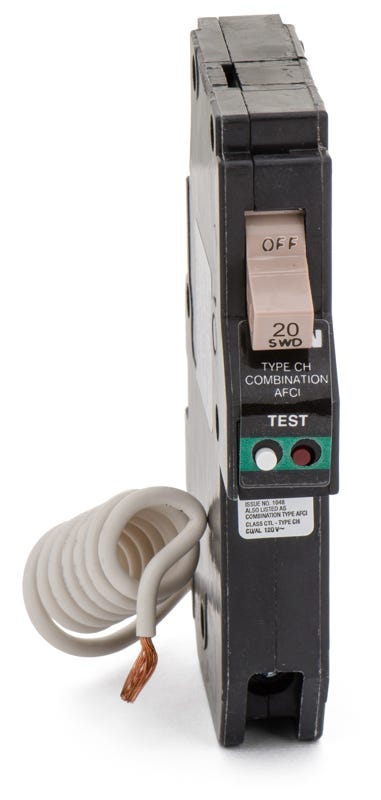

Eaton / Cutler-Hammer CHCAF120 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHCAF120
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHCAF120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHCAF120 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
Description
Built for residential safety, the Eaton CHCAF120 delivers combination arc-fault protection to mitigate electrical fire hazards. This 1-pole, 20A miniature circuit breaker installs into Type CH load centers and utilizes a standard pigtail neutral connection. Rated at 10 kAIC for 120/240V systems, it provides both long-time and instantaneous trip functions. Note that this legacy model has been replaced by the CHFCAF120, but remains a direct fit for existing CH panelboards requiring AFCI upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHCAF120 |
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Shunt Trip |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersWhich electrical panels are compatible with the CHCAF120?
This breaker is designed exclusively for Eaton Type CH load centers. It will not fit in Eaton BR panels or load centers from other manufacturers.
Does this breaker use a pigtail or plug-on neutral connection?
The CHCAF120 features a standard pigtail neutral. The coiled white wire must be connected directly to the neutral bus bar in your load center for the arc-fault protection to function properly.
How many wires can be terminated in the CHCAF120 box lug?
The box lug can accept either a single 14-8 AWG wire or two 14-10 AWG wires. Both copper and aluminum conductors are supported.
What type of arc-fault protection does the CHCAF120 provide?
This breaker is a combination arc-fault circuit interrupter (CAFCI). It is designed to detect and mitigate electrical fire hazards caused by both parallel and series arcing faults in residential wiring.
Is there a newer replacement model for the CHCAF120?
Yes, Eaton has updated this legacy model to the CHFCAF120. The newer CHFCAF120 serves as a direct replacement for existing CH panelboards requiring AFCI upgrades and includes LED diagnostic indicators to help troubleshoot trip codes.
What trip technology does the CHCAF120 utilize?
It uses thermal-magnetic trip technology, providing both long-time response for overloads and instantaneous response for short circuits.
