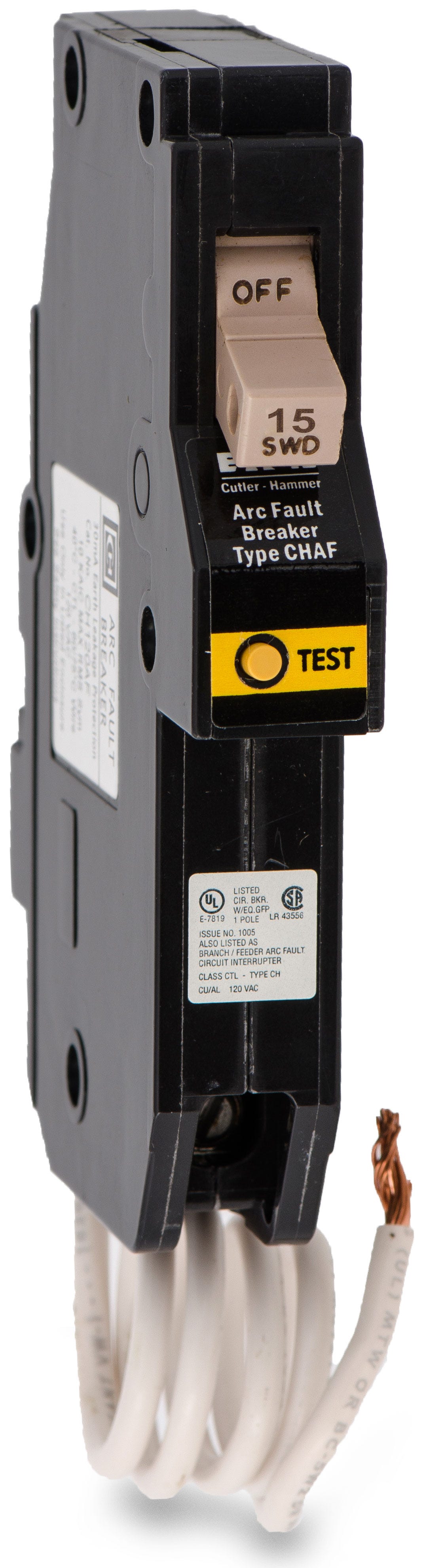

Eaton / Cutler-Hammer CH115AF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CH115AF
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH115AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115AF |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Handle Lock, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH115AF - 15A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115AF-R |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Handle Lock, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Similar Items
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFCAF115
15A AFCI Miniature Circuit Breaker
Description
Engineered to mitigate electrical fire risks, this 15-amp branch/feeder arc-fault interrupter monitors residential circuits for hazardous parallel arcs. It combines standard thermal-magnetic overload protection with specialized electronic sensing circuitry. Installation is straightforward into Eaton or Cutler-Hammer Type CH load centers utilizing a standard 3/4-inch plug-on footprint. The included pigtail wire connects to the panel neutral bar, while box lugs secure the branch conductors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115AF |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Handle Lock, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat panels accept the CH115AF circuit breaker?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It requires a 3/4-inch space and utilizes a plug-on mounting clip to connect to the busbar.
Is the CH115AF obsolete, and what is the recommended replacement?
Yes, the CH115AF is a discontinued branch/feeder AFCI. Eaton designates the CHFN115AF as the direct replacement, which upgrades the circuit to modern combination arc fault (CAFCI) protection. The CH115CAF is also a compatible combination AFCI alternative.
What level of arc fault protection does the CH115AF provide?
The CH115AF is a Branch/Feeder AFCI. It is engineered to detect parallel arcing faults, such as line-to-neutral or line-to-ground arcs. It does not include the series arc detection capabilities found in newer Combination AFCI models.
Does the CH115AF require a panel with a plug-on neutral bar?
No. This breaker is equipped with a pigtail neutral. The coiled white wire must be manually routed and terminated at the neutral bus bar, allowing it to be installed in older, non-plug-on neutral Type CH load centers.
Can the CH115AF be installed on a multi-wire branch circuit with a shared neutral?
No. Single-pole pigtail AFCI breakers like the CH115AF require a dedicated neutral for the circuit. Using it on a shared neutral will cause an imbalance in the return current, leading to immediate nuisance tripping. A two-pole AFCI is required for shared neutral applications.
