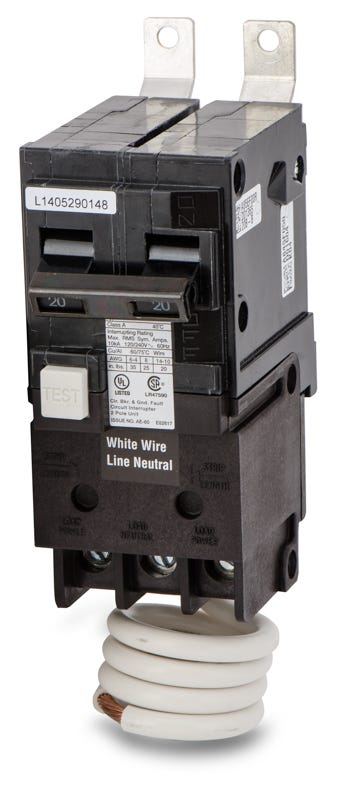

Siemens BF220 GFCI Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
BF220
GFCI Molded Case Circuit Breaker
Brand
Siemens
SKU
BF220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BF220 - 20A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BF220 - 20A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF220 |
| Series | BF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Siemens BF220 - 20A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BF220-R |
| Series | BF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
15A GFCI Molded Case Circuit Breaker
15A GFCI Molded Case Circuit Breaker
30A GFCI Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens BF220 delivers reliable 5mA Class A ground fault protection. This 2-pole, 20-amp breaker features a bolt-on mounting style designed specifically for Siemens P1, P2, and P3 panelboards. As an older generation GFCI, it has been superseded by the self-testing BF220A model but remains a viable exact-match replacement for existing installations requiring a 10kAIC interrupting rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BF220 |
| Series | BF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards accept the Siemens BF220 circuit breaker?
The BF220 is a bolt-on breaker engineered specifically for installation in Siemens P1, P2, and P3 panelboards.
What class of ground fault protection does the BF220 offer?
It provides Class A ground fault protection, meaning it is calibrated to trip at a 5mA threshold to protect personnel from severe electrical shock.
How does the BF220 connect to the panelboard neutral?
This GFCI breaker utilizes a pigtail neutral wire, which must be routed and secured to the panelboard neutral bus to enable the ground fault sensing circuitry.
What type of terminals are on the BF220 and what wire gauges do they accept?
The breaker is equipped with standard load lugs that accommodate 14-10 AWG copper or 12-10 AWG aluminum conductors.
Can I use the BF220A to replace a BF220?
Yes. The BF220 is an older generation GFCI, and the BF220A is its direct, exact-match replacement. The BF220A adds a self-test feature to comply with updated UL standards.
What does the LIG trip function code mean on the BF220?
The LIG designation indicates that this thermal-magnetic breaker provides Long-Time (thermal overload), Instantaneous (magnetic short-circuit), and Ground-Fault protection.
