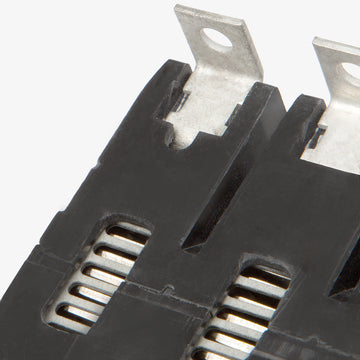

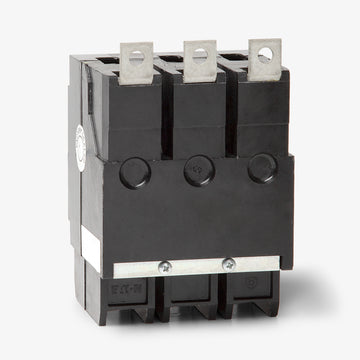

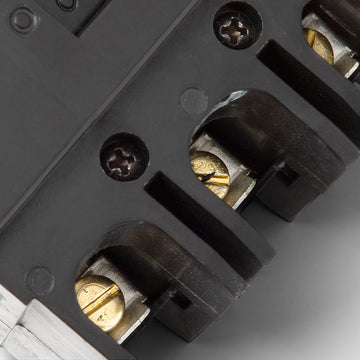

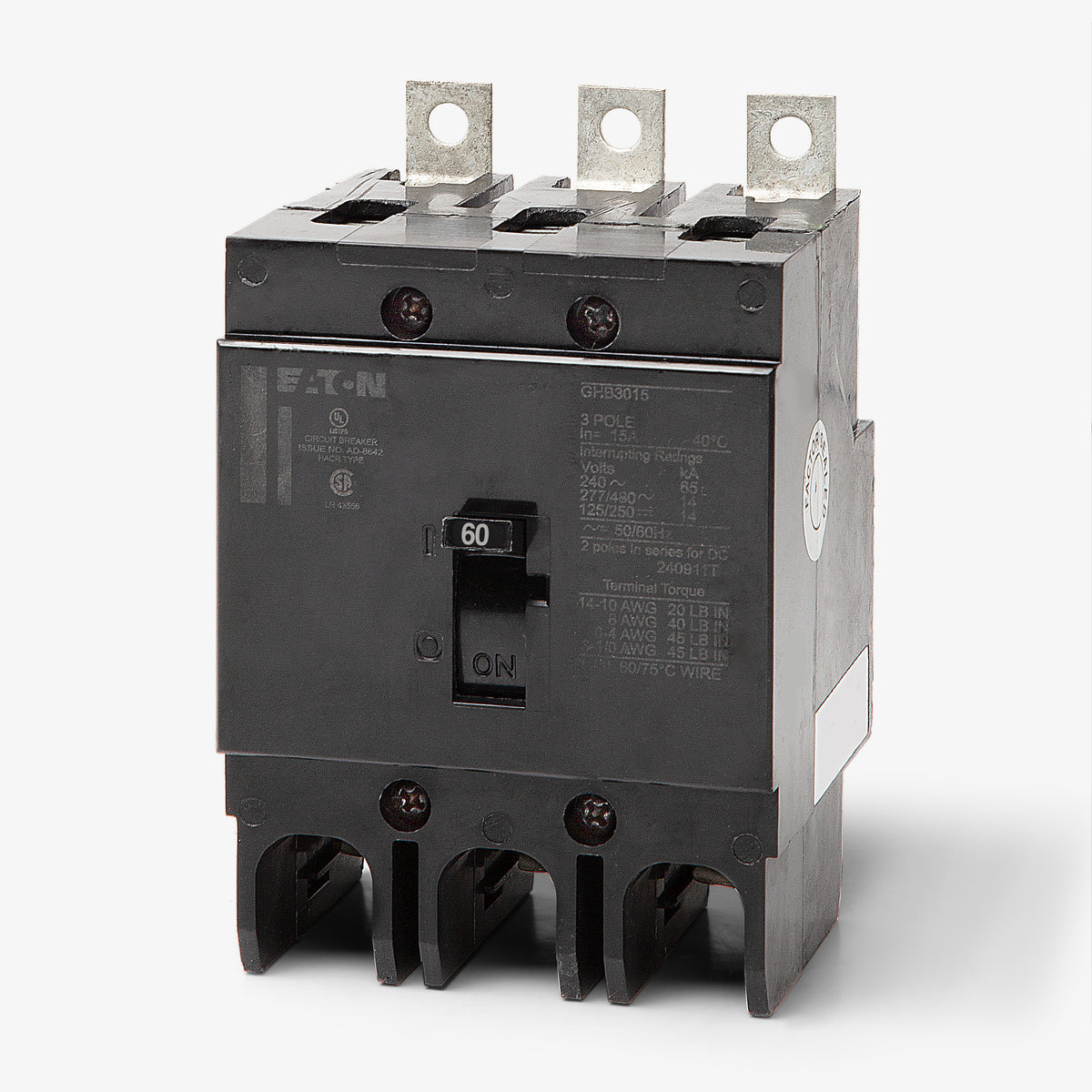

Eaton / Cutler-Hammer GHB3060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3060
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB3060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3060 |
| Series | GHB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB3060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3060-R |
| Series | GHB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3070S1
70A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Series C family, this 60-amp commercial device provides essential long-time and instantaneous trip functions. It serves industrial motor control and general facility distribution networks requiring robust fault handling. The bolt-on configuration mounts securely into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. It accepts #10 to 1/0 AWG copper or aluminum wiring through standard load side lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3060 |
| Series | GHB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan the Eaton GHB3060 replace an older Westinghouse or Cutler-Hammer GHB3060?
Yes. Eaton acquired the Westinghouse distribution equipment line and the Cutler-Hammer brand. A new Eaton GHB breaker is an exact drop-in replacement for vintage Westinghouse or Cutler-Hammer GHB breakers with the same specifications.
Which panelboards accept the GHB3060 circuit breaker?
This G-frame bolt-on breaker is designed for use in Eaton Pow-R-Line C, Pow-R-Line 2 (PRL2), and Pow-R-Line 3a (PRL3a) panelboards. It will also fit older legacy Westinghouse Series C panelboards that accept standard bolt-on G-frame breakers.
What does the 480Y/277V slash rating mean for this breaker?
A 480Y/277V slash rating indicates the breaker is only approved for solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It cannot be used on corner-grounded or ungrounded 480V delta systems, because single-pole fault clearing could expose the breaker to the full 480V phase-to-phase voltage.
What is the terminal torque requirement for the GHB3060?
According to Eaton specifications for G-frame breakers, the terminal screw torque depends on the wire size. For #10 AWG wire, torque to 20 lb-in. For #8 AWG, torque to 40 lb-in. For #6 to #4 AWG, torque to 45 lb-in. For #3 to 1/0 AWG, torque to 50 lb-in. Always verify with the breaker nameplate before final installation.
Is it safe to backfeed or reverse feed the GHB3060?
Yes, the GHB3060 is suitable for reverse feed applications. Because it uses fixed thermal-magnetic trip units and has no internal line or load directional restrictions, you can safely land the incoming supply power on either the top or bottom terminals.
Will a standard Eaton BR or CH breaker fit in place of a GHB?
No. Eaton BR and CH series are plug-on breakers intended for residential and light commercial loadcenters. The GHB is a bolt-on molded case circuit breaker specifically built for Pow-R-Line commercial and industrial panelboards. They have completely different bus mounting styles and are not interchangeable.
