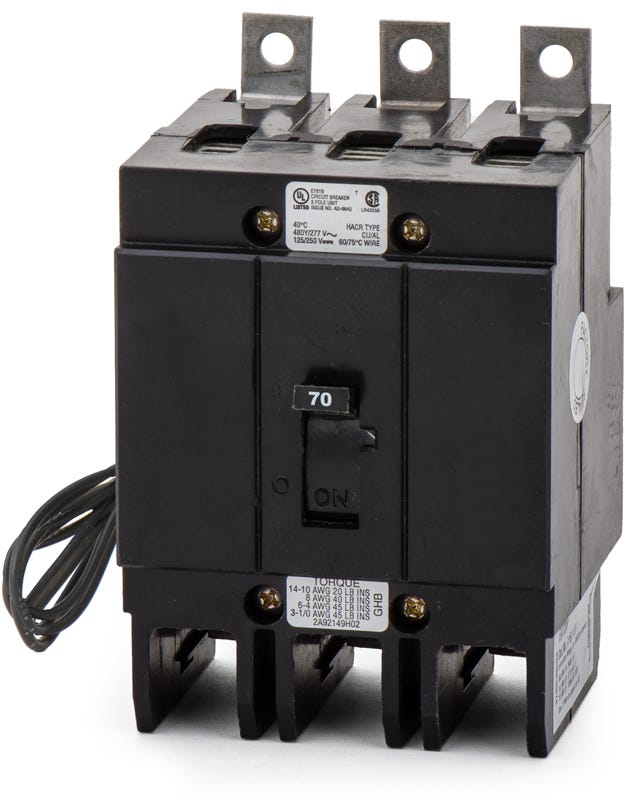

Eaton / Cutler-Hammer GHB3070S1 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3070S1
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3070S1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3070S1 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHB3060S1
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3090S1
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3050S1
50A 3 Pole Molded Case Circuit Breaker
Description
Designed with a factory-installed 120VAC shunt trip accessory, this 70-amp breaker enables remote tripping for emergency shutdowns or automated control. The bolt-on G-frame unit integrates seamlessly into Eaton Pow-R-Line panelboards and motor control centers. Rated for 14kAIC at 480Y/277VAC, it utilizes fixed thermal-magnetic protection elements. This HACR-rated component supports reverse feeding for flexible commercial installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3070S1 |
| Series | GHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the S1 suffix indicate on the GHB3070S1 catalog number?
The S1 suffix denotes a factory-installed 120VAC shunt trip with a rear left pigtail. This accessory allows the breaker to be opened remotely via a control signal for emergency shutdowns or automated processes.
What equipment is the GHB3070S1 breaker designed to fit?
This bolt-on G-Frame breaker installs into Eaton Pow-R-Line panelboards, Series C panelboards, switchboards, and motor control centers. It is not compatible with standard plug-on load centers.
How does the GHB3070S1 mount inside the panelboard?
It is a bolt-on circuit breaker that fastens directly to the panelboard bus using screws. This provides a highly secure, low-resistance connection ideal for commercial and industrial environments.
What are the wire gauge requirements for the terminals on this breaker?
The factory lugs accept copper or aluminum conductors ranging from 10 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation as outlined by the manufacturer.
Is the GHB3070S1 suitable for reverse-feed installations?
Yes, this thermal-magnetic breaker is rated for reverse-feed use. This allows it to be back-fed when used as a main breaker or in specific generator and solar applications.
Are the trip settings adjustable on this 70A breaker?
No, the GHB3070S1 features a fixed thermal and fixed magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are factory set and cannot be adjusted in the field.
Can this Eaton Series C breaker be used in direct current (DC) systems?
Yes, it carries a DC rating of 125/250VDC with a 14kA interrupting capacity, making it suitable for specific industrial DC control circuits and battery systems.
