Eaton JGS3225FAG 3 Pole Circuit Breaker

New

$1472.74 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

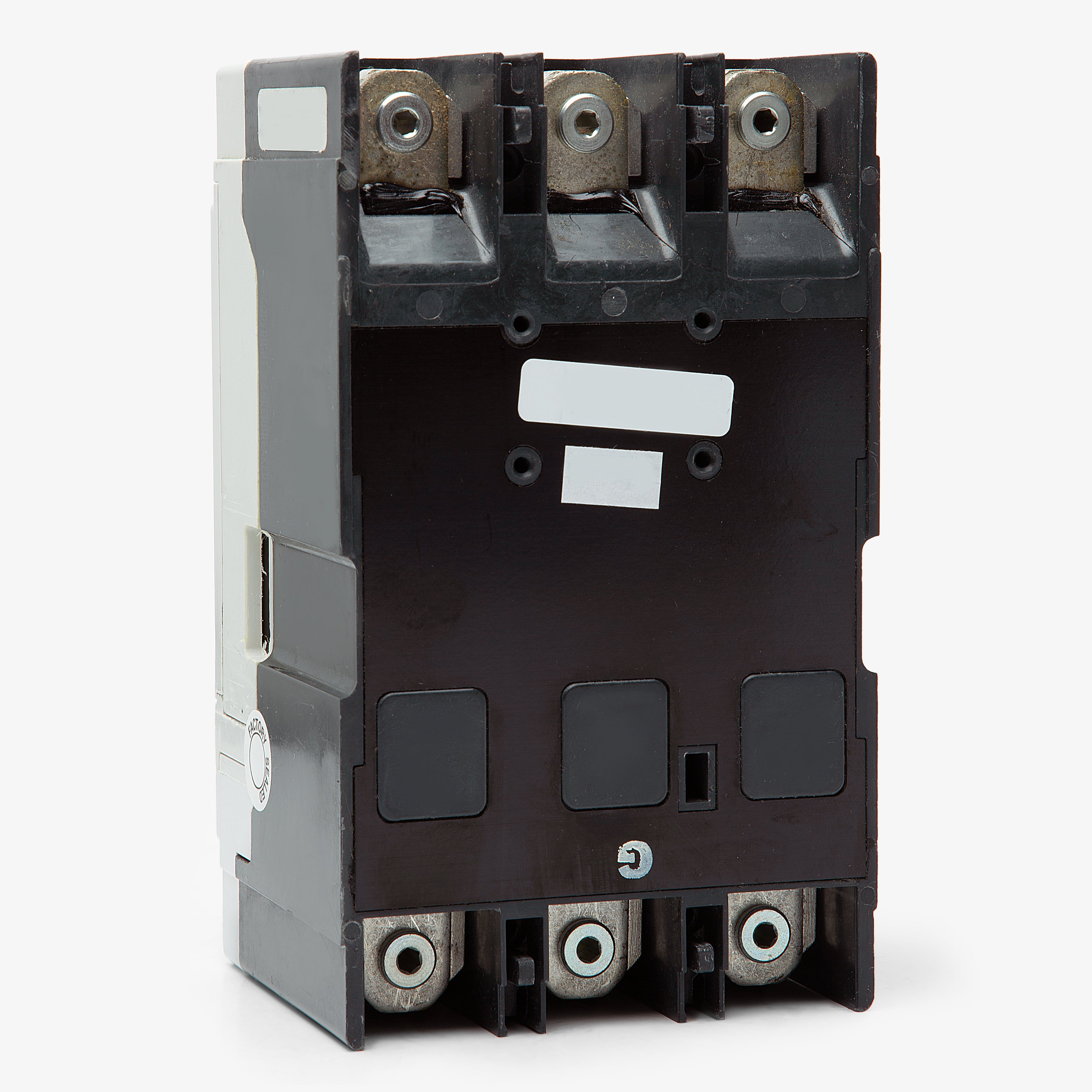

Eaton JGS3225FAG 3 Pole Circuit Breaker

Eaton/Cutler Hammer 3 Pole circuit breaker features a thermal magnetic molded case for extra protection. The circuit breaker has a current rating of 225 amps with a voltage rating of 600 v. It has an interrupt rating of 18 kAIC at 600 Vac, 40 kAIC at 415 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac.

Specifications:


Manufacturer: Eaton/Cutler Hammer
Cat. No: JGS3225FAG
Alternate Part No: JGS3225FAG
Product Type: Circuit Breaker
Trip Unit Type: Fixed Thermal and Adjustable Magnetic
Frame Type: JG
Frame: JG
Series: G
Type: JGS
Phase: 3
Pole: 3
Voltage Rating: 600 V
Amperage Rating: 225 A
Connection: Feed-Thru
Functions: LI - Long-Time and Instantaneous
Interrupt Rating: 18 kAIC at 600 Vac, 40 kAIC at 415 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac
Size: 4.13 Inch H x 4.13 Inch W x 3.57 Inch D

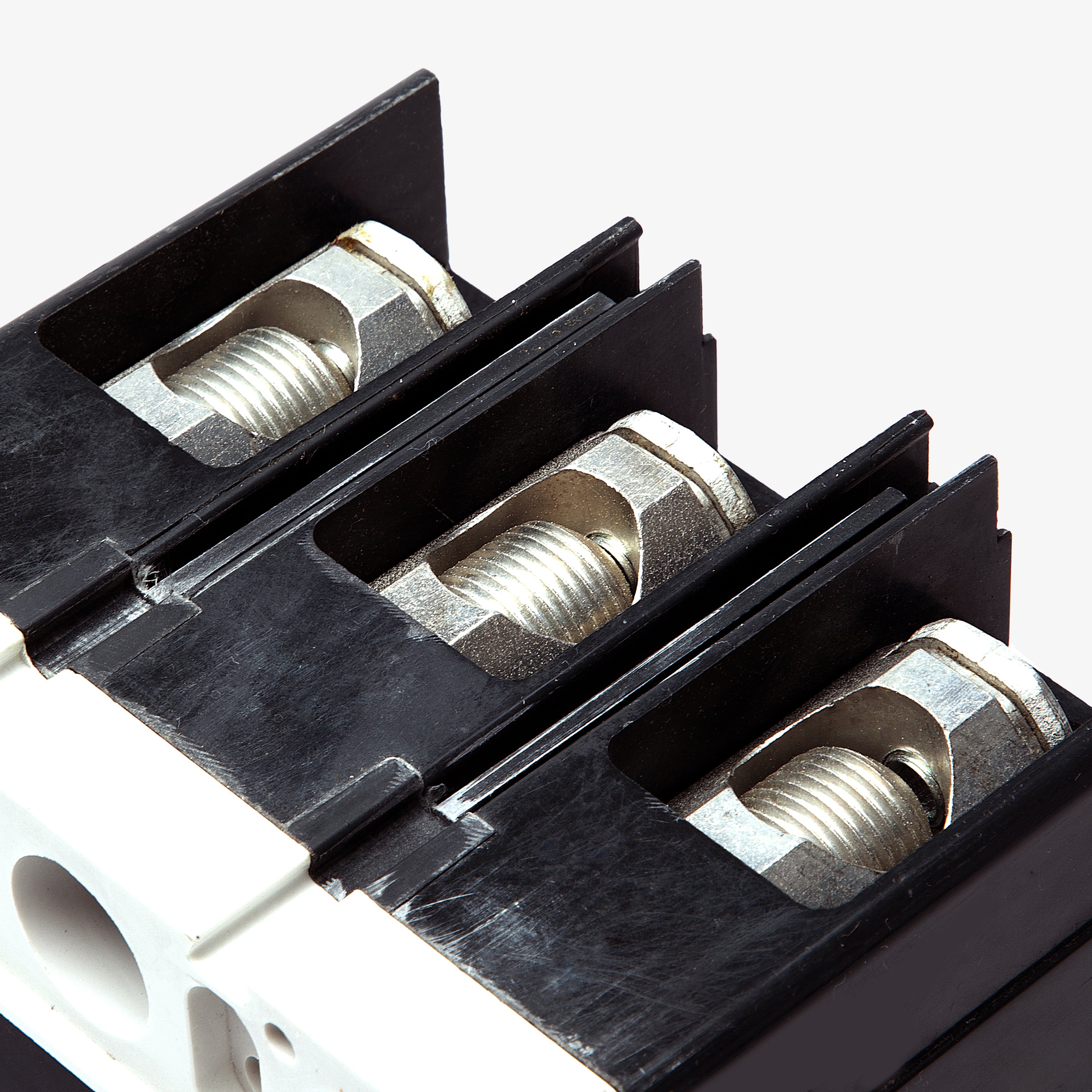

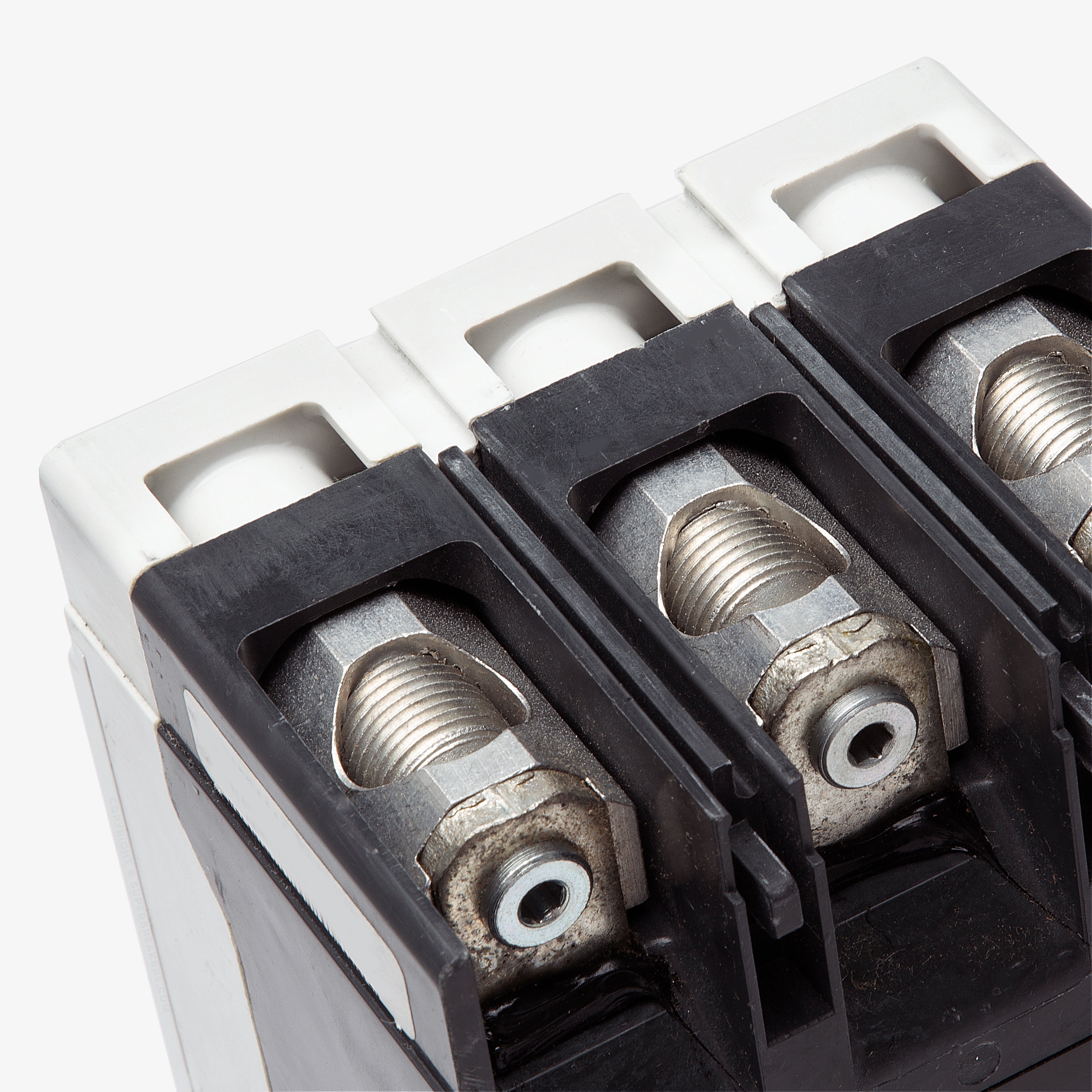

Terminals: Line and load
Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Actuator Type: Toggle
Circuit Breaker Type: JG
Mounting Type: Panel Mount
Approval: IEC, CSA, UL
Brand: Eaton [R]
Authentic Eaton/Cutler Hammer Product

Specifications

Brand Eaton
Series JGS
Amperage 225
Voltage 600
Poles 3
Phase 3
Mounting Type Panel Mount
Approval IEC, CSA, UL
Interrupting Rating 18 kAIC at 600 Vac, 40 kAIC at 415 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac
Frame Type JG
Connection Type Feed-Thru
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Line and load
Length (in) 3.57
Width (in) 4.13
Height (in) 4.13
Circuit Breaker Type JG
Actuator Type Toggle
Mpn JGS3225FAG
Upc 782113526812
Gtin 782113526812
