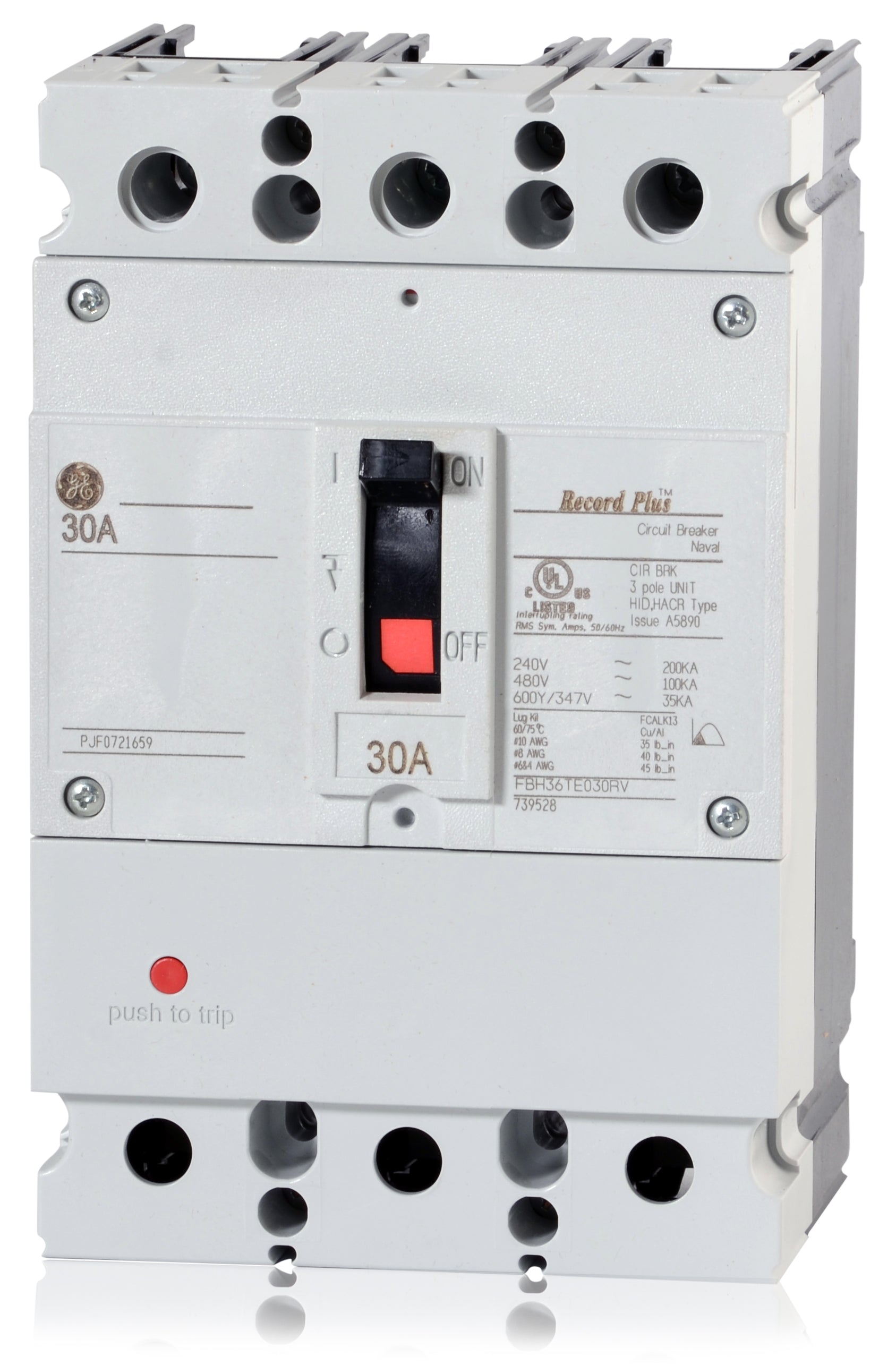

ABB / General Electric FBH36TE030RV Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE030RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE030RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBH36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBH36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE030RV |
| Series | FBH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Quantity
ABB / General Electric FBH36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Similar Items
ABB / General ElectricFBH36TE015RV
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE050RV
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE060RV
60A 3 Pole Molded Case Circuit Breaker
Description
Built for reliable power distribution, the GE FBH36TE030RV is a 3-pole, 30A bolt-on molded case circuit breaker belonging to the Record Plus FB100 series. It is designed to integrate with GE Type AD panelboards, coming complete with load side lugs and line side connectors. Featuring a fixed thermal magnetic trip unit, it delivers precise long-time and instantaneous (LI) protection. The current-limiting design ensures superior performance, offering a 100 kAIC interrupting rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE030RV |
| Series | FBH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Product FAQs
4 answersWhat does the RV suffix mean on this Record Plus breaker?
The RV suffix indicates the breaker is supplied with standard load lugs and specialized bolt-on line connections designed specifically for direct installation into General Electric Type AD panelboards.
Is the FBH36TE030RV suitable for reverse feed applications?
Yes, GE Record Plus FB frame molded case circuit breakers are UL listed as suitable for reverse feed installations.
Can internal accessories be added to the FBH36TE030RV?
Yes, Record Plus FB frame breakers accept common field-installable internal accessories, including auxiliary switches, shunt trips, undervoltage releases, and bell alarms.
Why is this breaker listed under both ABB and General Electric?
The Record Plus molded case circuit breaker product line was originally developed by General Electric. Following ABB's acquisition of GE Industrial Solutions in 2018, these breakers are now produced and supported by ABB.
