General Electric TEYL3070B 3 Pole Circuit Breaker

General Electric TEYL3070B 3 Pole Circuit Breaker

New

$760.20 In stock

Quantity

Description

General Electric TEYL3070B 3 Pole Circuit Breaker

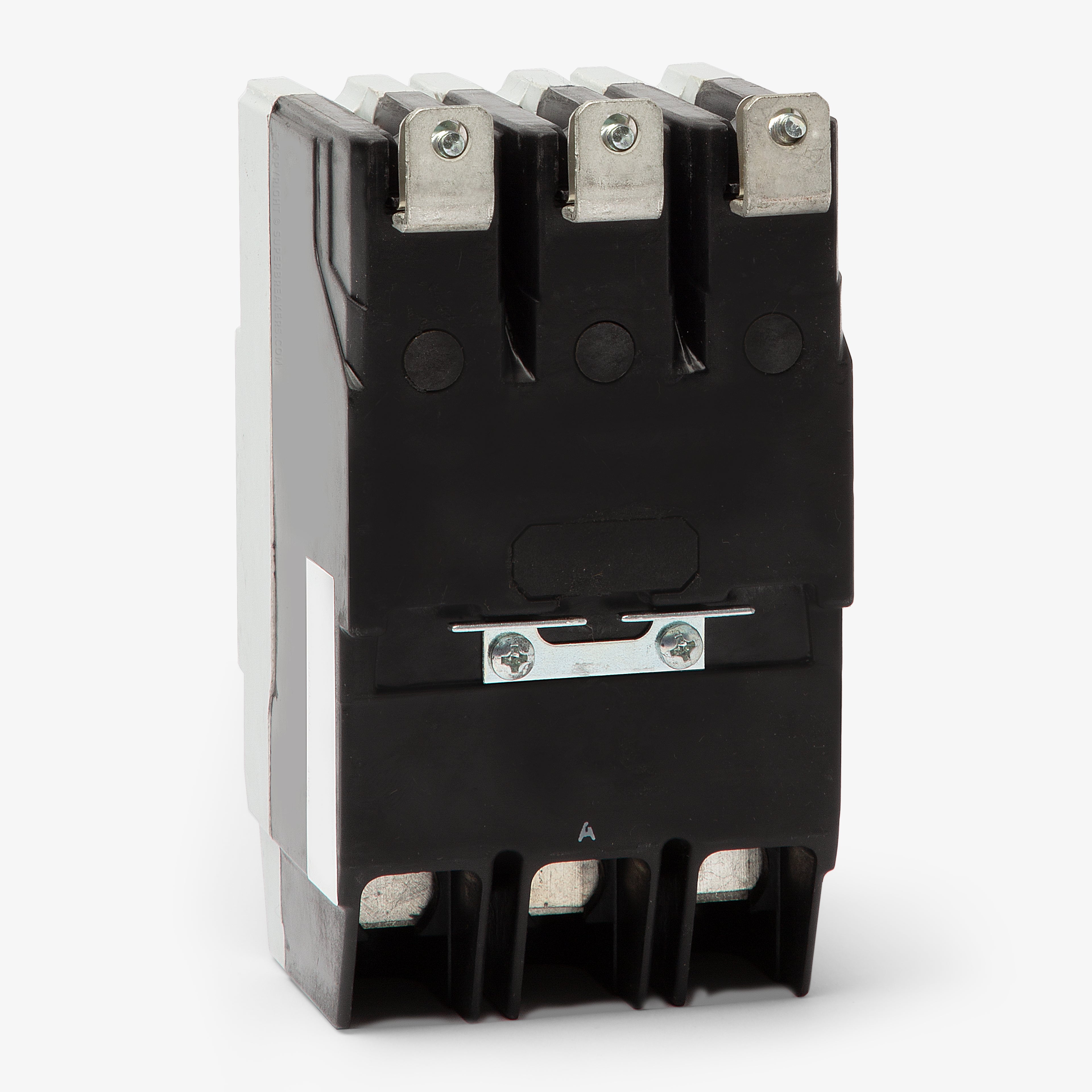

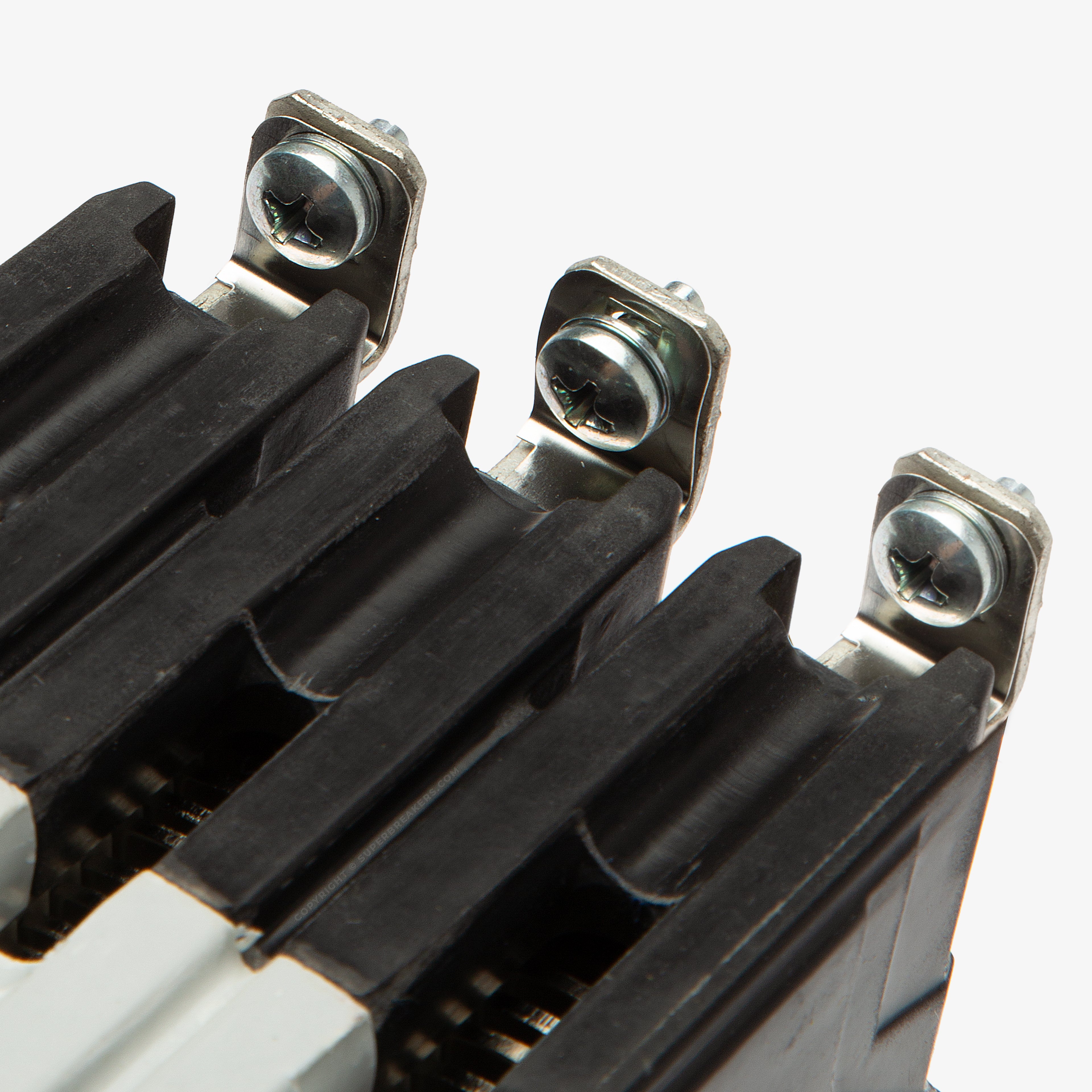

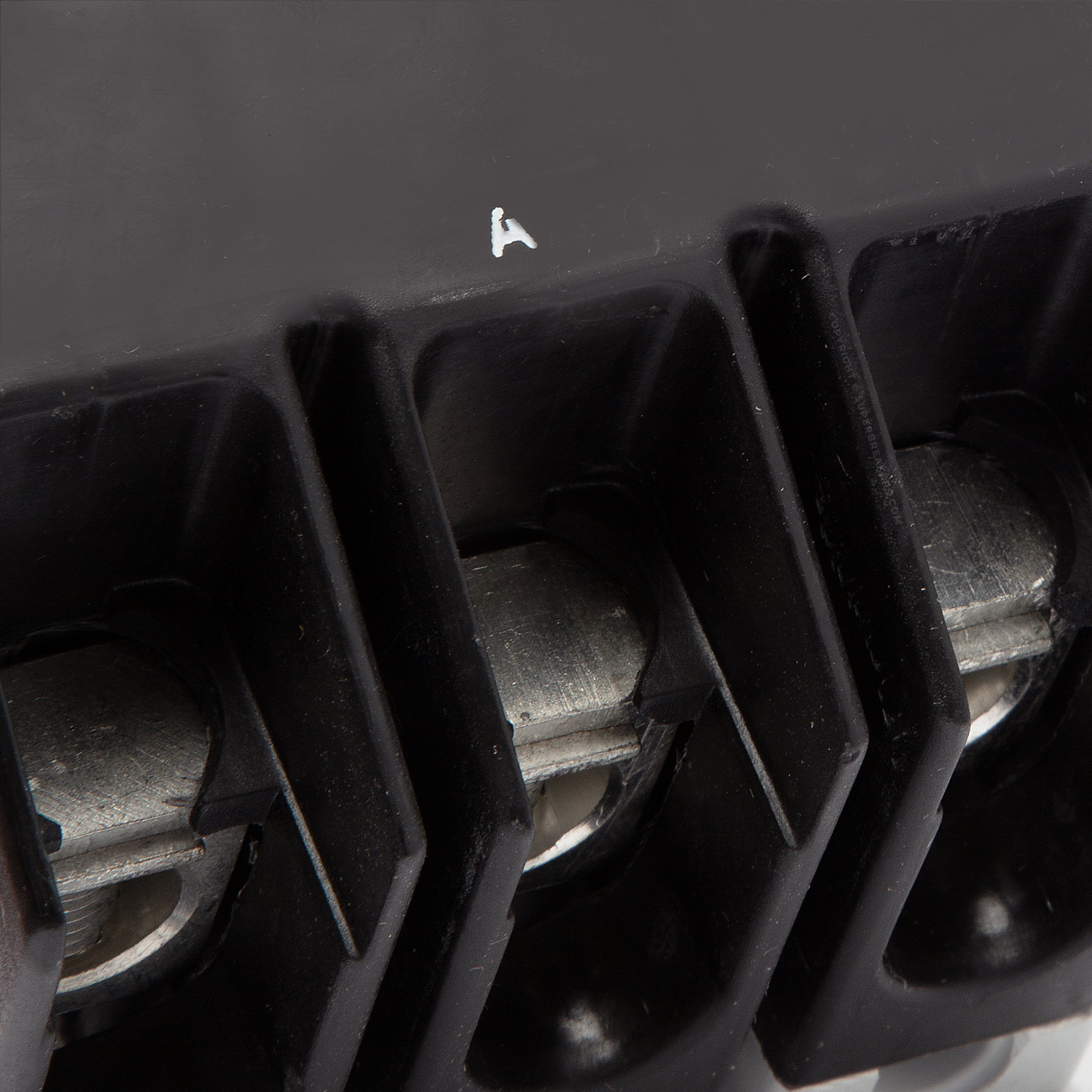

The New GE Industrial TEYL3070B Molded Case Circuit Breaker is a 3-Pole 3-Phase circuit breaker with load side lug terminal for bolt-on mounting. Suitable for reverse feed industrial applications this Type TEYL molded case circuit breaker features thermal magnetic non-interchangeable long-time and instantaneous trip unit which trips during short circuits. This one-inch wide per pole compact circuit breaker is designed with quick-make / quick-break mechanisms common trip bars and easy to spot trip indication for enhanced user safety. It has an interrupt current rating of 65-Kilo-Amps current rating of 70-Amps and voltage rating of 480/277-Volts AC. It works with 4-2/0-AWG copper/aluminum conductors and meets UL E11592 standards.

Specifications

Brand General Electric
Series TEYL
Amperage 70
Voltage 480 VAC
Poles 3
Phase 3
Mounting Type Bolt-On
Interrupting Rating 65kA
Frame Type TEYL
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Load Side Lug Terminal
Length (in) 3
Width (in) 3
Height (in) 5.20
Standards UL Listed, cUL Listed
Temperature Rating 40°C
Circuit Breaker Type Molded Case
Max Wire Size 2/0 AWG
Min Wire Size 4 AWG
Voltage Protection Rating 480V
Upc 783164462609
Gtin 783164462609
