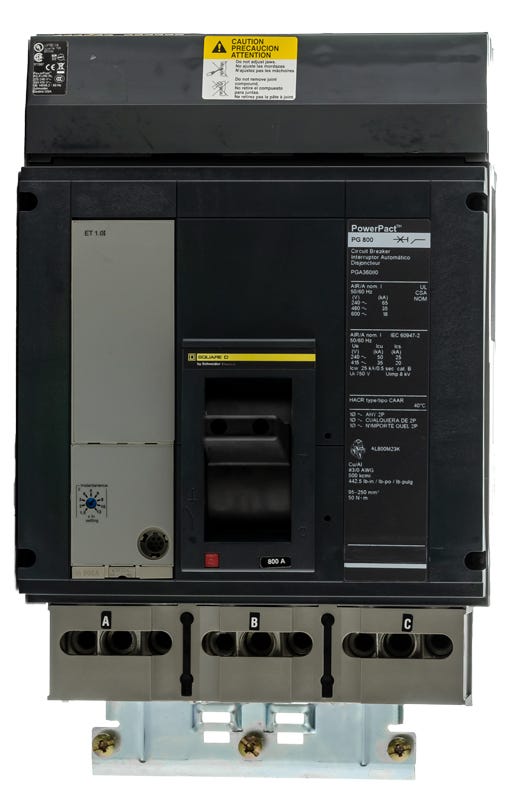

The Square D PGA36080 is a 3 Pole solid state molded case circuit breaker with a current rating of 800 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA@240VAC, 35kA@480VAC, 18kA@600VAC. The PGA36080 has a I-Line style plug-in connection type and includes LI - long time and instantaneous functions.
Specifications
Brand
Square D
Series
PGA
Amperage
800
Voltage
600
Poles
3
Phase
3
Mounting Type
I-Line
Approval
IEC, UL, CSA
Interrupting Rating
65KA@240VAC, 35KA@480VAC, 18KA@600VAC
Frame Type
PGA
Connection Type
I-Line Style Plug-In
Protection
Solid State
Functions
LI - Long-Time and Instantaneous
Length (in)
8.05
Width (in)
8.27
Height (in)
12.86
Wire Gauge
AWG 3/0, 500 kcmil Aluminium/Copper)3
Mpn
PGA36080
Upc
785901496991
Gtin
785901496991
