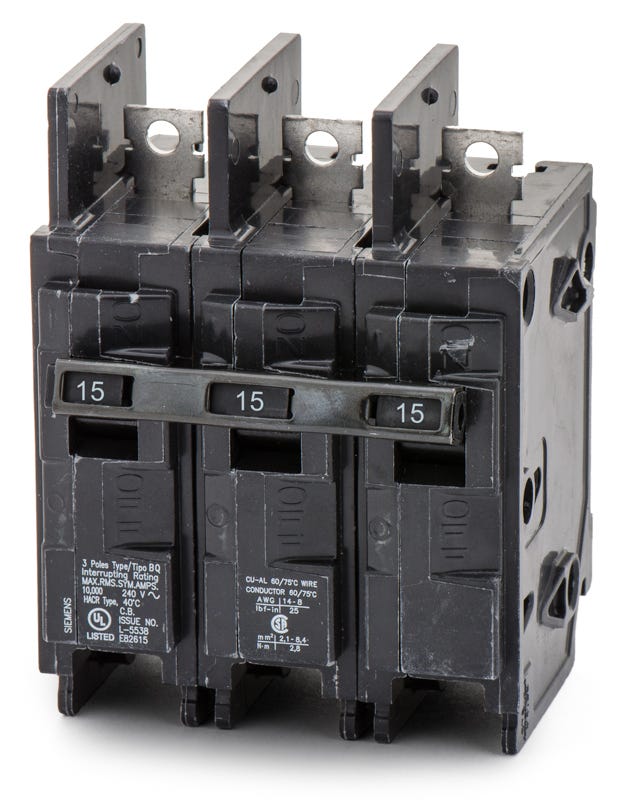

Siemens BQ3B015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
BQ3B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ3B015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015 |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ3B015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015-R |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Operating at 240VAC, the Siemens BQ3B015 is a 15A, 3-pole molded case circuit breaker for commercial use. It utilizes fixed thermal and magnetic trip elements to provide long-time and instantaneous protection across three-phase circuits. This BQ frame breaker mounts into Siemens P1, P2, and P3 panelboards using a bolt-on configuration. It includes load side lugs and crosses to BAB3015 and THQB32015 units. Carrying a HACR rating, it is certified to protect dedicated HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B015 |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens BQ3B015 circuit breaker?
The BQ3B015 is a bolt-on breaker designed for use in Siemens P1, P2, and P3 panelboards. It is not compatible with standard residential load centers that require plug-on EQ or QP style breakers.
Is there a higher interrupting rating version of the BQ3B015 available?
Yes. If your system requires a higher short-circuit rating than 10kAIC, you can use the BQ3B015H (rated at 22kAIC) or the HB3B015 (rated at 65kAIC). Both share the same physical footprint and bolt-on mounting style.
Can the Siemens BQ3B015 replace older ITE breakers?
Yes, Siemens acquired ITE, and the current BQ3B015 is the direct replacement for legacy ITE BQ3B015 breakers used in older ITE panelboards.
Is the Siemens BQ3B015 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection designation.
Does the BQ3B015 breaker come with load-side lugs?
Yes, Siemens BQ series bolt-on breakers are supplied with load-side lugs installed from the factory, ready to accept your branch circuit wiring.
Can the BQ3B015 be used on a 208Y/120V system?
Yes, while it has a maximum voltage rating of 240VAC, this 3-pole breaker can be safely applied on 208Y/120V or 240V three-phase systems.
