Siemens BQ3B01500S01 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
BQ3B01500S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B01500S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

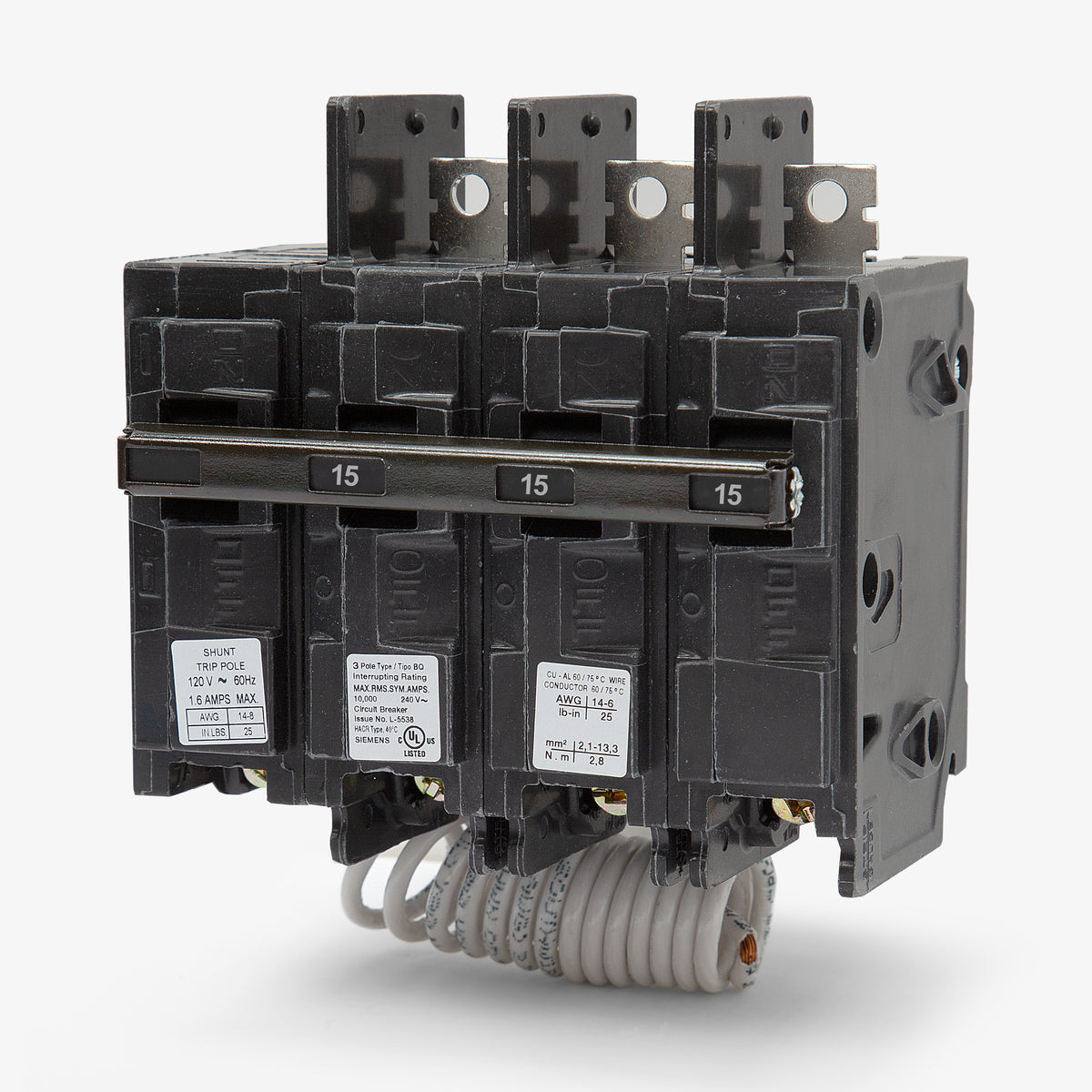

Siemens BQ3B01500S01 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens BQ3B01500S01 is a 3-pole molded case circuit breaker rated for 15 amps. It provides reliable thermal-magnetic protection. This bolt-on breaker installs into Siemens P1, P2, P3, and legacy ITE panelboards. It can substitute for BAB3015, THQB32015, and QOB315 breakers in compatible systems. Rated at 10kAIC at 240VAC, this unit features a factory-installed 120VAC shunt trip mechanism for remote disconnection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B01500S01 |
| Series | BQ |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Blocking Device |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens BQ3B01500S01 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as legacy ITE panelboards that accept BQ frame breakers.
Can I install this breaker in a standard residential load center?
No. The BQ3B01500S01 is a bolt-on circuit breaker designed specifically for commercial panelboards. It is not compatible with standard plug-on residential load centers.
What does the 00S01 suffix indicate on this circuit breaker?
The 00S01 suffix indicates that this breaker includes a factory-installed 120V AC shunt trip mechanism. This allows the breaker to be tripped remotely via a control circuit for emergency power-off or equipment interlocks.
Can the shunt trip mechanism be added or removed in the field?
No. The 120V AC shunt trip on the BQ3B01500S01 is factory-installed and cannot be added, removed, or modified in the field. If a standard breaker without a shunt trip is needed, a different catalog number must be used.
What wire sizes are accepted by the terminal lugs on this breaker?
The load side lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
Are the trip settings on the BQ3B01500S01 adjustable?
No. This thermal-magnetic breaker features fixed Long-Time and Instantaneous (LI) trip functions. The thermal and magnetic trip points are set at the factory and cannot be adjusted in the field.
Can this breaker replace older ITE versions?
Yes. Siemens acquired ITE, and this breaker serves as a direct replacement for legacy ITE BQ3B01500S01 circuit breakers used in older ITE panelboards.
