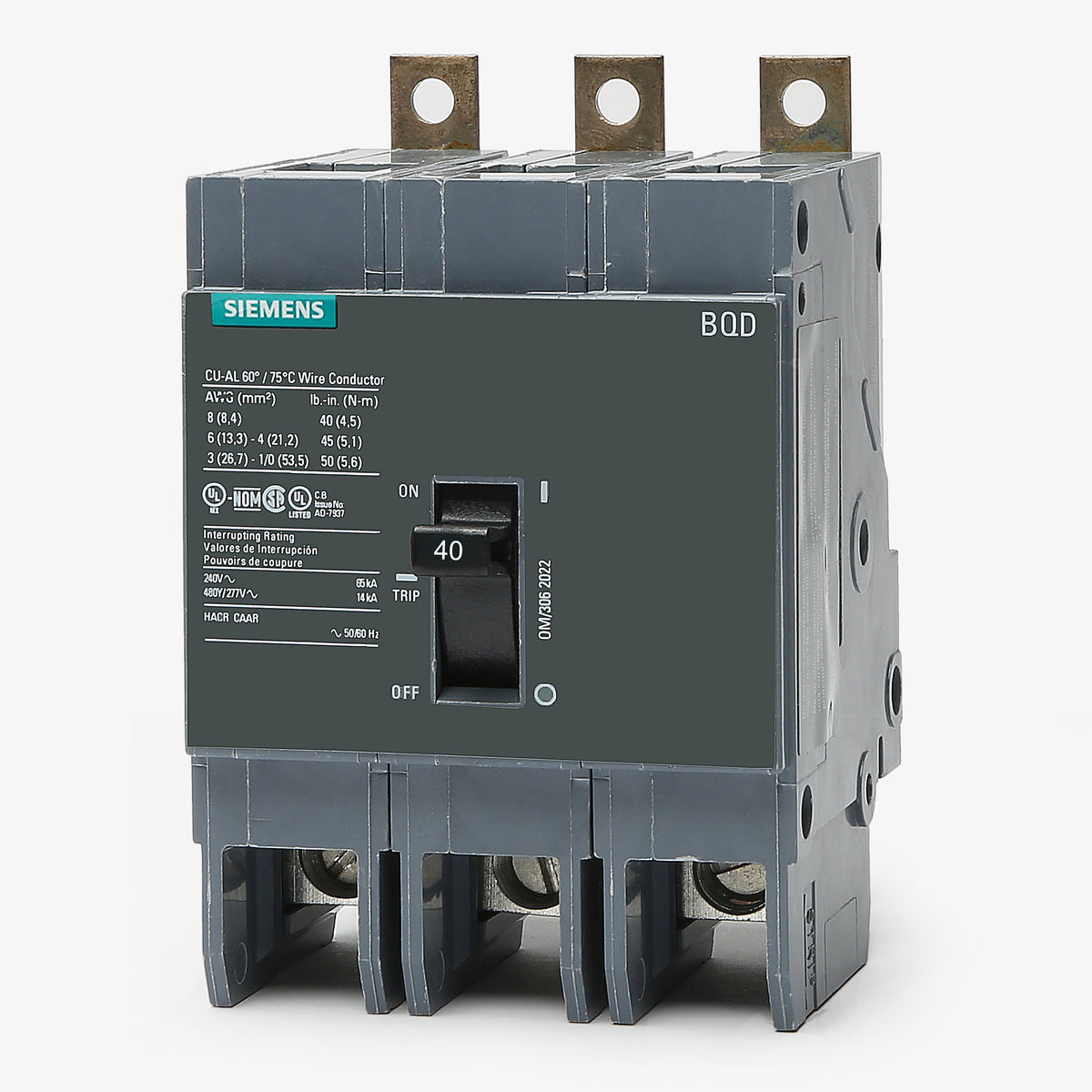

Siemens BQD340 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens
BQD340
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD340
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD340 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD340 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD340 |
| Series | BQD |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|

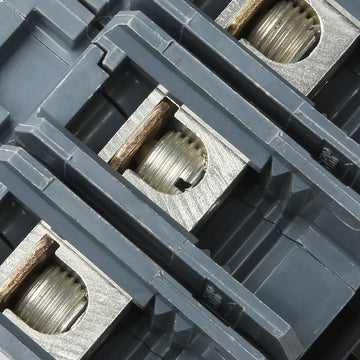

| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens BQD340 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD340-R |
| Series | BQD |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens BQD340 is a 3-pole, 40A molded case circuit breaker from the SENTRON family. This unit features a bolt-on mounting style, making it compatible with Siemens P1, P2, P3, P4, and P5 panelboards. It includes load side lugs and a non-interchangeable trip unit. Rated for 65kAIC at 240VAC and 14kAIC at 480Y/277VAC, it delivers reliable long-time and instantaneous (LI) protection. The breaker is HACR and HID rated for versatile application.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD340 |
| Series | BQD |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersCan I use the Siemens BQD340 to replace a CQD340 circuit breaker?
No. While they share identical electrical specifications, trip characteristics, and frame size, they have different mounting configurations. The BQD340 is a bolt-on breaker intended for Siemens panelboards, whereas the CQD340 is a DIN rail or surface-mounted breaker typically used in OEM enclosures or control panels.
What Siemens panelboards are compatible with the BQD340?
The BQD340 is designed exclusively for bolt-on installation in Siemens Sentron P1, P2, P3, P4, and P5 series panelboards. It connects directly to the panelboard bus bars to distribute power to branch circuits.
Can the Siemens BQD340 be installed on a 480V Delta or grounded B-phase system?
No. The BQD340 carries a 480/277V AC slash rating. Under National Electrical Code (NEC) guidelines, slash-rated breakers are only permitted on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It is explicitly not suitable for 480V Delta, ungrounded, or grounded B-phase systems.
Does the Siemens BQD340 feature an adjustable trip unit?
No, it features a fixed thermal-magnetic trip unit. Both the long-time (thermal overload) and instantaneous (magnetic short-circuit) trip points are calibrated at the factory and cannot be field-adjusted.
Is the Siemens BQD340 suitable for reverse-feed applications?
Yes. Like most Siemens BQD-frame thermal-magnetic circuit breakers, the BQD340 is rated for reverse feeding. It can be back-fed without affecting its internal protective trip functions.
Is the BQD340 circuit breaker HACR rated?
Yes, all Siemens BQD circuit breakers from 15A to 100A, including the BQD340, carry an HACR rating. This makes it approved for use with heating, air conditioning, and refrigeration equipment.
Is there a lockout-tagout padlock accessory available for the BQD340?
Yes, the Siemens BQDPLD is the authorized padlock device for the BQD frame. It allows the breaker handle to be securely locked in the OFF position for safe maintenance and compliance with lockout-tagout safety procedures.
