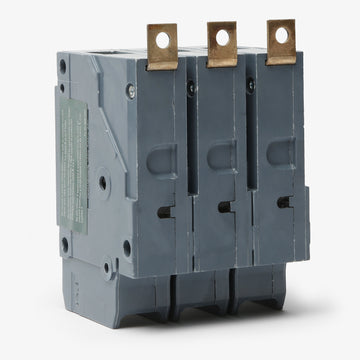

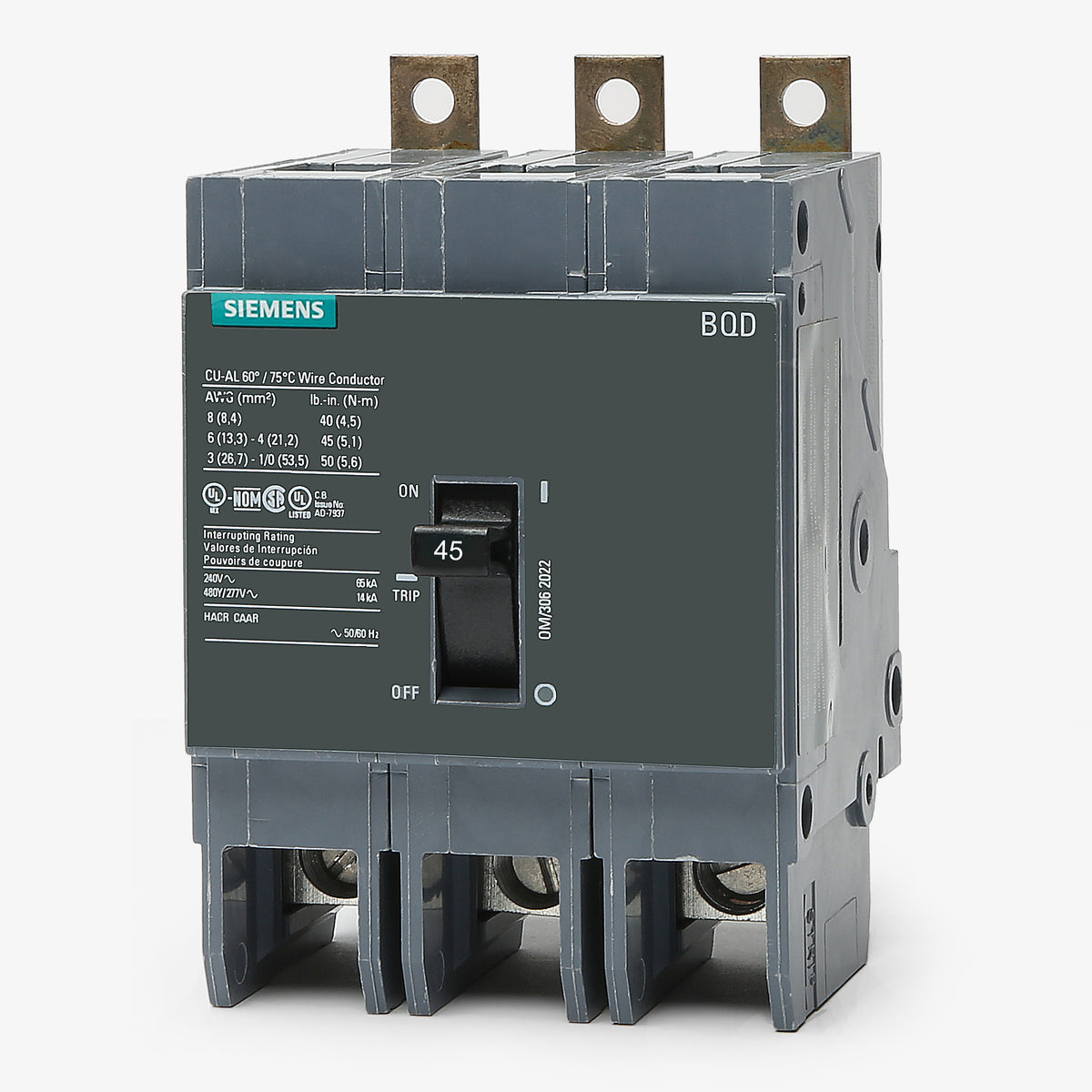

Siemens BQD345 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Siemens
BQD345
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD345
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD345 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD345 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD345 |
| Series | BQD |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens BQD345 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD345-R |
| Series | BQD |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens BQD345 is a 3-pole, 45-amp molded case circuit breaker from the SENTRON family. It provides thermal-magnetic protection for demanding electrical distribution systems. This bolt-on breaker installs into Siemens P1, P2, P3, P4, and P5 panelboards. The standardized BQD frame allows for seamless integration into existing setups. Rated for 65kAIC at 240VAC and 14kAIC at 480Y/277VAC, it features a non-interchangeable trip unit and an HACR rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD345 |
| Series | BQD |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards accept the Siemens BQD345?
This bolt-on circuit breaker is designed specifically for Siemens Sentron series panelboards, including the P1, P2, P3, P4, and P5 models.

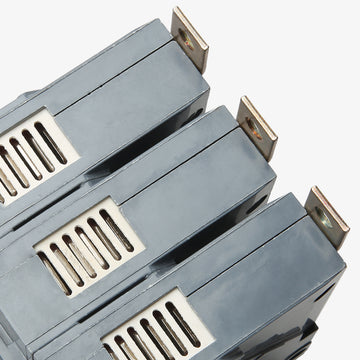

How does the BQD345 connect to the line side power source?
It mounts directly to the panelboard busbar using an integrated line-side bus tab. The load side utilizes standard terminal lugs for wire connections.

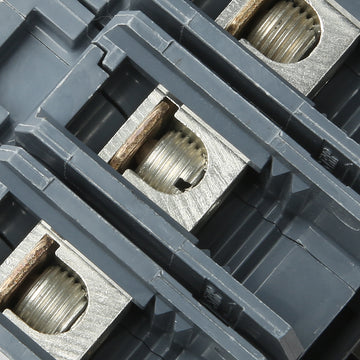

What wire sizes are accepted by the load side terminal lugs?
The load lugs accommodate 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
Is this circuit breaker rated for use in DC systems?
Yes, the BQD345 is rated for DC applications up to 125/250VDC with a 14kA interrupting capacity.
Can the thermal and magnetic trip thresholds be field adjusted?
No, the breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous protection limits are factory set and cannot be modified.
Is the Siemens BQD345 suitable for HVAC equipment protection?
Yes, the BQD frame is HACR rated, making it fully compliant for use with heating, air conditioning, and refrigeration applications.
Can this circuit breaker be reverse fed?
Yes, BQD frame molded case circuit breakers do not have line and load orientation restrictions and are listed for reverse feed applications.
Will a CQD series breaker fit in place of the BQD345 in a panelboard?
No. While electrically similar, the mounting configurations differ. BQD breakers feature a bus tab for direct panelboard mounting, whereas CQD breakers have lugs on both ends for DIN rail or surface mount applications.
