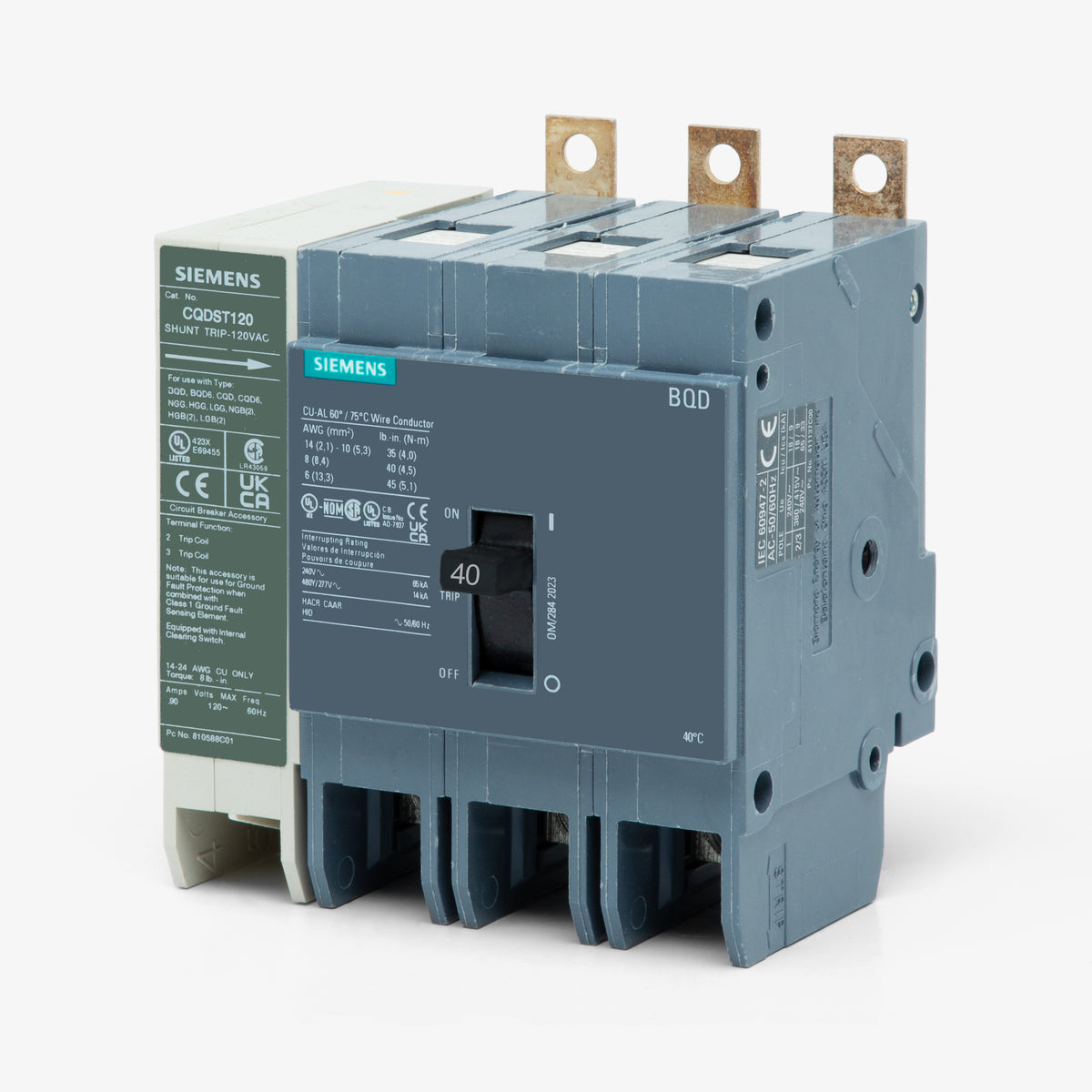

Siemens BQD34000S01 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens
BQD34000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD34000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD34000S01 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for advanced control, the Siemens BQD34000S01 is a 3-pole, 40A commercial circuit breaker featuring a factory-installed 120VAC shunt trip for remote disconnect applications. It mounts securely into Siemens P1, P2, P3, P4, and P5 panelboards using a standard bolt-on connection. The breaker utilizes a non-interchangeable thermal magnetic trip mechanism. Delivering 65kAIC at 240VAC and 14kAIC at 480Y/277VAC, it ensures robust LI protection. It is HACR and HID rated for lighting loads.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the "S01" suffix mean on the Siemens BQD34000S01?
The S01 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely for emergency power-off or equipment interlock applications. It cannot be added in the field.
Can the BQD34000S01 be installed in standard residential load centers?
No, this is a commercial bolt-on circuit breaker designed specifically for Siemens P1, P2, P3, P4, and P5 panelboards. It will not fit in standard plug-on load centers.
What does the 480/277VAC rating mean for the BQD34000S01?
The 480/277VAC slash rating indicates this breaker is intended for use on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V and the line-to-line voltage does not exceed 480V. It is not suitable for ungrounded or corner-grounded delta 480V systems.

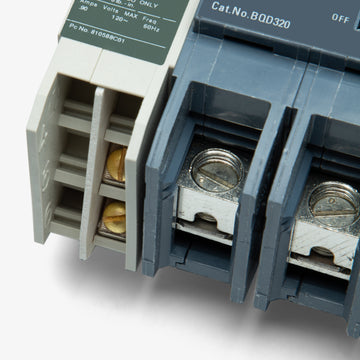

How is the 120VAC shunt trip wired on the BQD34000S01?
The factory-installed shunt trip comes with wire leads that exit the side of the breaker. These leads must be connected to your 120VAC control circuit to enable remote tripping. The internal coil includes a cut-off switch that automatically opens the circuit once the breaker trips.
Does the shunt trip on the BQD34000S01 require continuous power?
No, the shunt trip coil is designed for momentary voltage only. Applying continuous 120VAC power is not required and can damage the coil if the internal cut-off switch fails. It should be wired to a momentary contact switch, such as an emergency stop button.
