Siemens NGG3B045L 3 Pole Circuit Breaker

Brand Siemens
SKU NGG3B045L
(0 Reviews)
Siemens NGG3B045L 3 Pole Circuit Breaker
Siemens NGG3B045L 3 Pole Circuit Breaker

Siemens NGG3B045L 3 Pole Circuit Breaker

Brand Siemens
SKU NGG3B045L
(0 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 447 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
Siemens NGG3B045L 3 Pole Circuit Breaker

Siemens NGG3B045L 3 Pole Circuit Breaker

New

$447.96 In stock

Quantity

Description

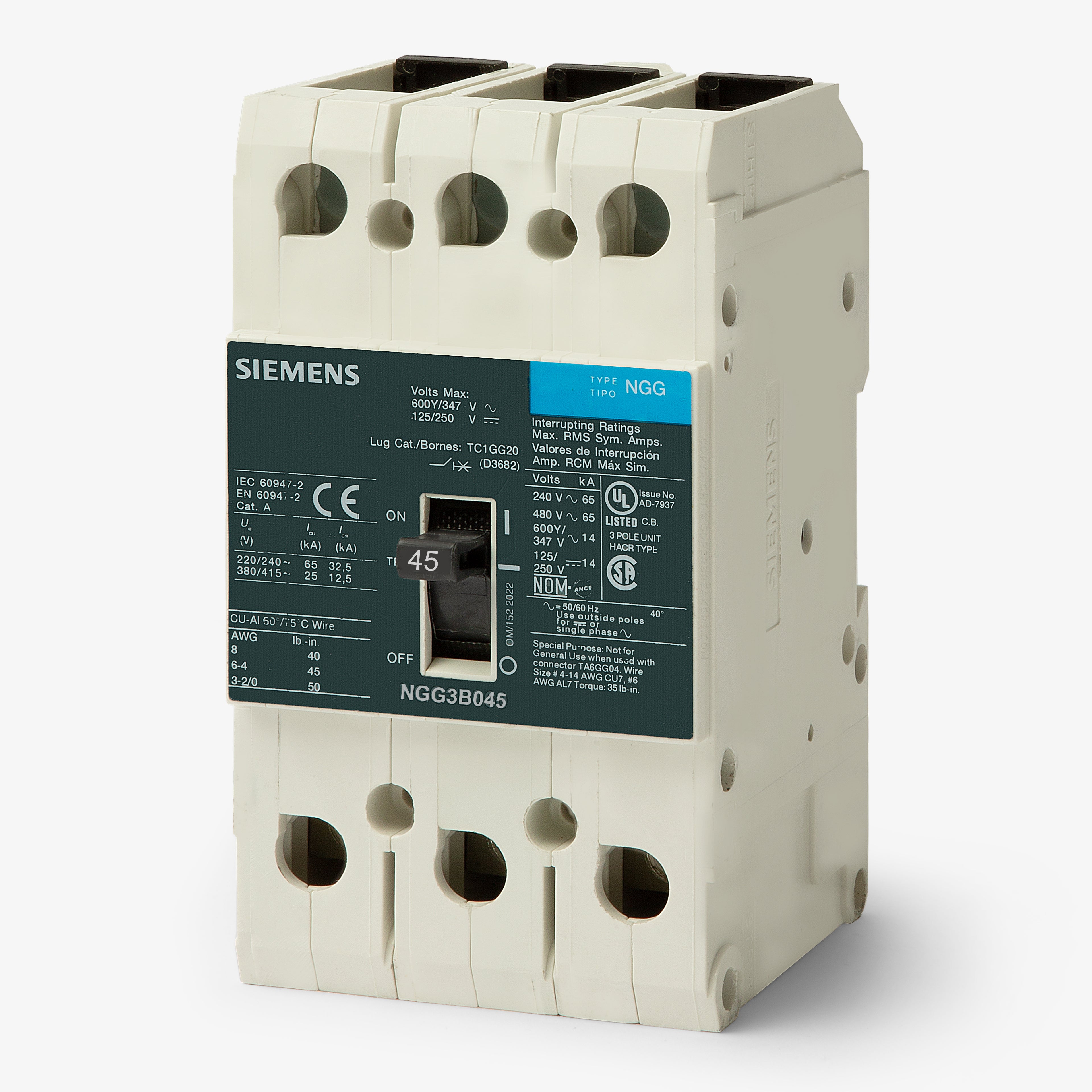

Siemens NGG3B045L 3 Pole Circuit Breaker

The New Siemens NGG3B045L Circuit Breaker 45A 480V is a compact, reliable, and standard-compliant overload and short circuit protection device from the VL Series. Featuring 3 poles and 3 phases, this general purpose low-voltage circuit breaker is rated at 45 Amp and 480 Vac. It provides thermal-magnetic trip protection and has long-time and instantaneous functions. Designed for easy deployment and quick installation, it can be easily mounted on DIN rail mount or held in place by mounting screws. With an AIC rating of 25kA@480V, it is suitable for reverse feed applications. It is well-suited for industrial, commercial, and OEM applications.

Specifications

Brand Siemens
Series NGG
Amperage 45
Voltage 600 VAC
Poles 3
Phase 3
Mounting Type Din Rail
Interrupting Rating 25kA
Frame Type GG
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Feed-Thru
Length (in) 2.9
Width (in) 3
Height (in) 5.4
Standards HVCR Rated
Circuit Breaker Type Molded Case
Actuator Type Toggle
Max Wire Size 2 AWG(Al), 1 AWG(Cu)
Min Wire Size 8 AWG(Al), 8 AWG(Cu)
Voltage Protection Rating 480V
Upc 783643413849
Gtin 783643413849
