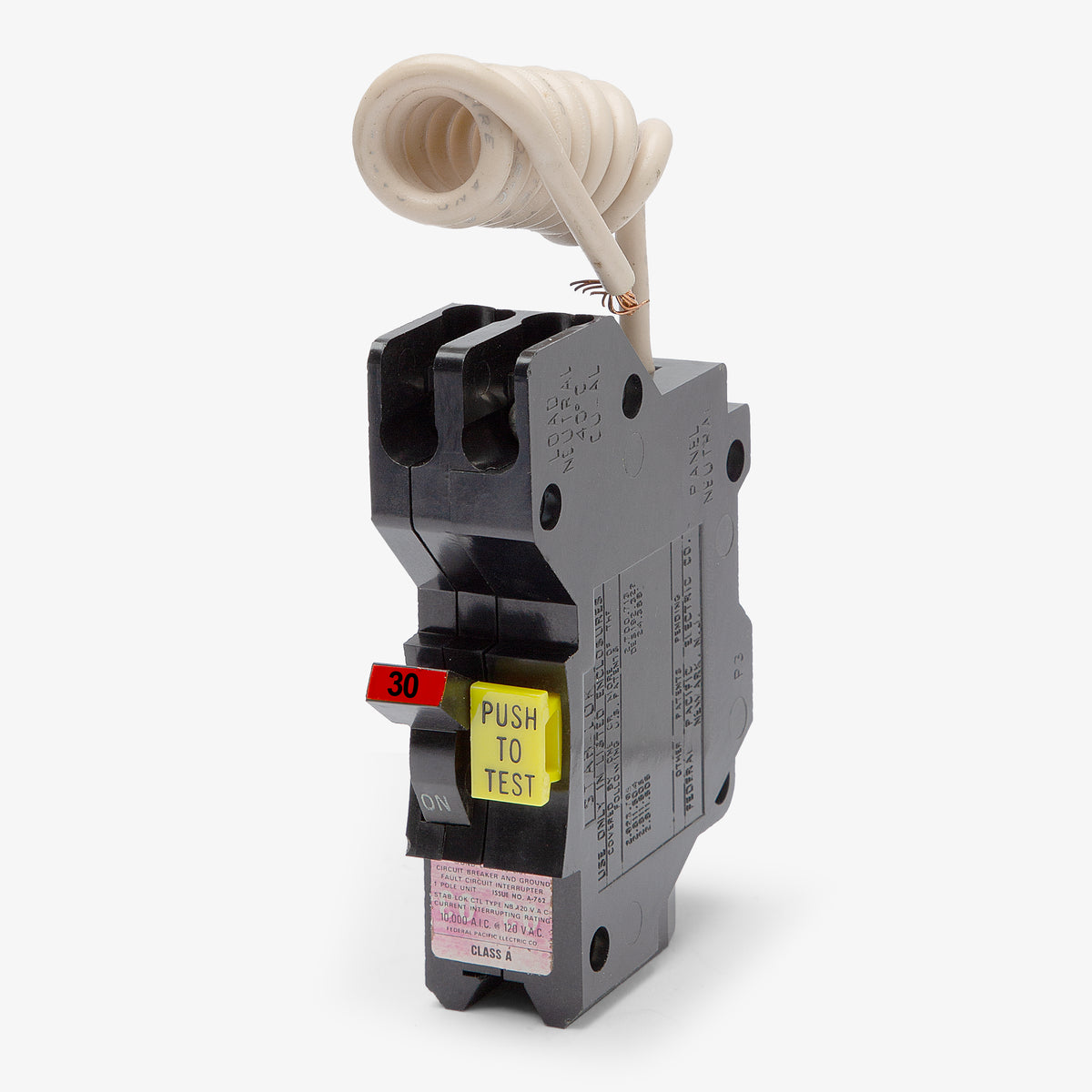

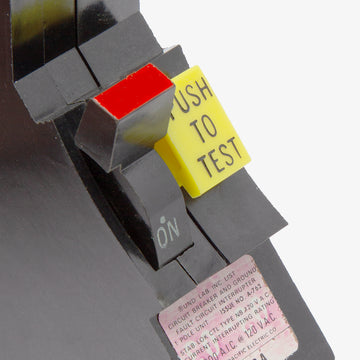

Federal Pacific NBGF30 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Federal Pacific
NBGF30
GFCI Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NBGF30
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NBGF30 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built to fit older Federal Pacific NB and NBLP panelboards, this 30A single-pole breaker integrates 5mA ground fault protection for commercial environments. The bolt-on connection ensures a secure fit for maintaining existing infrastructure. Rated at 10kAIC for 120VAC circuits, it helps facilities meet NEC standards for areas prone to moisture. When original stock is unavailable, the UBIF030N acts as an exact cross-reference substitute to keep legacy panels operational and code-compliant.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NBGF30 |
| Series | NB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhich panelboards accept the Federal Pacific NBGF30?
The NBGF30 is designed exclusively for Federal Pacific NB and NBLP panelboards. It uses a bolt-on connection and will not fit standard plug-on load centers.
What wire types and sizes are approved for the NBGF30 lugs?
The terminal lugs are rated for 14 AWG to 2 AWG conductors. You can use either aluminum or copper (Al/Cu) wire, provided it is sized appropriately for the 30-amp circuit.

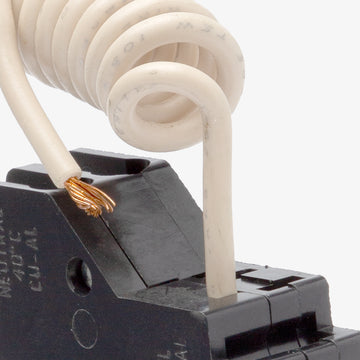

How is the ground fault circuit completed during installation?
The NBGF30 is equipped with a pigtail neutral wire. This pigtail must be connected directly to the panelboard neutral bus to enable the ground fault sensing circuitry.
Are the trip settings on the NBGF30 adjustable?
No. This thermal-magnetic breaker provides Long-Time, Instantaneous, and Ground-Fault (LIG) protection with fixed thermal and magnetic trip points that cannot be adjusted in the field.
