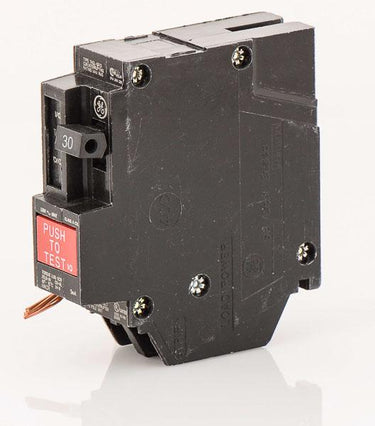

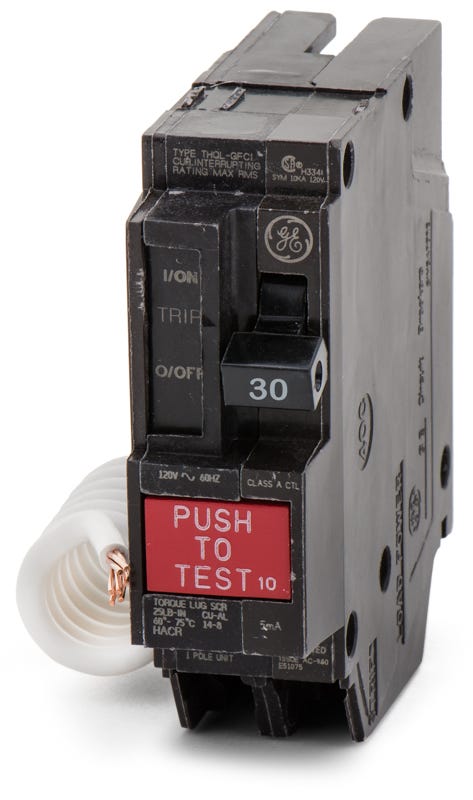

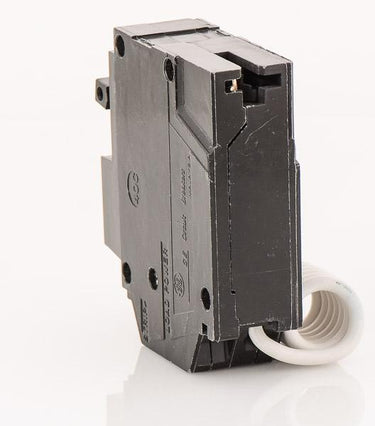

ABB / General Electric THQL1130GF GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1130GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQL1130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1130GF |
| Series | THQL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Self-Test |
Sold out
Quantity
ABB / General Electric THQL1130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1130GF-R |
| Series | THQL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Self-Test |
Similar Items
ABB / General ElectricTHQL1115GF
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2130GFT
30A GFCI Miniature Circuit Breaker
Description
Engineered to safeguard high-draw 120V circuits, this 30-amp ground fault interrupter delivers Class A 5mA protection for personnel. It is ideal for dedicated equipment circuits in locations requiring strict NEC compliance for moisture exposure. Fits into GE PowerMark Gold load centers, A-Series panelboards, and AQ lighting panels. The standard pigtail neutral wire ensures compatibility with legacy enclosures. This specific model has been superseded by the self-testing THQL1130GFT variant.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1130GF |
| Series | THQL |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
7 answersWhich load centers and panelboards are compatible with the THQL1130GF breaker?
This breaker is designed for use in GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, and ABB ReliaHome Load Centers.
What wire sizes do the box lugs on the THQL1130GF accept?
The terminals accommodate 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
What level of ground fault protection does this breaker provide?
It provides Class A 5mA ground fault protection, which is designed to protect personnel from electrical shock.

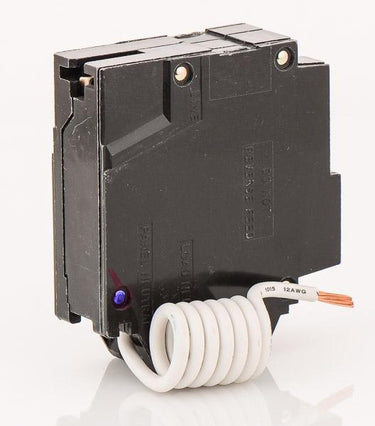

How is the neutral connection wired on this GFCI breaker?
This breaker features a standard pigtail neutral wire that must be connected directly to the neutral bus bar in the panel.
Is the THQL1130GF suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated for use with compatible HVAC and refrigeration equipment.
Is there a newer self-testing version of the THQL1130GF?
Yes, the THQL1130GF has been superseded by the THQL1130GFT, which includes an automatic self-test feature to meet updated UL requirements.
What is the 22kAIC equivalent of this breaker?
If your application requires a 22kAIC interrupting rating, the correct part number is THHQL1130GF.
