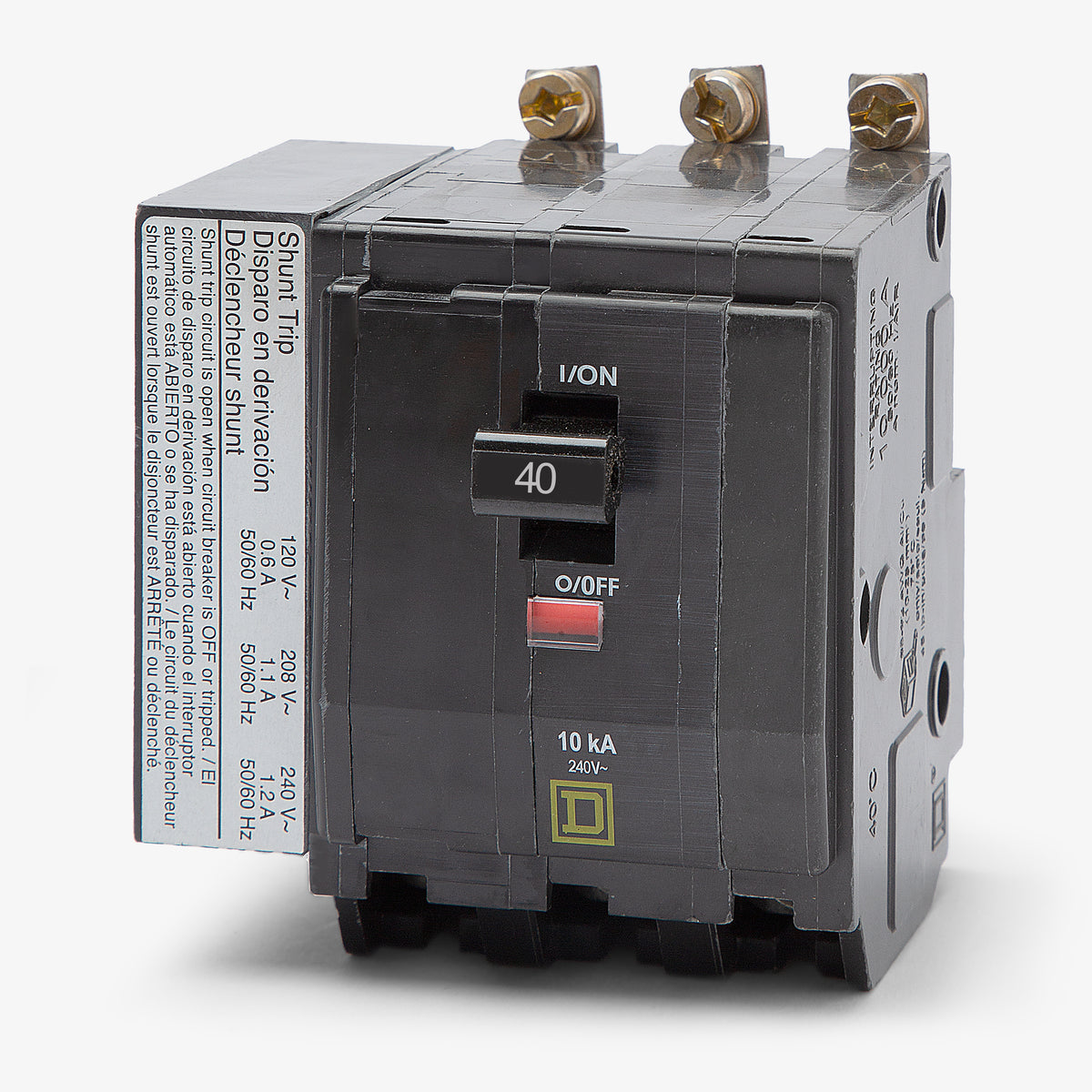

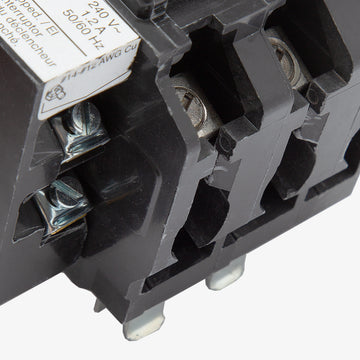

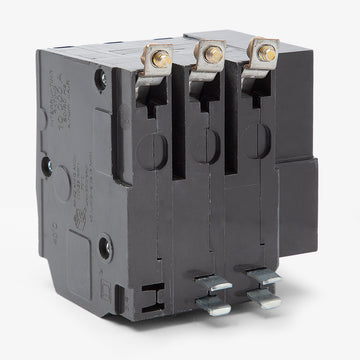

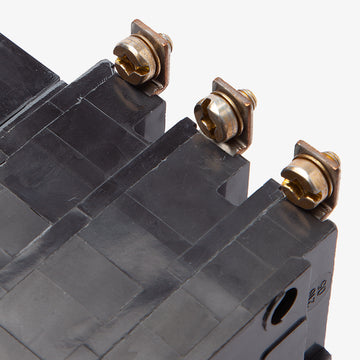

Square D QOB340-1021 QOB3401021 - 40A 3 Pole Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Square D
QOB340-1021
QOB3401021 - 40A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB340-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3401021 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Square D QOB3401021 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3401021 |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB3401021 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3401021-R |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
45A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
Description
Part of the QO family, the QOB340-1021 is a 40-amp, three-pole miniature circuit breaker. It delivers reliable thermal-magnetic protection against overloads for commercial distribution. This model is engineered to bolt securely into Square D NQ and NQOD panelboards. The box lug terminals accept 8-2 AWG aluminum or copper wire. A standout feature is the factory-installed 120/240V AC shunt trip, allowing remote operation. It maintains a 10kAIC rating and includes the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB3401021 |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the 1021 suffix mean in the QOB3401021 catalog number?
The 1021 suffix indicates that this circuit breaker includes a factory-installed 120/240V AC shunt trip accessory. This allows the breaker to be tripped from a remote location using a separate control circuit.
How many panel spaces does the QOB3401021 require for installation?
This breaker requires four panel spaces. The 3-pole breaker itself takes three spaces, and the factory-installed shunt trip accessory requires one additional pole space.
Can I use a QOB3401021 in place of a QO3401021?
No. While both are 40A, 3-pole breakers with a shunt trip, the QOB3401021 features a bolt-on connection for NQ and NQOD panelboards. The QO version uses a plug-on connection designed for standard QO load centers.
Does this breaker include a visual trip indicator?
Yes, Square D QOB breakers feature a Visi-Trip indicator. This provides a highly visible red flag when the breaker has tripped due to an overload or short circuit, making it easier to identify the faulted circuit.
Can the shunt trip accessory be removed or modified in the field?
No, the 120/240V AC shunt trip on the QOB3401021 is factory-installed. Miniature QOB breakers do not support field-installable internal accessories.
