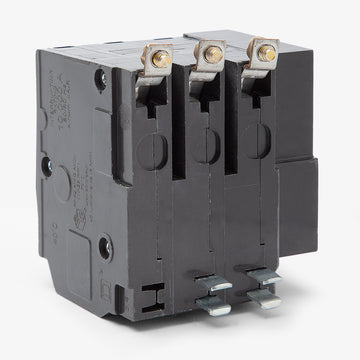

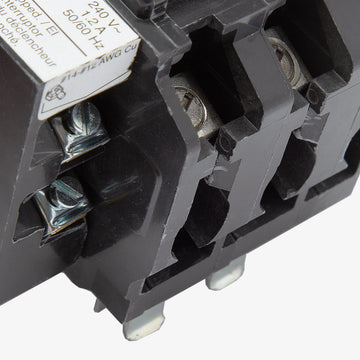

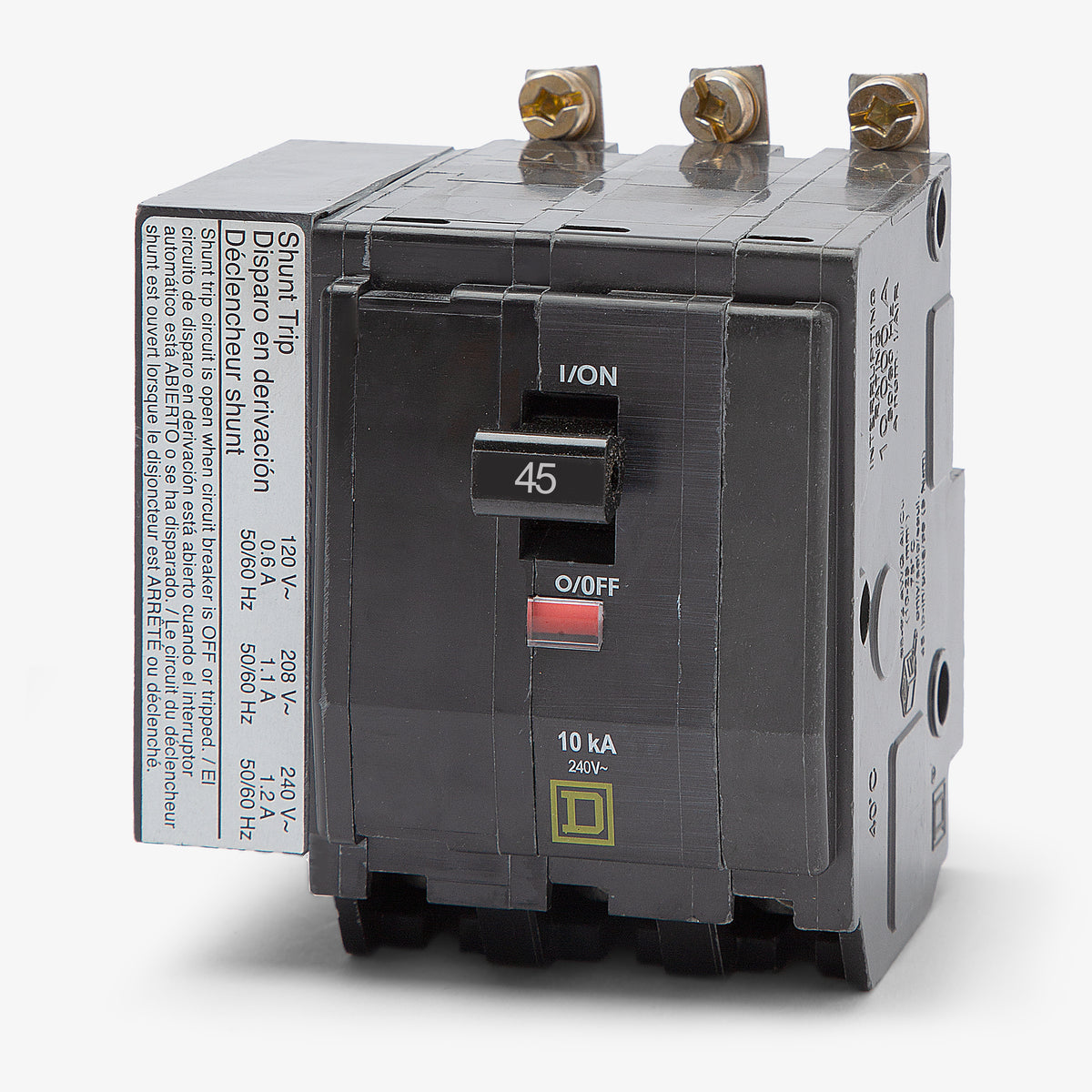

Square D QOB3451021 Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Square D
QOB3451021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB3451021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3451021 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
35A 3 Pole Miniature Circuit Breaker
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the Square D QOB3451021 delivers 45A of reliable thermal-magnetic protection. This 3-pole miniature circuit breaker handles demanding electrical distribution needs. This device installs into Square D NQ and NQOD panelboards. The bolted connection ensures stable performance in environments subject to vibration. It features a factory-installed 120/208/240V AC shunt trip for remote tripping, plus the Visi-Trip indicator for quick status identification.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR, RoHS |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the QOB3451021?
This bolt-on circuit breaker is designed for use in Square D NQ and NQOD panelboards. It cannot be used in standard QO plug-on load centers.
What does the 1021 suffix indicate on this breaker?
The 1021 suffix signifies a factory-installed shunt trip accessory. This allows the breaker to be opened remotely using a 120VAC, 208VAC, or 240VAC control signal.
How many panel spaces does the QOB3451021 require?
Due to the factory-installed shunt trip module, this 3-pole breaker requires four panel spaces for installation instead of the standard three.
What is the control voltage required to operate the shunt trip?
The integrated shunt trip mechanism requires a 120VAC, 208VAC, or 240VAC control voltage signal to remotely open the circuit.
What type of wire is compatible with the terminals on this breaker?

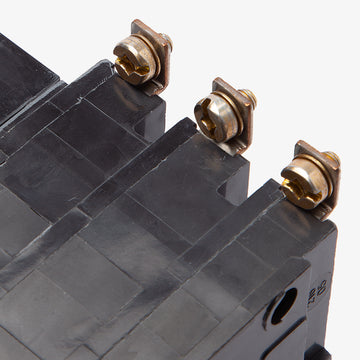

The box lugs are rated for both aluminum and copper conductors, accepting wire sizes from 8 AWG to 2 AWG.
How does the Visi-Trip indicator function on this breaker?
The Visi-Trip feature displays a highly visible red flag in the breaker window when it trips due to an overcurrent or short circuit event, allowing for rapid fault identification in crowded panels.
