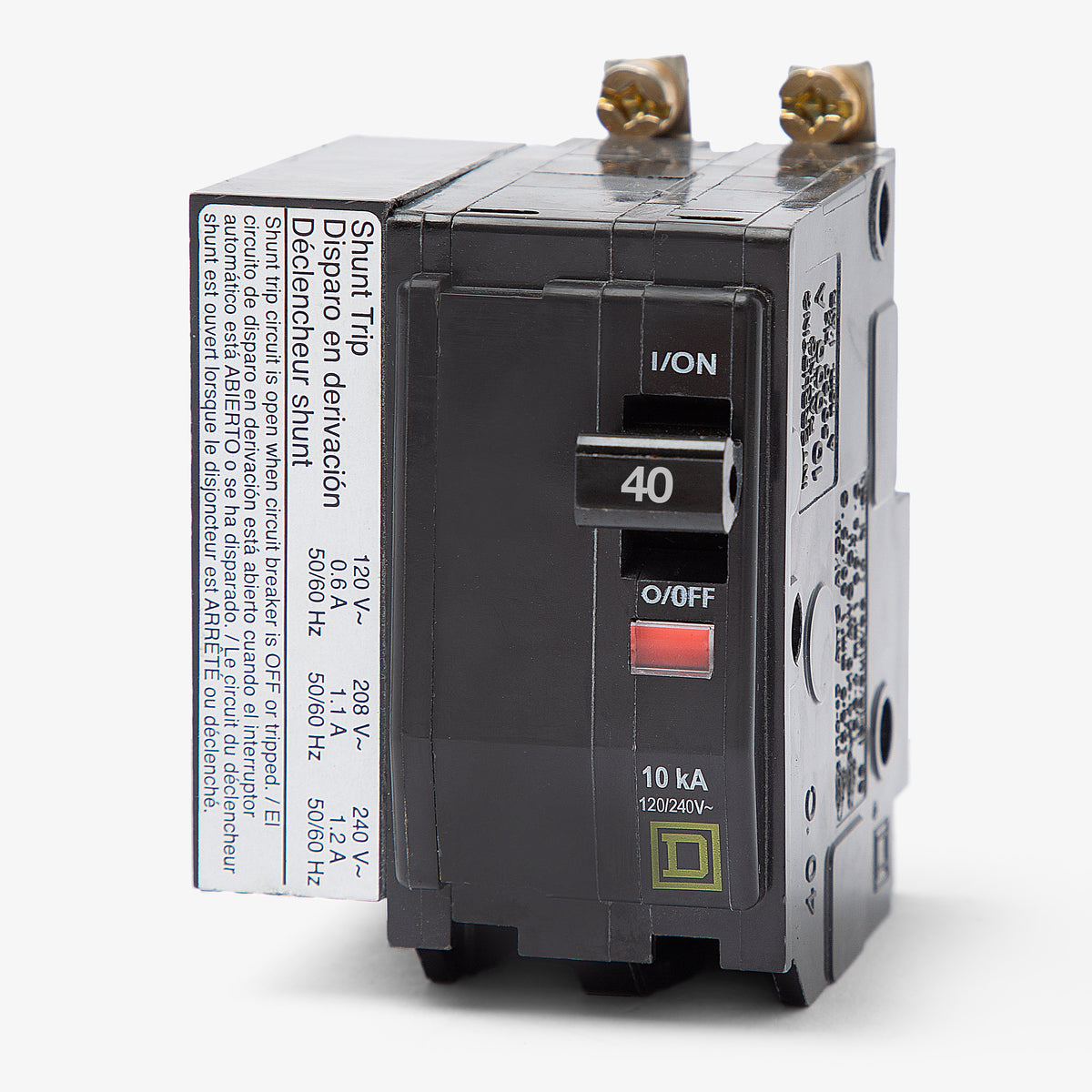

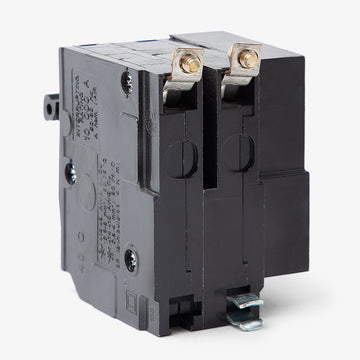

Square D QOB240-1021 QOB2401021 - 40A 2 Pole Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Square D
QOB240-1021
QOB2401021 - 40A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB240-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2401021 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Square D QOB2401021 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2401021 |
| Series | QOB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Sold out
Quantity
Square D QOB2401021 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2401021-R |
| Series | QOB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Similar Items
35A 2 Pole Miniature Circuit Breaker
QOB230VH1021 - 30A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Delivering both overcurrent defense and remote control, this 40-amp miniature breaker is ideal for complex commercial electrical systems. The two-pole configuration utilizes proven thermal-magnetic trip technology. Fastening securely to the busbar, it fits seamlessly into Square D NQ and older NQOD load centers. The bolt-on connection provides excellent stability in high-vibration industrial settings. The standout feature is the built-in 120-240VAC shunt trip for automated disconnects.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2401021 |
| Series | QOB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the Square D QOB2401021 circuit breaker?
This bolt-on breaker is designed for use in Square D NQ and legacy NQOD series panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
What does the 1021 suffix indicate on the QOB2401021 catalog number?
The 1021 suffix designates a factory-installed shunt trip accessory. This shunt trip operates on a 120/208/240 VAC control voltage, allowing the breaker to be tripped remotely for emergency stops or automated control systems.
What wire sizes and materials are accepted by the terminals on the QOB2401021?

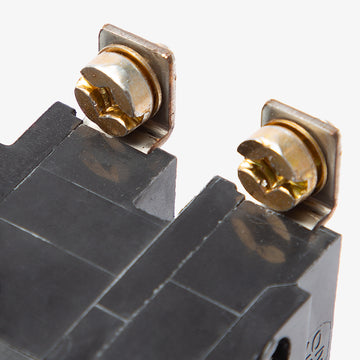

The box lugs on this 40-amp breaker accept 8 AWG to 2 AWG aluminum or copper conductors. Ensure proper torque specifications are followed during installation.
Can the QOB2401021 be used in DC applications?
Yes, this thermal-magnetic breaker is rated for use in DC systems up to 48 VDC, providing a maximum interrupting capacity of 5 kA at that voltage.
Does the QOB2401021 feature a Visi-Trip indicator?
Yes, this model includes the standard Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event or is actuated by the remote shunt trip, a highly visible red indicator appears in the window to help quickly identify the tripped circuit.
