Square D QO345-1021 QO3451021 - 45A 3 Pole Miniature Circuit Breaker
- 45A
- 3 Pole
- Plug-On
Square D
QO345-1021
QO3451021 - 45A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO345-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO3451021 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO3601021 - 60A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
QO3201021 - 20A 3 Pole Miniature Circuit Breaker
Description

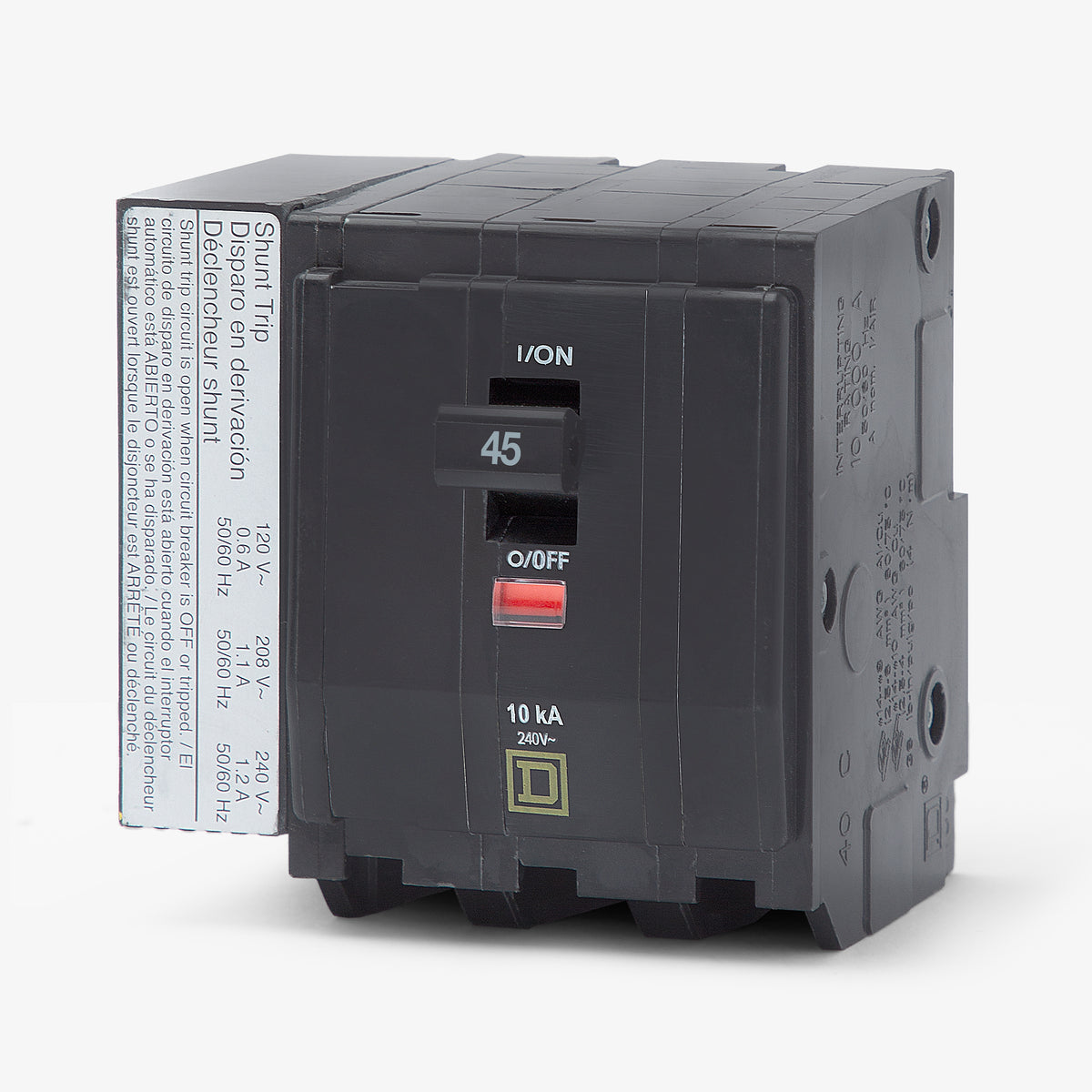

Built to support remote shutdown operations, the Square D QO345-1021 includes a factory-installed shunt trip rated for 120/208/240VAC. This 3-pole, 45A plug-on circuit breaker installs into QO load centers, NQ, and NQOD panelboards, making it ideal for commercial and industrial control schemes. Delivering a 10 kAIC interrupting rating at 240VAC, it combines standard thermal-magnetic protection with the convenience of the Visi-Trip indicator for rapid fault detection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO345-1021 |
| Series | QO |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8 AWG - 2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120/208/240VAC) |
| Standards | CSA C22.2 No. 5, UL 489, RoHS |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
7 answersWhat panels are compatible with the QO345-1021 circuit breaker?
This 3-pole breaker requires three spaces in a compatible Square D QO load center, NQ panelboard, or NQOD panelboard.
What does the -1021 suffix mean on this Square D QO breaker?
The -1021 suffix indicates that the breaker includes a factory-installed 120/240VAC shunt trip accessory, allowing the breaker to be tripped remotely via an external control signal.
What wire gauge is accepted by the box lugs on the QO345-1021?

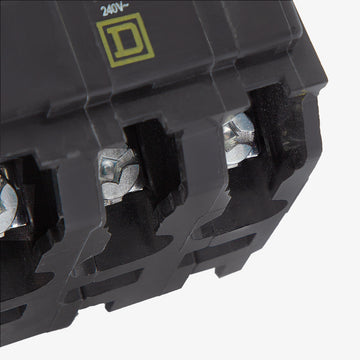

The box lug terminals accept 8 AWG to 2 AWG wire. Ensure you apply the correct torque specifications listed on the breaker label when terminating either aluminum or copper conductors.
How does the QO345-1021 install into the panel?

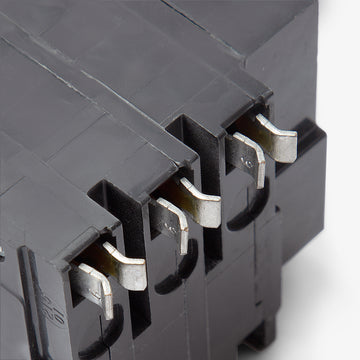

It features a standard plug-on mounting design that snaps directly into the busbar of compatible QO, NQ, or NQOD panels, eliminating the need for bolted connections.
Can the QO345-1021 be used in DC applications?
Yes, in addition to its AC ratings, this breaker is rated for 48VDC applications with a 5kA interrupting capacity, making it suitable for specific low-voltage control or battery circuits.
What type of trip protection does this breaker provide?
It features fixed thermal-magnetic trip technology. The thermal element provides long-time protection against gradual overloads, while the magnetic element delivers instantaneous protection against severe short circuits.
Does this breaker include a Visi-Trip indicator?
Yes, it features the signature Square D Visi-Trip visual indicator. When the breaker trips, the handle snaps to a midpoint position and a highly visible red flag appears, allowing for rapid fault detection in crowded panels.
