Eaton / Cutler-Hammer CC2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CC2100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

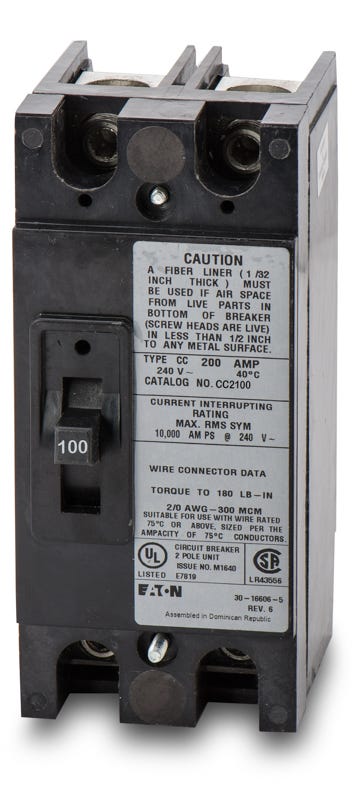

Eaton / Cutler-Hammer CC2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CC2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2100 |
| Series | CC |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CC2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2100-R |
| Series | CC |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial use, the Eaton CC2100 is a 2-pole, 100A unit mount molded case circuit breaker. It is designed to serve as a tenant main, providing essential overcurrent protection. This breaker mounts into 1MP, 1MM, and 3MM modular meter stacks, plus Type ECC unit enclosures. It includes line and load lugs accepting 4 AWG to 4/0 AWG wire. It is replaced by the CCV2100 for newer systems. Rated at 10 kAIC at 120/240V, it features fixed thermal-magnetic (LI) trip functions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2100 |
| Series | CC |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
4 answersWhat type of equipment is the CC2100 designed to fit?
This breaker is specifically designed for Eaton and Cutler-Hammer multi-metering equipment. It mounts directly into Type ECC unit enclosures and 1MP, 1MM, or 3MM modular meter stacks.
What is the primary application for this breaker?
The CC2100 is primarily installed as a tenant main circuit breaker in multi-family residential and commercial metering centers, providing overcurrent protection for individual tenant spaces.
What is the difference between the CC2100 and the CCV2100?
The CCV2100 is the modern direct replacement for the legacy CC2100. Both are 100A, 2-pole tenant main breakers with a 10 kAIC rating, but the CCV2100 features an updated lug design that accepts larger 2/0 AWG to 300 kcmil wire, whereas the CC2100 accepts 4 AWG to 4/0 AWG wire.
Is there a higher interrupting rating version of this breaker available?
Yes, if your application requires a 25 kAIC short-circuit rating, you can use the legacy CCH2100 or its modern replacement, the CCVH2100.
