Eaton / Cutler-Hammer PDG23F0200TFFL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0200TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0200TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

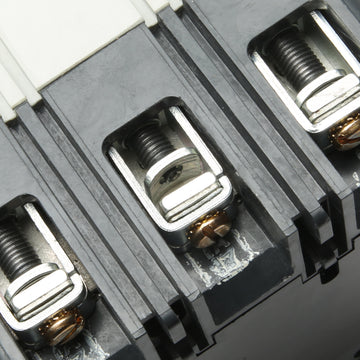

Eaton / Cutler-Hammer PDG23F0200TFFL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, the Eaton PDG23F0200TFFL is a 3-pole, 200A MCCB from the Power Defense Frame 2 series. It utilizes a fixed thermal-magnetic (LI) trip unit to deliver dependable long-time and instantaneous overcurrent protection. Designed for panel mount applications, this breaker fits Eaton Series C panelboards and replaces the legacy FDB3200.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 6 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Common Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhich Eaton panelboards accept the PDG23F0200TFFL?
This 3-pole breaker is engineered for installation in current Eaton Power Defense panelboards and maintains backward compatibility with legacy Eaton Series C panelboards.
Can this Power Defense Frame 2 breaker replace older Eaton models?
Yes, the Power Defense Frame 2 (PDG2) series serves as the direct, modern upgrade for legacy Eaton Series C F-Frame molded case circuit breakers, fitting into the same panelboard spaces.
What type of conductors can be terminated on the load side of this breaker?
The standard load side lugs are dual-rated for both aluminum and copper (Al/Cu) wire, accommodating conductor sizes from 6 AWG up to 300 kcmil.
Is it possible to adjust the trip curve on this 200A breaker?
No, this model is equipped with a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) pickup thresholds are factory-calibrated and cannot be altered in the field.
What specific fault conditions does the LI trip unit protect against?
The thermal-magnetic LI trip unit provides long-time (L) delay protection to safeguard wiring against sustained overloads, and instantaneous (I) protection to immediately clear severe short circuits.
Can the PDG23F0200TFFL be deployed in DC power systems?
Yes, while primarily used in AC distribution, this breaker is also UL rated for DC applications up to 250VDC, where it provides a 10kA interrupting capacity.
How is the PDG23F0200TFFL secured inside the panelboard?
It is a panel-mounted breaker that bolts directly to the chassis and buswork of compatible Eaton Power Defense or legacy Series C panelboards, ensuring a secure electrical connection.
