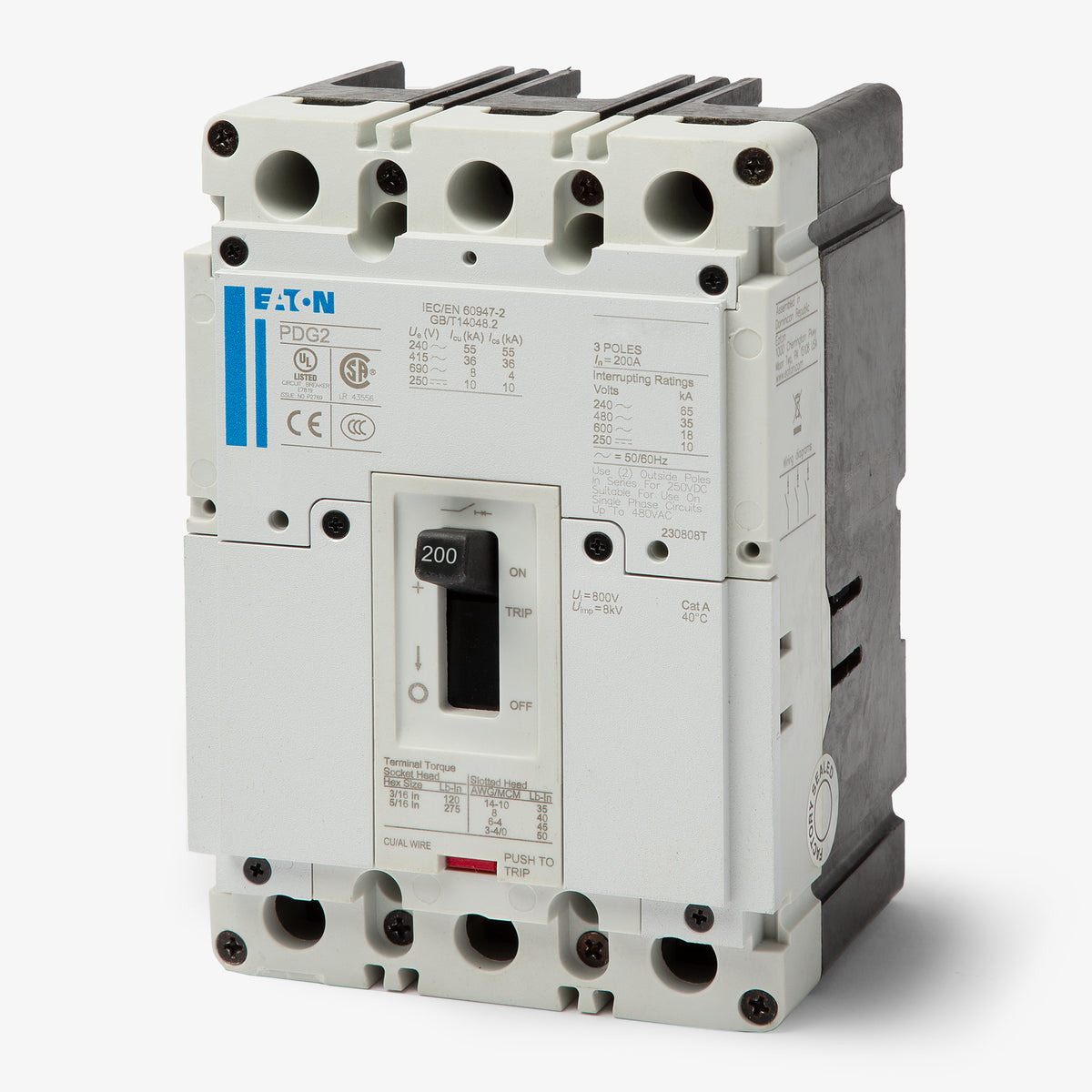

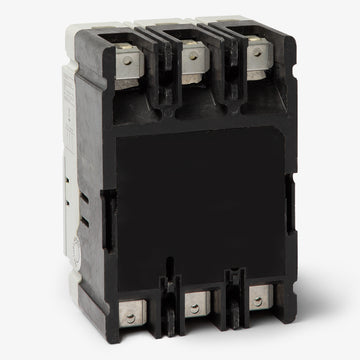

Eaton / Cutler-Hammer PDG23G0200TFFL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0200TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0200TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0200TFFL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23P0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Description
Rated for 35kAIC at 480V, the PDG23G0200TFFL is a 3-pole, 200A molded case circuit breaker from Eaton's advanced Power Defense Frame 2 lineup. It installs into compatible switchboards and enclosures, serving as an exact replacement for the legacy FD3200 breaker. This unit utilizes a fixed thermal and fixed magnetic trip mechanism to deliver reliable long-time and instantaneous (LI) protection. The "L" suffix indicates it is supplied with standard load-side terminal lugs only.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock, Rotary Handle, Motor Operator, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
8 answersIs the PDG23G0200TFFL a direct replacement for legacy Eaton breakers?
Yes. The Power Defense Frame 2 (PDG2) series is the direct modern upgrade for older Eaton Series C F-Frame circuit breakers, including the FD, HFD, and FDC lines. When retrofitting into an existing legacy Pow-R-Line panelboard, an updated Eaton connector kit may be required.
What does the "TFF" indicate in the PDG23G0200TFFL part number?
The "TFF" signifies that the breaker is equipped with a thermal-magnetic trip unit featuring both fixed thermal and fixed magnetic protection. It does not have adjustable trip settings.
What does the "G" mean in the PDG23G0200TFFL catalog number?
The first "G" indicates the breaker is part of the Globally Rated Power Defense portfolio, meaning it is certified to UL, CSA, IEC, and CCC standards. The second "G" designates the interrupting capacity tier, which is 35kAIC at 480VAC.
Can the PDG23G0200TFFL be used in DC applications?
Yes, this breaker carries a DC interrupting rating of 10kAIC at 250VDC. When installing in a 250VDC system, Eaton guidelines require wiring two poles in series to achieve the correct voltage rating.

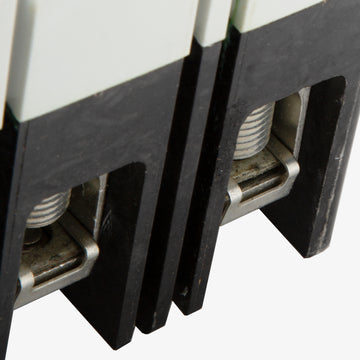

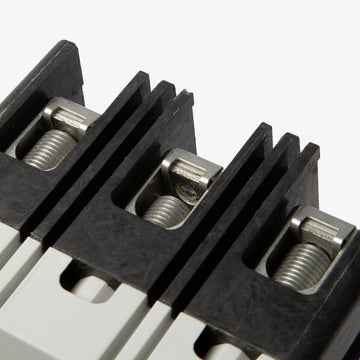

Are the standard lugs on the PDG23G0200TFFL compatible with aluminum wiring?
Yes, the factory-installed load side lugs are dual-rated for both aluminum (Al) and copper (Cu) conductors. They accept wire sizes from 4 AWG up to 4/0 AWG.
Does the PDG23G0200TFFL come with both line and load side terminals?
The "L" suffix in the catalog number specifies that the breaker includes standard lugs on the load side only. Line side connections will depend on your specific Eaton enclosure or panelboard, which typically utilizes busbar connections or requires a separate terminal kit.
What mounting style does the PDG23G0200TFFL use?
This is a standard panel mount circuit breaker. Installing it into Eaton switchboards or panelboards requires the correct bolt-on connector kit, which includes the necessary brackets and bus connectors for a secure physical and electrical connection.
Can I adjust the trip curve on the PDG23G0200TFFL for selective coordination?
No. This specific model uses a fixed thermal and fixed magnetic trip unit. If your installation requires precise coordination or adjustable short-circuit pickup, you will need a Power Defense breaker equipped with a Power Xpert electronic trip unit (ETU) or an adjustable thermal-magnetic unit.
