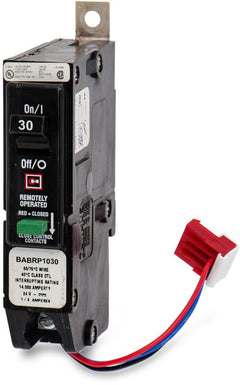

Eaton / Cutler-HammerBABRP1030
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

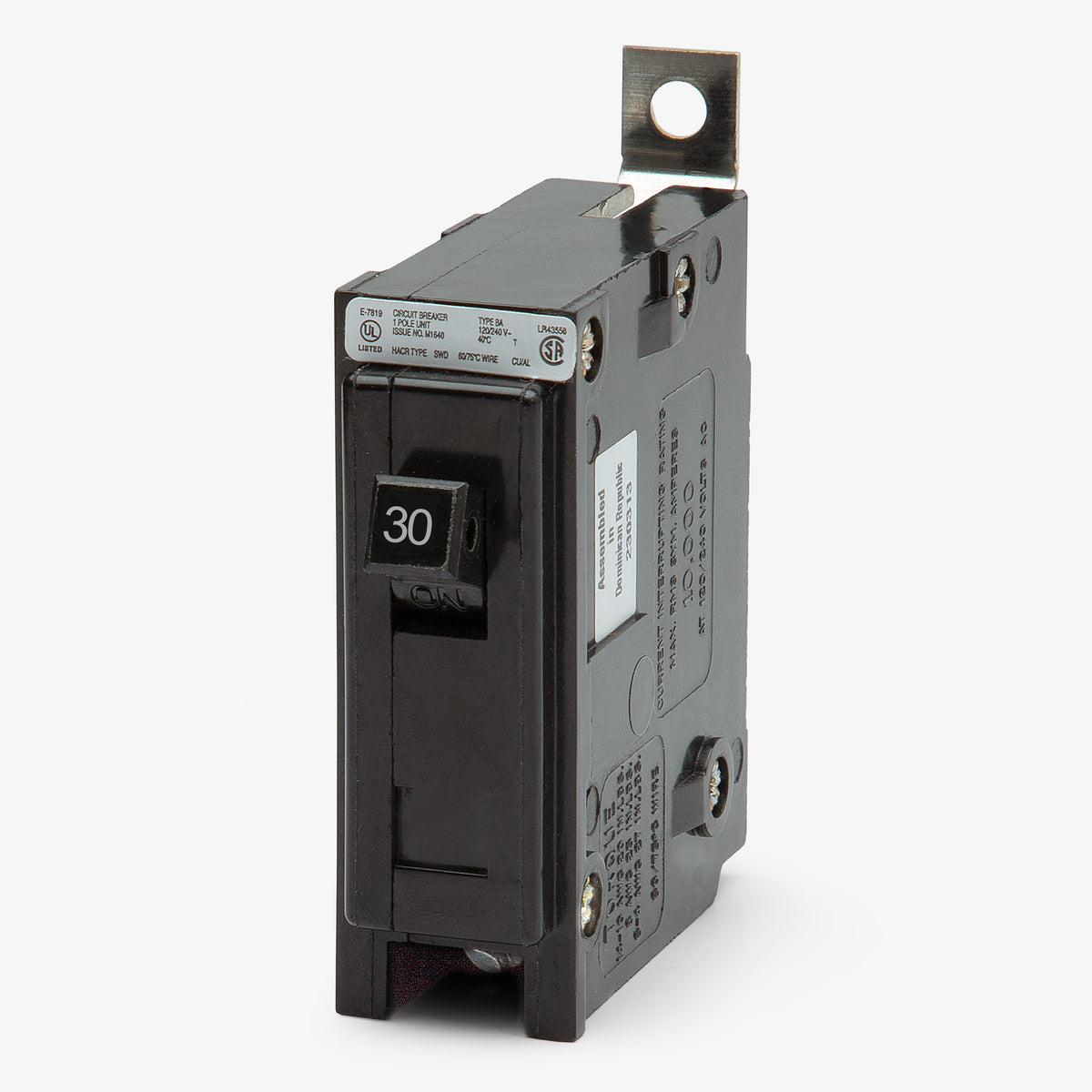

Eaton / Cutler-Hammer BAB1030 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1030
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1030 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer BAB1030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1030 |
| Series | BAB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|

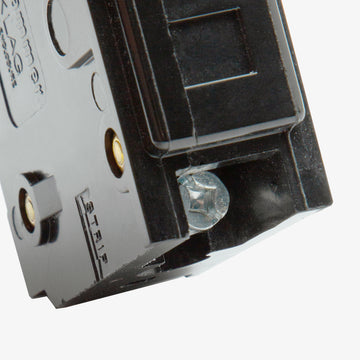

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | HACR, HID, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB1030 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1030-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | HACR, HID, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
30A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
Description
Providing dependable 30A circuit protection, this single-pole Quicklag device is engineered for demanding commercial environments. It mounts firmly into Westinghouse, Bryant, and Eaton Pow-R-Line panelboards via a standard bolt-on configuration. Electricians frequently utilize this model to replace aging BA, QB, or QNBL breakers in existing infrastructure. With specialized HID and HACR certifications, it safely accommodates the unique electrical characteristics of modern lighting and HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1030-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | HACR, HID, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat specific panelboards will accept the BAB1030?
This device is engineered for Eaton Pow-R-Line panelboards, particularly the PRL1a and PRL2a models. It is also directly compatible with legacy bolt-on commercial panels manufactured by Westinghouse, Cutler-Hammer, and Bryant.
Is there a 22kAIC version of this 30A single-pole breaker?
Yes. If your system requires a higher interrupting capacity, the QBHW1030 provides the exact same physical footprint and bolt-on connection but upgrades the short-circuit rating to 22kAIC at 120/240VAC.
Can the BAB1030 be installed in direct current (DC) circuits?
Yes. While it is predominantly used for AC loads, it is also rated for DC applications. It delivers a 5kAIC rating at 24VDC and 48VDC, as well as a 3.8kAIC rating up to 62.5VDC.
Is the BAB1030 certified for HVAC loads?
Yes, it is HACR rated. This certification verifies that the breaker can safely withstand the continuous loads and start-up current surges typical of heating, air conditioning, and refrigeration compressors without nuisance tripping.

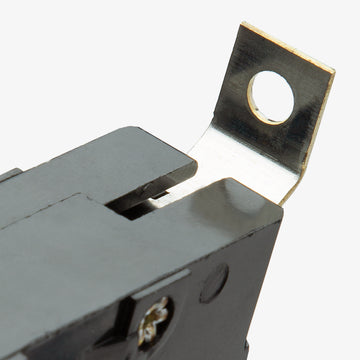

How does the bolt-on mounting configuration operate?
The breaker connects directly to the panel busbar using a threaded fastener rather than snapping into place. This mechanical bolting method creates a highly secure, vibration-resistant electrical connection standard in commercial and industrial environments.
