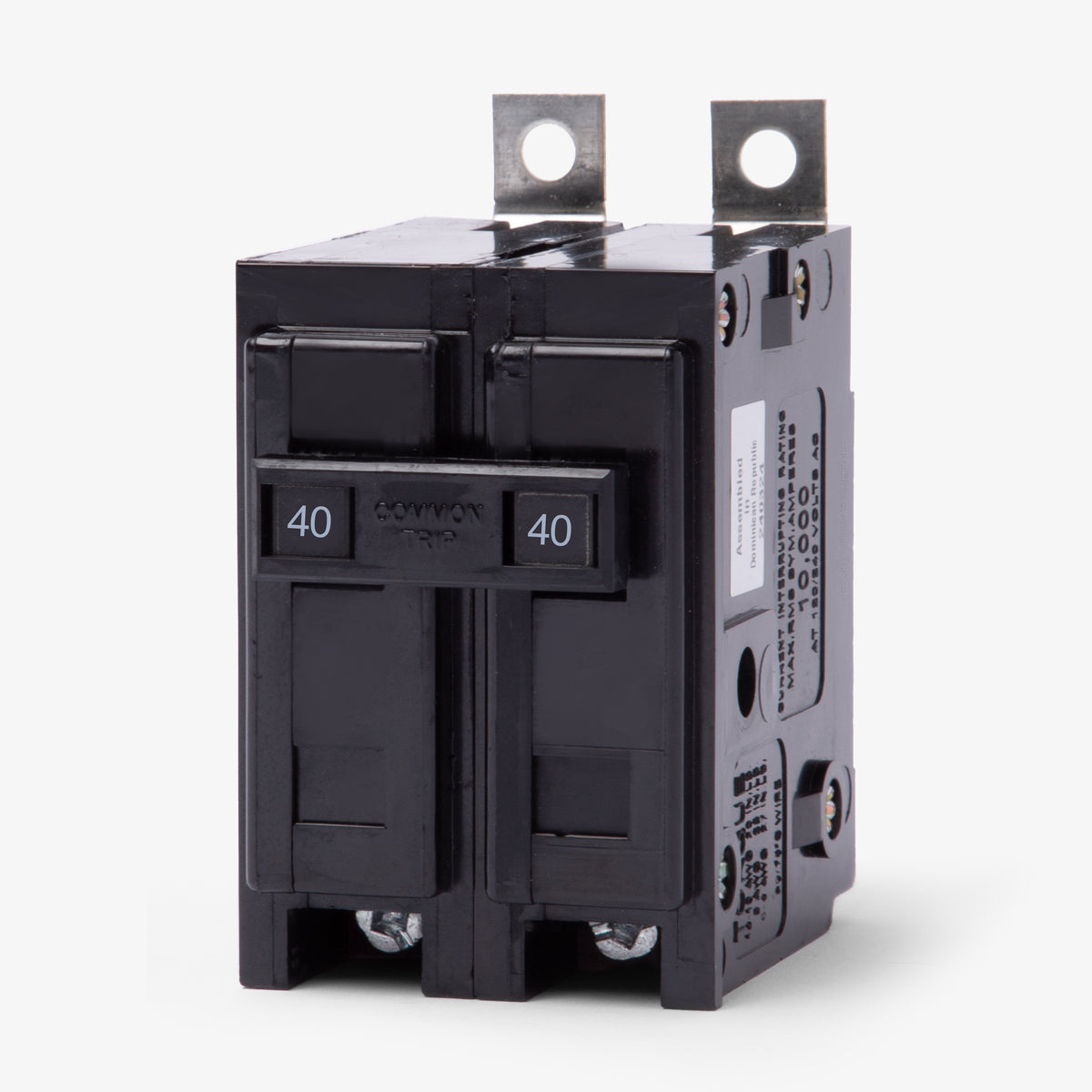

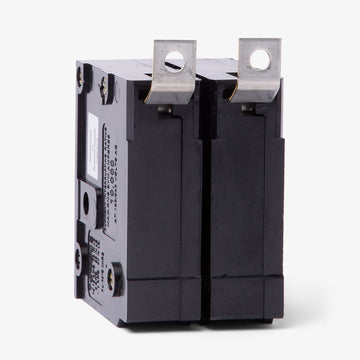

Eaton / Cutler-Hammer BAB2040 Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2040
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2040 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB2040 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2040 |
| Series | BAB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|

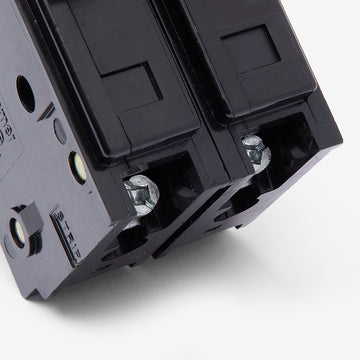

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB2040 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2040-R |
| Series | BAB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
45A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton BAB2040 is a 40-amp, two-pole miniature circuit breaker designed for robust electrical distribution. It provides standard thermal-magnetic protection for residential, commercial, and industrial environments. This bolt-on unit installs seamlessly into Eaton Pow-R-Line, Westinghouse, and Bryant panelboards. It also serves as a replacement for legacy QNBL and QBHW2040 breakers, ensuring backward compatibility for older systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2040 |
| Series | BAB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersCan I install the BAB2040 in a standard residential load center?
No. The BAB2040 is a bolt-on miniature circuit breaker designed for commercial and industrial panelboards, such as Eaton Pow-R-Line models. Most standard residential load centers require plug-on breakers like type BR or CH.
Which Eaton Pow-R-Line panelboards accept this breaker?
The BAB2040 is compatible with several Eaton Pow-R-Line panelboards, specifically the PRL1a, PRL2a, PRL1X, and PRL2X series that are configured for bolt-on branch breakers.
Is this circuit breaker suitable for HVAC equipment?
Yes. The BAB2040 is HACR rated, meaning it is certified for safely operating heating, air conditioning, and refrigeration equipment.
Will this Eaton breaker replace an older Westinghouse or Cutler-Hammer BAB breaker?
Yes. Eaton acquired the Westinghouse and Cutler-Hammer distribution equipment lines. The BAB2040 is an exact, direct replacement for older Westinghouse, Bryant, and Cutler-Hammer breakers bearing the same catalog number.
Does the BAB2040 replace a QBHW2040 breaker?
It physically fits the same panel spaces, but there is a difference in the short circuit rating. The BAB2040 is rated for 10kAIC, while the QBHW2040 is rated for 22kAIC. You can only substitute the BAB2040 if your specific system fault current requirement is 10kA or lower.

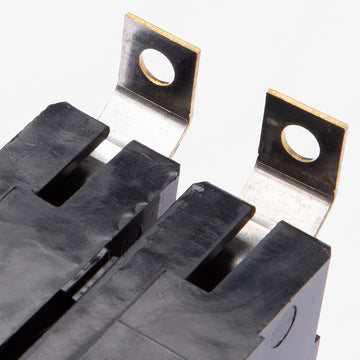

What is the advantage of a bolt-on connection for this breaker?
Bolt-on circuit breakers provide a highly secure, mechanical connection to the panelboard bus bar. This prevents the breaker from vibrating loose over time, ensuring a safe and reliable connection in heavy commercial and industrial applications.
How does the thermal-magnetic trip function protect my circuit?
The thermal mechanism provides a delayed response to prevent overheating from long-term overloads. The magnetic mechanism trips instantaneously to stop power flow during severe short circuits, protecting the wiring and equipment from catastrophic damage.
