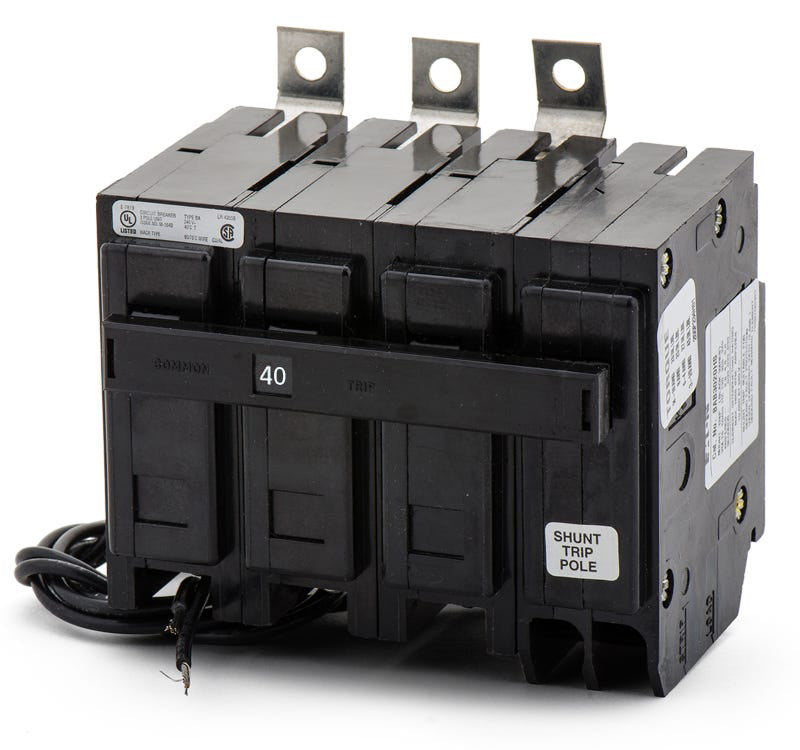

Eaton / Cutler-Hammer BAB3040HS1 Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3040HS1
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3040HS1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3040HS1 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBAB3045HS
45A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3035HS
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3050HS
50A 3 Pole Miniature Circuit Breaker
Description
Built for specialized control applications, this 40A three-pole breaker delivers robust thermal-magnetic protection. It is engineered for commercial and industrial environments requiring automated safety controls. The bolt-on configuration installs seamlessly into Eaton Pow-R-Line, Bryant, and Westinghouse panelboards. It is fully compatible as a substitute for discontinued QNBL models. Delivering a 10kAIC rating at 240VAC, this model includes a 24-48VDC shunt trip for remote power management.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3040HS1 |
| Series | BAB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (24-48VDC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards are compatible with the BAB3040HS1 circuit breaker?
This breaker is designed for Eaton Pow-R-Line, Westinghouse, and Bryant panelboards. It requires a panelboard busbar specifically configured to accept bolt-on branch breakers, and will not fit in standard residential plug-on load centers.
What does the HS1 suffix mean in the BAB3040HS1 catalog number?
The HS1 suffix indicates the breaker includes a factory-installed 24 to 48 VDC shunt trip accessory. This allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency stops or automated safety controls.
How does the bolt-on mounting of the BAB3040HS1 differ from plug-on breakers?
Bolt-on breakers secure directly to the panelboard busbar using screws, providing a highly secure, vibration-resistant connection. This mounting style is typically required in commercial and industrial environments to prevent accidental disconnection.
How does the thermal-magnetic trip unit function on this breaker?
The fixed thermal-magnetic mechanism provides dual protection. The thermal element offers a delayed trip for sustained overloads (Long-Time), while the magnetic element provides an instantaneous trip to quickly clear severe short circuits.
Can I use this Eaton breaker to replace an older Cutler-Hammer or Westinghouse BAB breaker?
Yes. Because Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines, this breaker is a direct, UL-listed replacement for older Cutler-Hammer, Westinghouse, and Bryant BAB frame breakers with matching specifications.
Is the BAB3040HS1 HACR rated for HVAC applications?
Yes, Eaton BAB breakers from 15A to 100A are HACR rated. This makes the 40A BAB3040HS1 suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
