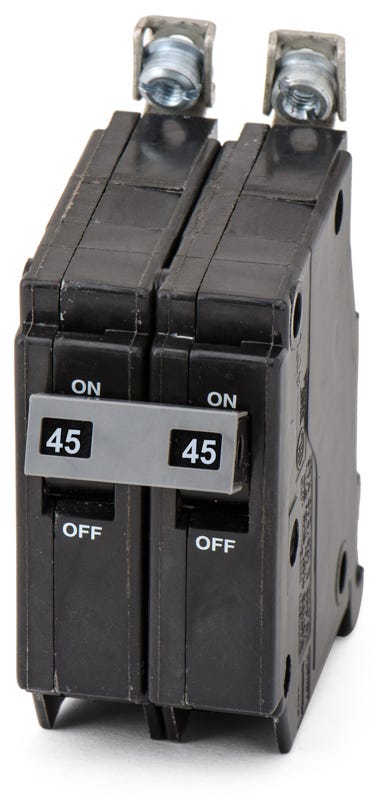

Eaton / Cutler-Hammer CHB245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB245
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB245 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHB245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB245 |
| Series | CHB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB245 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB245-R |
| Series | CHB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
40A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the CHB245 provides reliable thermal-magnetic overcurrent protection. This 45-amp, two-pole miniature breaker is part of Eaton's trusted CHB series, delivering consistent performance for branch circuit applications. Mounts into Cutler-Hammer Type PB and PH panelboards, as well as compatible meter panels and multi-metering modules. The bolt-on design ensures a secure connection. Rated at 10 kAIC at 120/240VAC, it includes fixed trip settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB245-R |
| Series | CHB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Eaton CHB245 circuit breaker?
The CHB245 is a bolt-on breaker designed specifically for use in Cutler-Hammer Type PB and PH panelboards, as well as compatible meter panels and multi-metering modules.
Can I install the CHB245 in a standard Eaton CH residential loadcenter?
No. Standard Eaton CH loadcenters require plug-on breakers. The CHB245 features a bolt-on connection designed exclusively for commercial PB and PH series panelboards.
Are Eaton CHB and BAB circuit breakers interchangeable?
No. While both are commercial bolt-on breakers, they have different physical dimensions and mounting configurations. CHB breakers are 3/4-inch wide per pole and fit PB or PH panels, whereas BAB breakers are 1-inch wide per pole and fit different panel types.
Is the Eaton CHB245 breaker HACR rated?
Yes, the CHB245 is fully HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
How does the CHB245 connect to the panel busbar?
The CHB245 utilizes a bolt-on connection, providing a highly secure mechanical and electrical connection to the busbar in compatible PB and PH panelboards.
