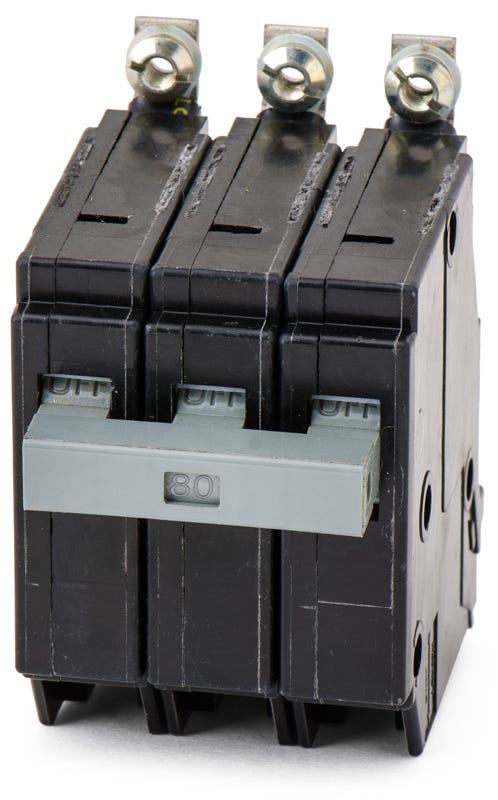

Eaton / Cutler-Hammer CHB380 Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB380
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB380
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB380 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHB380 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB380 |
| Series | CHB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Eaton / Cutler-Hammer CHB380 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB380-R |
| Series | CHB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent protection, the Eaton CHB380 is a 3-pole, 80-amp miniature circuit breaker. It utilizes a quick-make, quick-break mechanism for reliable operation. Designed for seamless integration, this unit mounts into Cutler-Hammer Type PB and PH panelboards. The box lug terminals accommodate 4-1/0 AWG copper or aluminum wiring. With a 10kAIC rating at 240VAC, this thermal-magnetic breaker delivers precise trip functions and is HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB380 |
| Series | CHB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards are compatible with the CHB380 circuit breaker?
The CHB380 is a bolt-on breaker designed specifically for Eaton, Cutler-Hammer, and legacy Westinghouse Type PB and Type PH panelboards, as well as compatible meter panels.
How does the CHB380 mount to the panelboard bus?
This is a bolt-on breaker, meaning it fastens directly to the panelboard bus bars with screws. This provides a secure, vibration-resistant connection suitable for commercial and industrial applications. It requires three mounting spaces in the panel.
Can the CHB380 be used on a 208Y/120V three-phase system?
Yes. With a maximum voltage rating of 240VAC, this 3-pole breaker is fully compatible with 208Y/120V solid-grounded Wye systems and 240V Delta systems, provided the available fault current does not exceed its 10 kAIC rating.
Is the Eaton CHB380 a direct replacement for older Westinghouse CHB breakers?
Yes. Eaton acquired the Westinghouse distribution equipment division, so the modern Eaton or Cutler-Hammer CHB380 is the direct, UL-listed replacement for legacy Westinghouse CHB380 breakers used in PB panelboards.
How does the thermal-magnetic trip unit function on the CHB380?
The fixed thermal-magnetic trip unit provides two types of protection. The thermal element offers a time-delayed response to safely handle temporary overloads, while the magnetic element trips instantaneously to clear severe short circuits.
Can the trip settings on the CHB380 be adjusted in the field?
No, the CHB380 features a fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short circuit) trip points are factory calibrated and cannot be modified by the installer.
