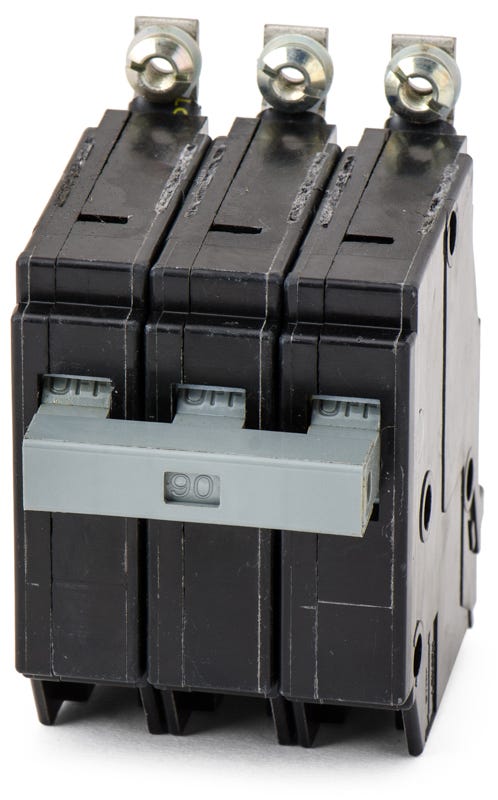

Eaton / Cutler-Hammer CHB390 Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB390
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB390
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHB390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB390 |
| Series | CHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB390 - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB390-R |
| Series | CHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Similar Items
70A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial power distribution, this 90-amp, three-pole breaker delivers reliable thermal-magnetic trip functionality. It installs securely into Eaton Cutler-Hammer Type PB and PH panelboards using a sturdy bolt-on connection. Rated for 10kAIC at 240VAC, the unit features a common trip mechanism to ensure all poles open simultaneously during a fault, providing comprehensive circuit protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB390 |
| Series | CHB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the CHB390 circuit breaker?
The CHB390 is designed for use in Eaton and Cutler-Hammer Type PB and Type PH panelboards. It features a bolt-on mounting style and is not compatible with standard plug-on loadcenters.
Are Type CH and Type CHB breakers interchangeable?
No. Type CHB breakers, like the CHB390, have a bolt-on mounting style for commercial PB and PH panelboards. Type CH breakers use a plug-on design for residential loadcenters. They cannot be swapped.
What type of wire can I use with the CHB390 terminals?
The CHB390 features box lug terminals that are rated for both copper (Cu) and aluminum (Al) conductors. They accept wire gauges from 4 AWG up to 1/0 AWG.
What does the LI trip function mean on the CHB390?
The LI designation indicates that the breaker provides Long-Time and Instantaneous trip functions. This is standard thermal-magnetic protection, where the thermal element protects against mild overloads and the magnetic element reacts instantly to severe short circuits.
Is there a difference between Eaton and Cutler-Hammer for the CHB390?
No. Eaton acquired Cutler-Hammer, so the CHB390 is the exact same breaker whether it is branded as Eaton or Cutler-Hammer. They are fully interchangeable.
Can the CHB390 be used for HVAC equipment?
Yes. The CHB390 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
