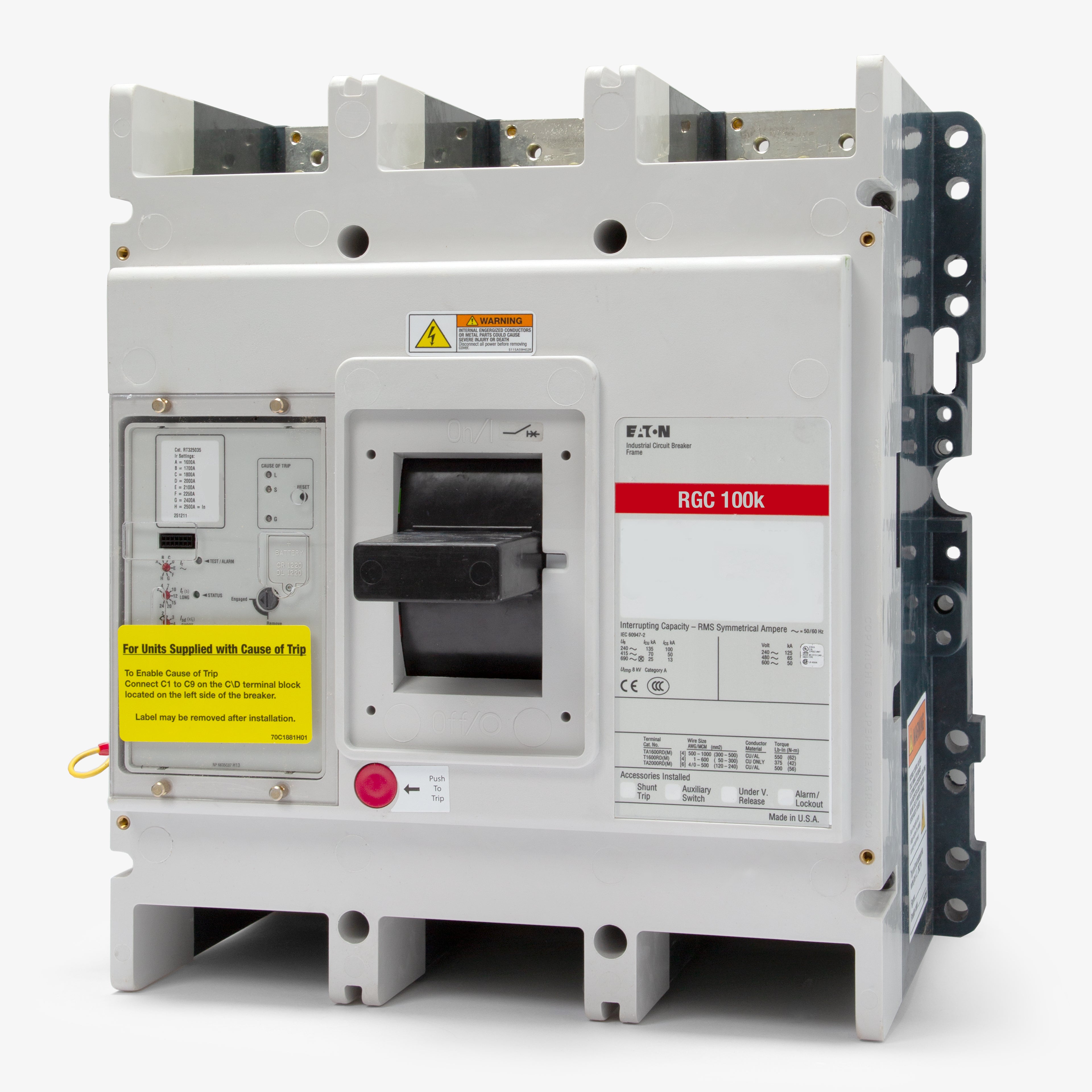

Eaton / Cutler-Hammer RGC320033E Molded Case Circuit Breaker
- 2000A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGC320033E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGC320033E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGC320033E - 2000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGC320039E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC325038E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC325039E
2500A 3 Pole Molded Case Circuit Breaker
Description
Engineered for maximum reliability, the Eaton RGC320033E is a 2000A molded case circuit breaker from the high-performance Series G family. This unit-mount RG-frame breaker installs into Eaton Series G panelboards, switchboards, and motor control centers. It utilizes imperial tapped pad terminals to ensure secure, high-capacity connections. Capable of handling 100 kAIC at 480V, it is equipped with a Digitrip 310+ electronic trip unit featuring adjustable Long-Time and Short-Time (LS) settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGC320033E |
| Series | RGC |
| Amperage | 2000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 1000-2000A |
|---|
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Eaton Series G Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Digitrip 310+ Electronic Trip Unit (LS) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, 80% Rated, Zone Selective Interlocking (ZSI), Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
8 answersWhat equipment is the Eaton RGC320033E compatible with?
This RG-frame circuit breaker is designed for use in Eaton Series G panelboards, switchboards, and motor control centers.
What type of trip unit is installed in the RGC320033E?
It features a Digitrip 310+ electronic trip unit with adjustable Long-Time and Short-Time (LS) protection. The 33 in the catalog number designates the 310+ LS configuration, which provides an I2t response for short delay.
Is the RGC320033E a 100 percent rated circuit breaker?
No, the standard RGC320033E is an 80 percent rated breaker. A C suffix would be required in the catalog number (e.g., RGC320033EC) for a 100 percent continuous rating.
Does the RGC320033E include ground fault protection?
No, the 33 suffix indicates an LS (Long-Time, Short-Time) trip unit. For ground fault protection, a breaker with an LSG or LSIG trip unit, such as suffix 35 or 36, is required.
What does the E at the end of the RGC320033E catalog number signify?

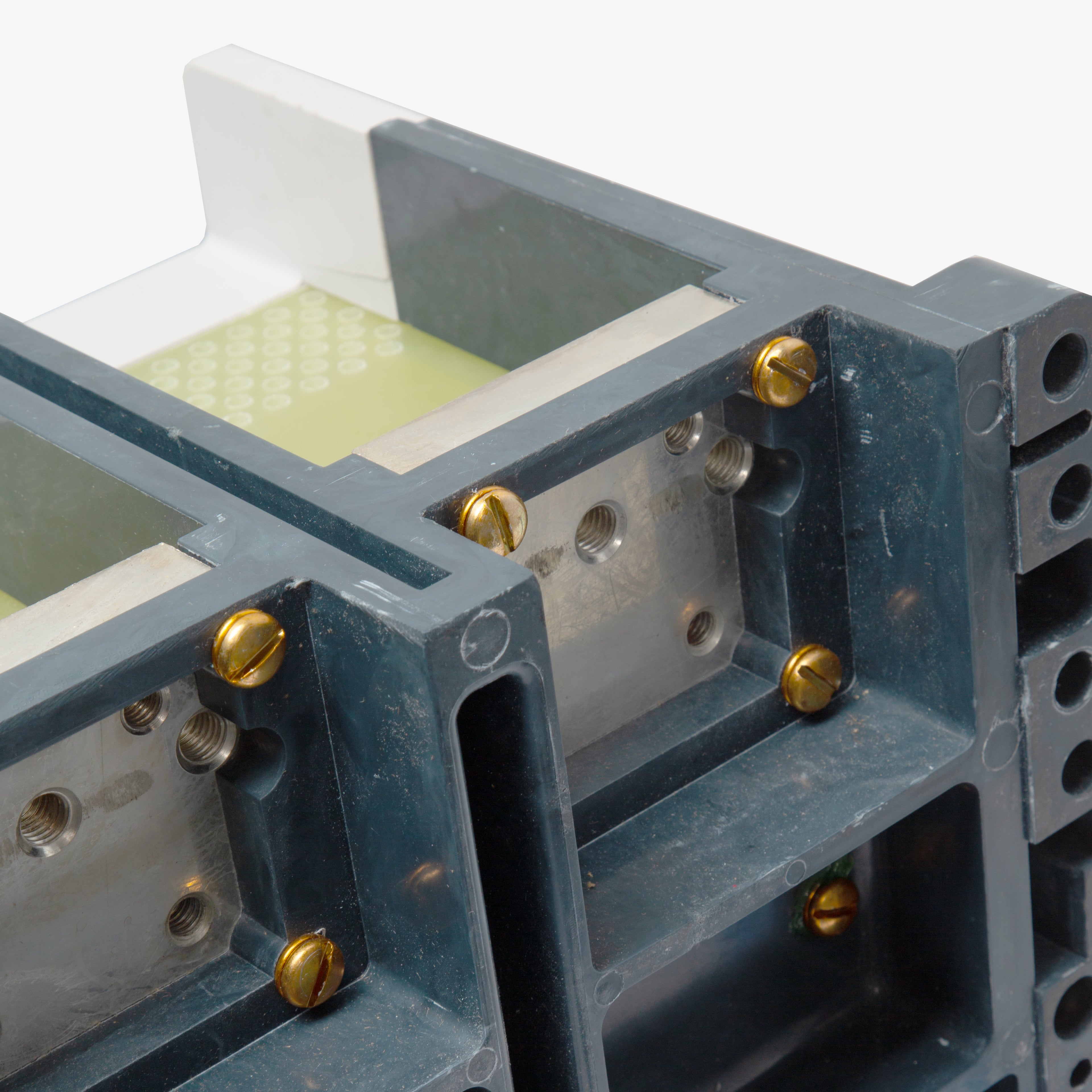

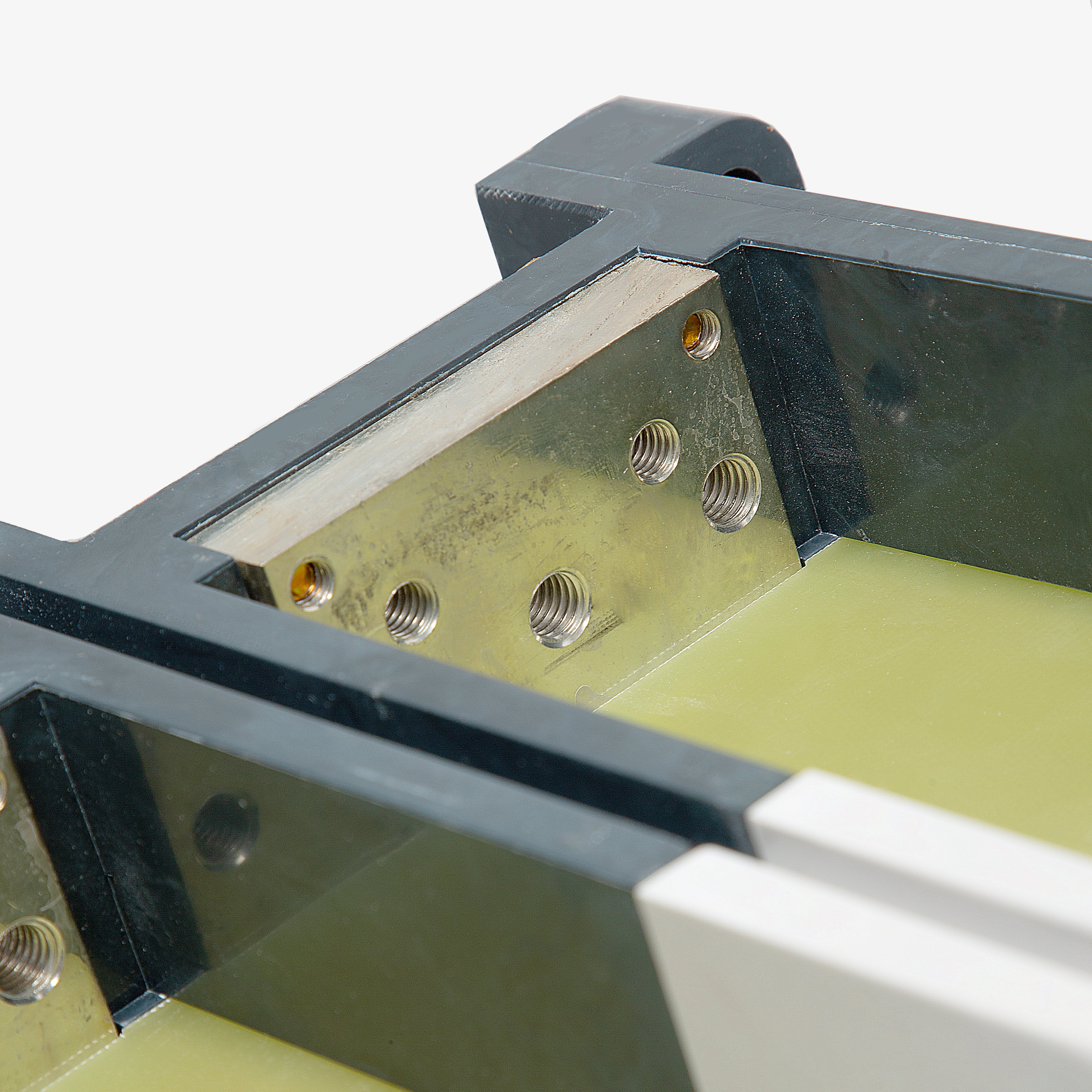

The E indicates that the breaker is equipped with imperial tapped pad terminals (end caps) and imperial mounting hardware threads, as opposed to metric threads.
Are wire lugs included with the RGC320033E?

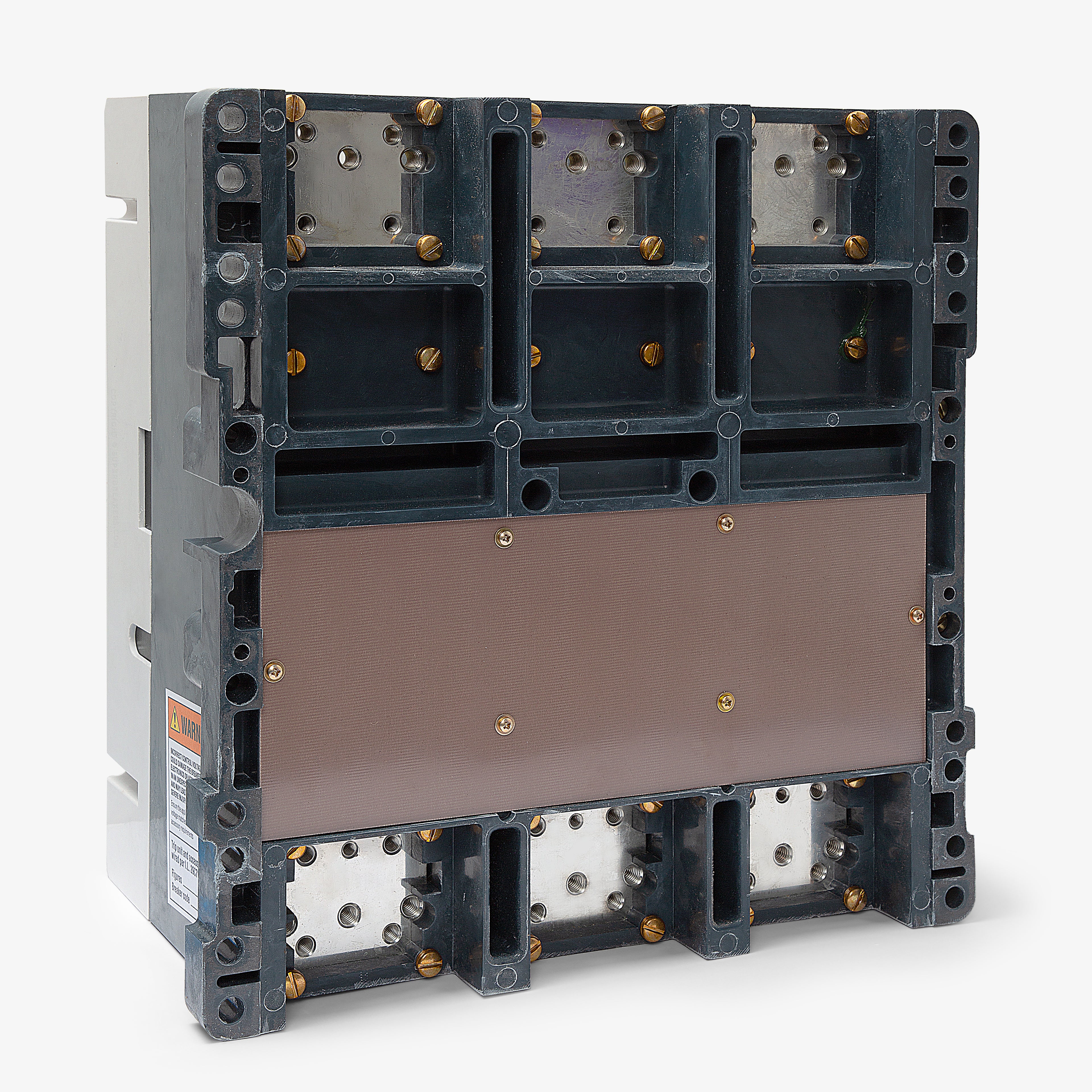

No, this breaker comes standard with imperial tapped pad terminals on the line and load sides. Wire lugs and mounting hardware must be ordered separately based on your specific conductor requirements.
Can the RGC320033E be reverse fed?
Yes, all Eaton R-Frame circuit breakers, including the RGC320033E, are suitable for reverse feed applications.
Can I add internal accessories like a shunt trip or undervoltage release to this breaker?
Yes, the Eaton RG-frame supports common field-fit internal accessories. These should be installed in the accessory mounting deck before the circuit breaker is mounted and connected to the system.
