Eaton / Cutler-HammerBAB3030HS
Free Shipping Over $99

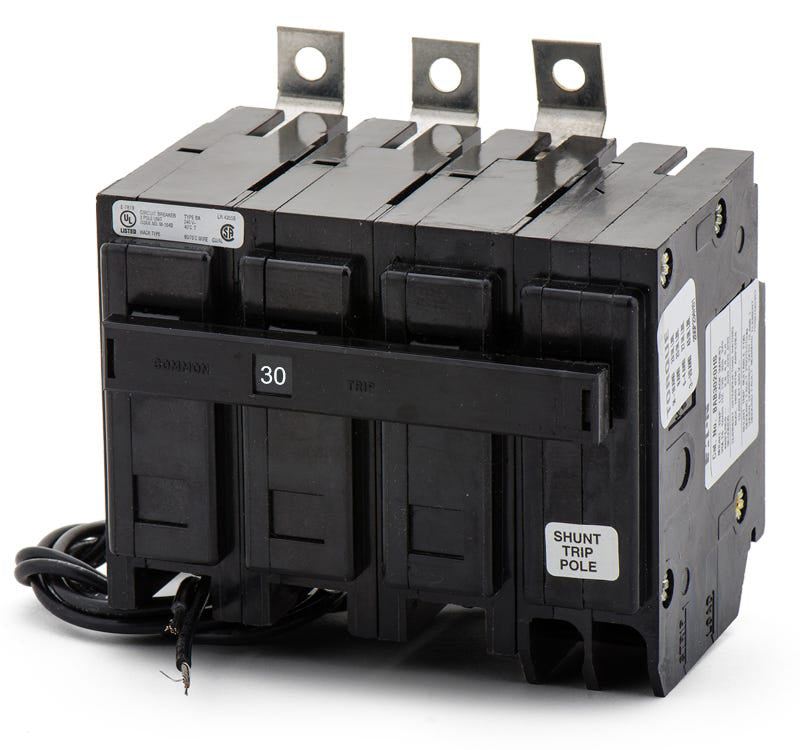

Eaton / Cutler-Hammer BAB3030HS1 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3030HS1
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3030HS1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3030HS1 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBAB3035HS
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3025HS
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3040HS
40A 3 Pole Miniature Circuit Breaker
Description
Designed for specialized control systems, the Eaton BAB3030HS1 is a 3-pole, 30A miniature circuit breaker. It stands out by incorporating a 24-48VDC shunt trip mechanism, allowing remote tripping via low-voltage DC signals. The bolt-on configuration ensures a secure connection within Eaton Pow-R-Line, Cutler-Hammer, and Westinghouse panelboards. With a 10kAIC rating at 240VAC, it provides robust long-time and instantaneous protection through fixed thermal-magnetic trip elements.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3030HS1 |
| Series | BAB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (24-48VDC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat does the HS1 suffix indicate on this circuit breaker?
The HS1 suffix designates that the breaker includes a factory-installed 24-48VDC shunt trip mechanism. This feature allows the breaker to be tripped remotely using a low-voltage DC control signal, which is often required for emergency stop or specialized control circuits.
How much panel space is required to install the BAB3030HS1?
Because this breaker includes a factory-installed shunt trip mechanism, it requires one additional pole space on the right side. While it provides 3-pole protection, it will occupy four pole spaces in your panelboard.
Can I install the BAB3030HS1 in a standard residential load center?
No. The BAB3030HS1 is a bolt-on circuit breaker designed for commercial and industrial panelboards like the Eaton Pow-R-Line series. It will not fit in standard residential plug-on load centers that use Type BR or Type CH breakers.
Is this breaker branded as Eaton, Cutler-Hammer, or Westinghouse?
The BAB frame was originally developed by Westinghouse and later acquired by Cutler-Hammer, which is now part of Eaton. You may find this exact BAB3030HS1 breaker labeled under any of these three brands, and they are fully interchangeable within compatible panelboards.
What is the proper way to test the shunt trip mechanism after installation?
After wiring the control circuit to the shunt trip leads, apply the rated 24-48VDC control voltage. The breaker should trip immediately. Ensure the control power is removed before attempting to reset the breaker, as the handle will not latch if the shunt trip coil remains energized.
