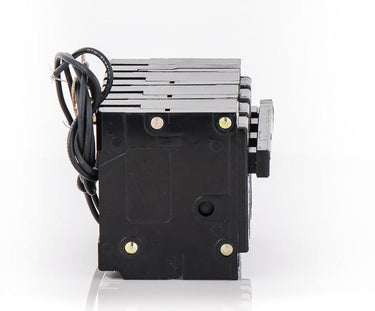

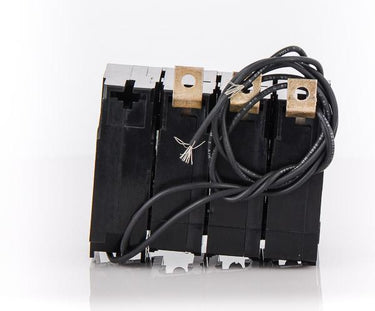

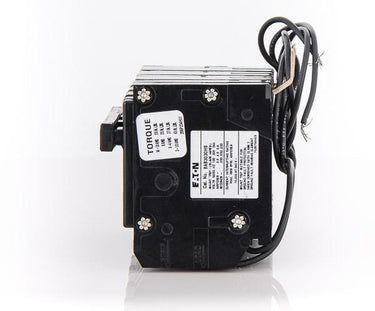

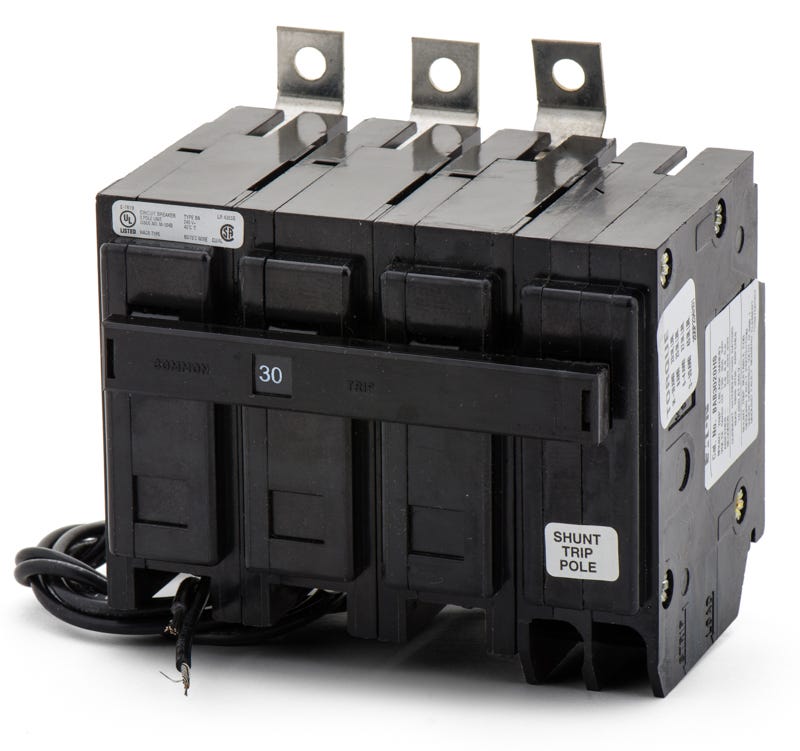

Eaton / Cutler-Hammer BAB3030HS Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3030HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3030HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3030HS - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3030HS - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3030HS |
| Series | BAB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3030HS - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3030HS-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerBAB3025HS
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3040HS
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3020HS
20A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial use, the Eaton BAB3030HS is a 3-pole, 30A miniature circuit breaker from the Quicklag series. It includes a built-in shunt trip rated for 120/208/240VAC, providing the ability to remotely open the circuit. This unit features a bolt-on mounting style compatible with Eaton Pow-R-Line, Westinghouse, and Bryant panelboards. It is also an exact substitute for older QNBL breakers. Delivering a 10kAIC interrupt rating at 240VAC, it relies on fixed thermal-magnetic elements.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3030HS |
| Series | BAB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the BAB3030HS breaker?
This bolt-on breaker mounts exclusively into Eaton Pow-R-Line, legacy Westinghouse, and Bryant panelboards designed for Quicklag BAB type breakers. It cannot be used in residential plug-on load centers like the Eaton BR or CH series.
How many panel spaces does the BAB3030HS require?
Although it is a 3-pole breaker, the factory-installed shunt trip requires one extra pole space on the right side. You will need a total of four pole spaces in your panelboard to install this unit.
What does the HS suffix in the BAB3030HS catalog number indicate?
The HS suffix designates a factory-installed shunt trip module. This feature allows the breaker to be tripped remotely by applying an external control voltage, which is commonly used for emergency stops or fire alarm control panels.
How do you wire the shunt trip module on this Quicklag breaker?
The shunt trip includes non-polarity-sensitive wire leads. You must connect one lead to your control voltage source and route the other lead through a normally open contact, such as a momentary pushbutton or alarm relay, to complete the tripping circuit.
Can I use this Eaton breaker to replace an older Cutler-Hammer BAB3030HS?
Yes. Eaton and Cutler-Hammer are the same brand. The current Eaton BAB3030HS is the direct, manufacturer-approved replacement for the legacy Cutler-Hammer version and features the exact same form factor and specifications.
Is the BAB3030HS HACR rated for HVAC equipment?
Yes, this circuit breaker is HACR rated. It is fully approved for protecting heating, air conditioning, and refrigeration circuits that require HACR-certified overcurrent protection.
Does the shunt trip module provide ground fault or arc fault protection?
No. The shunt trip is strictly designed for remote manual tripping or interfacing with external control systems. It does not provide integral GFCI or AFCI safety protection.
