Eaton / Cutler-Hammer BQ225230 - 25/30A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQ225230
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer BQ225230 - 25/30A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQ225230
Select Item Condition
Earn 71 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer BQ225230 - 25/30A Quadplex Miniature Circuit Breaker

New

$71.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

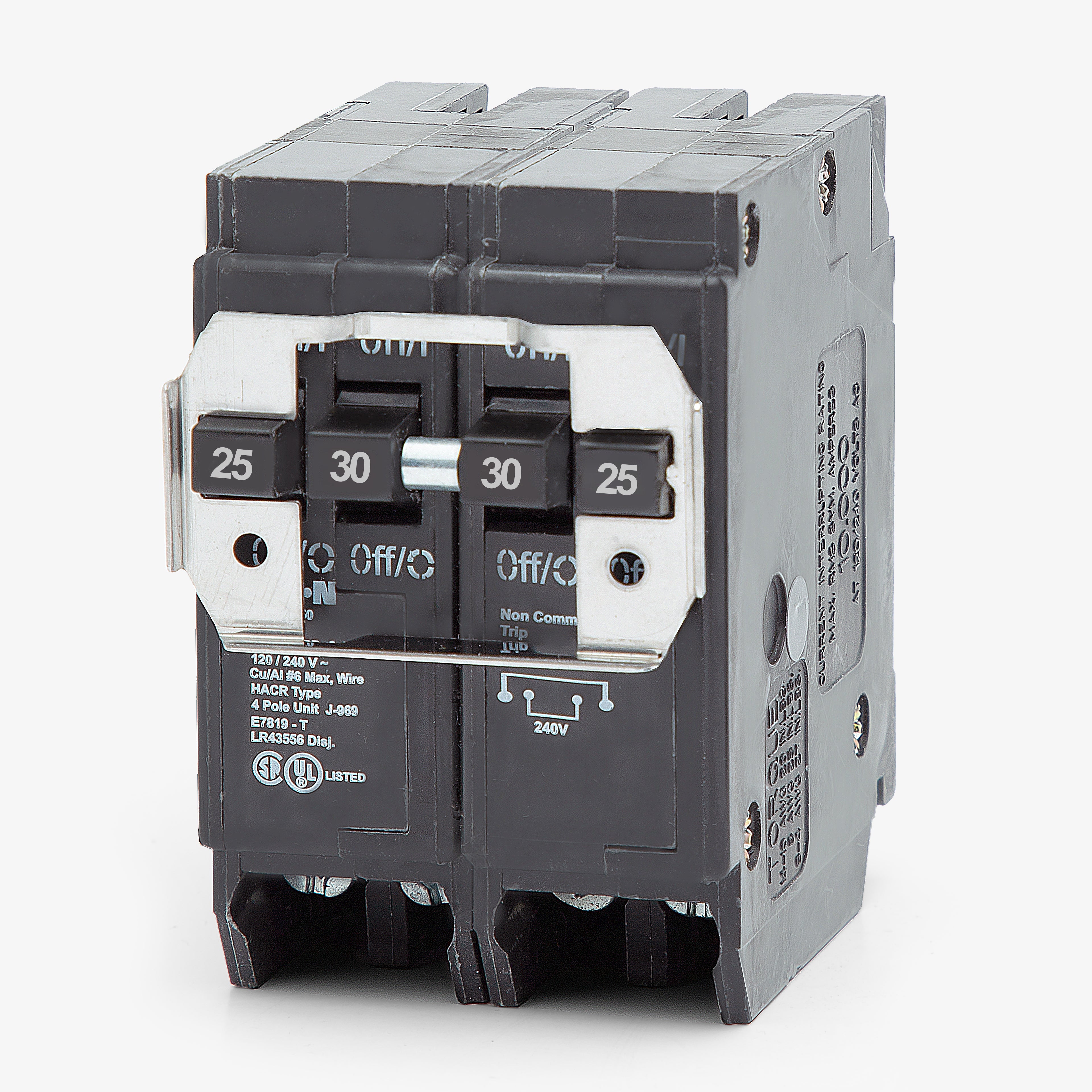

Providing two separate 2-pole circuits within a single unit, the BQ225230 quadplex breaker is built for residential and commercial distribution. It delivers one 25A and one 30A circuit in a compact form factor. This plug-on breaker mounts into Eaton BR, Bryant, Westinghouse, and Challenger load centers. It requires two 1-inch spaces, making it ideal for expanding capacity in full panels. Rated for 10 kAIC at 120/240V, it features a thermal-magnetic trip mechanism and includes a rejection tab.

Specifications

Brand Eaton / Cutler-Hammer
Series BQ
Amperage 25/30A
Voltage 120/240VAC
Poles 4
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification Quadplex

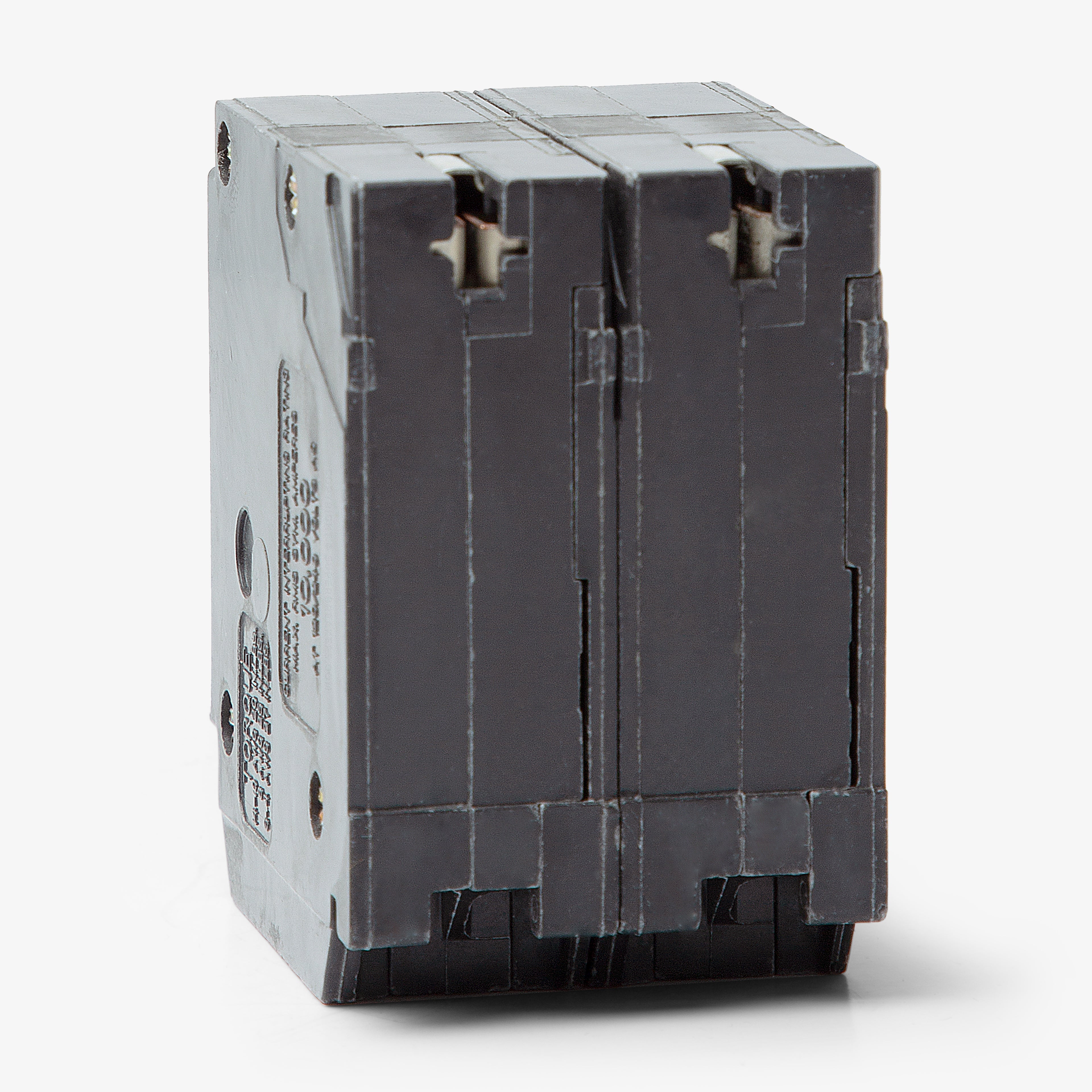

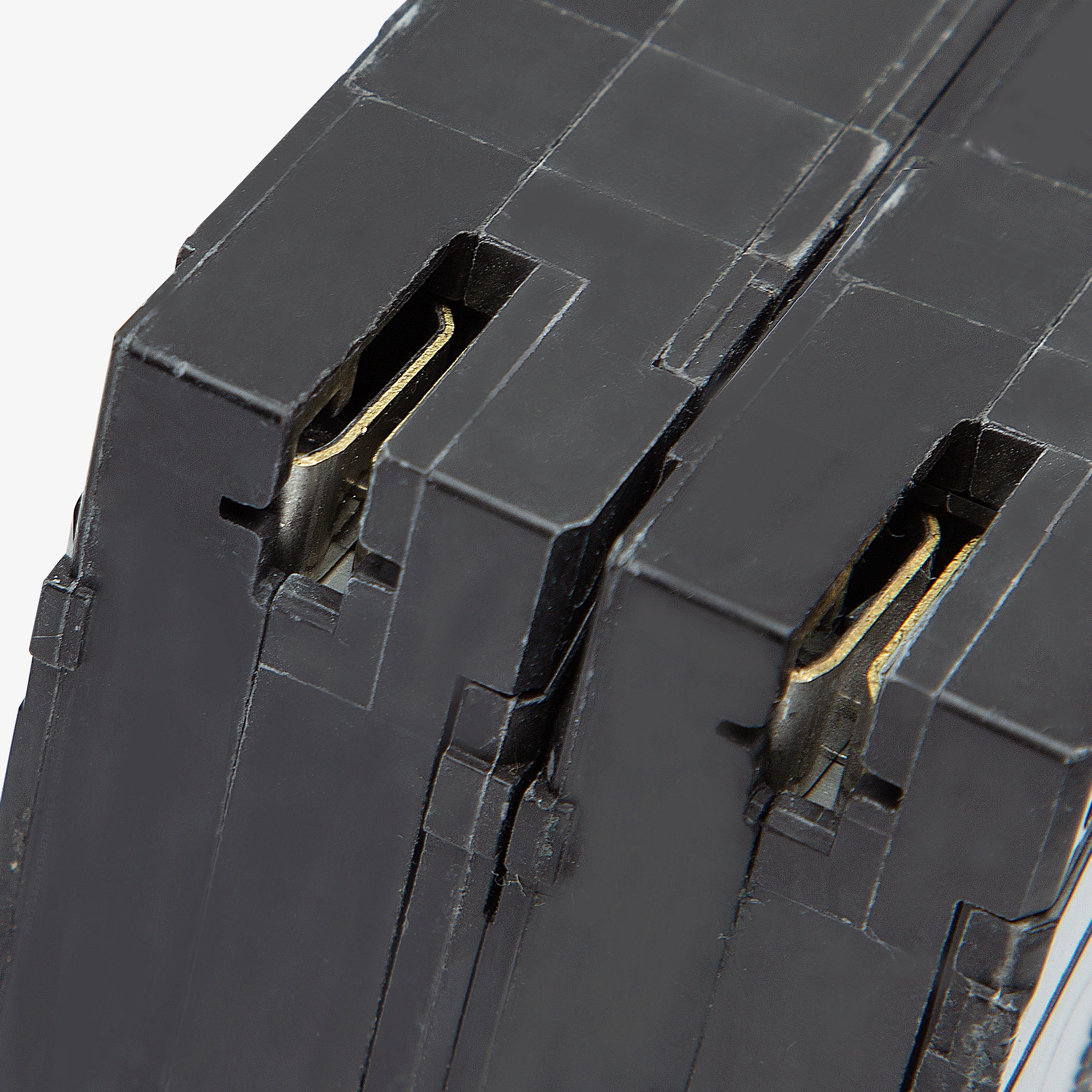

Mounting Style Plug-On

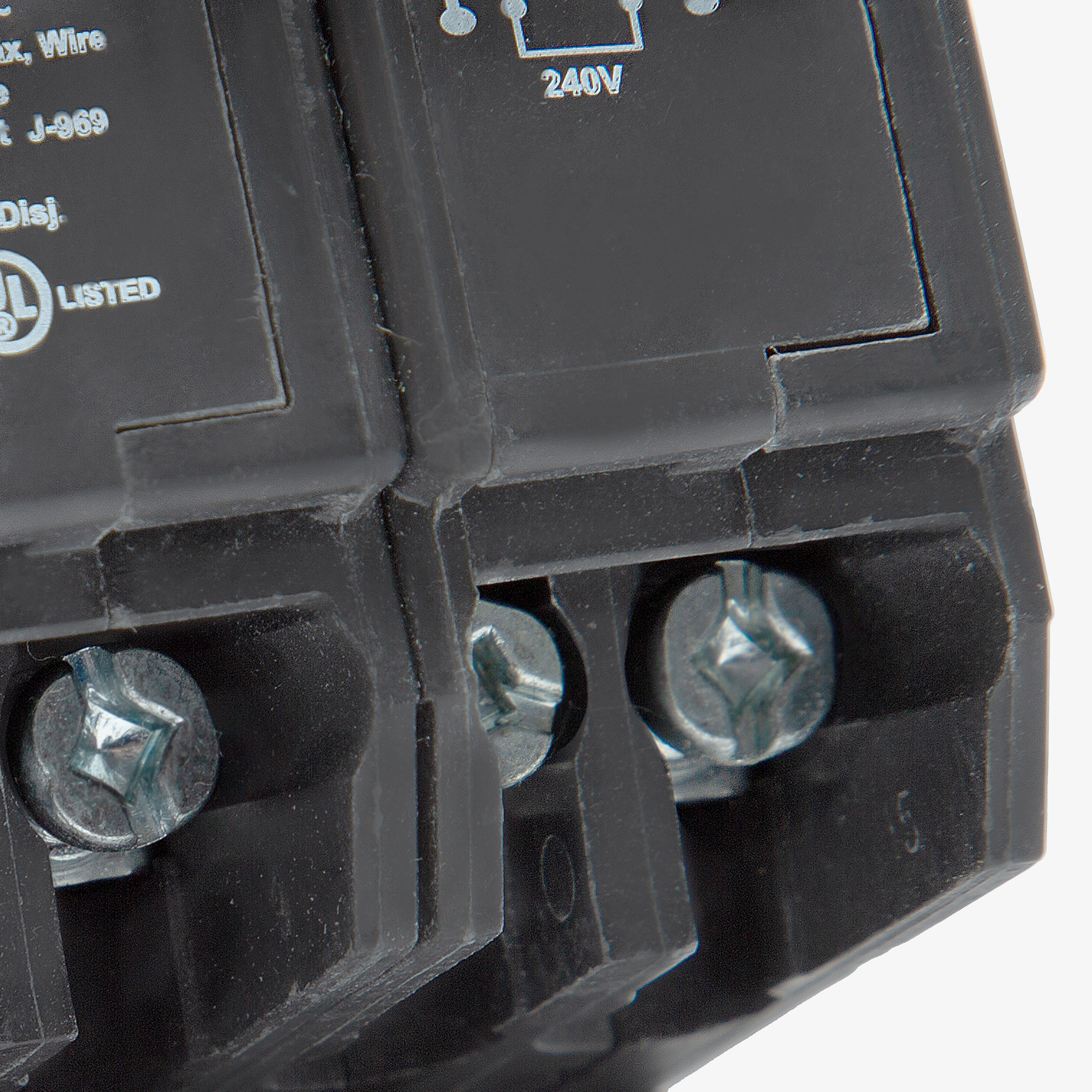

Terminal Type Box Lugs
For Use With Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge #14-4 AWG Cu/Al
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Accessories Rejection Tab
Standards CSA C22.2 No. 5, Federal Specification W-C375, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Independent Trip, Rejection Tab
