Eaton / Cutler-Hammer BQC215220 - 15/20A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQC215220
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer BQC215220 - 15/20A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQC215220
Select Item Condition
Earn 70 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer BQC215220 - 15/20A Quadplex Miniature Circuit Breaker

New

$70.69 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

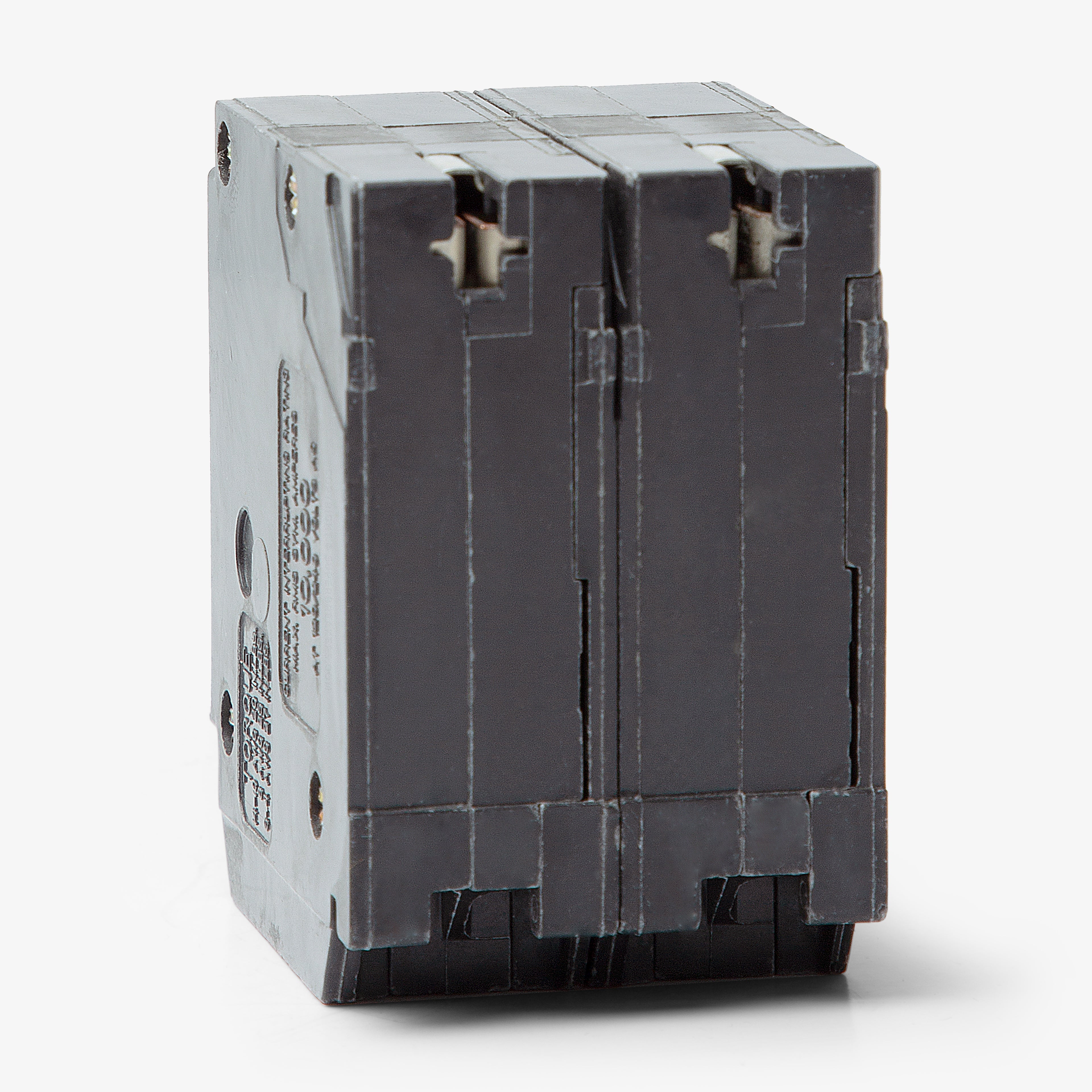

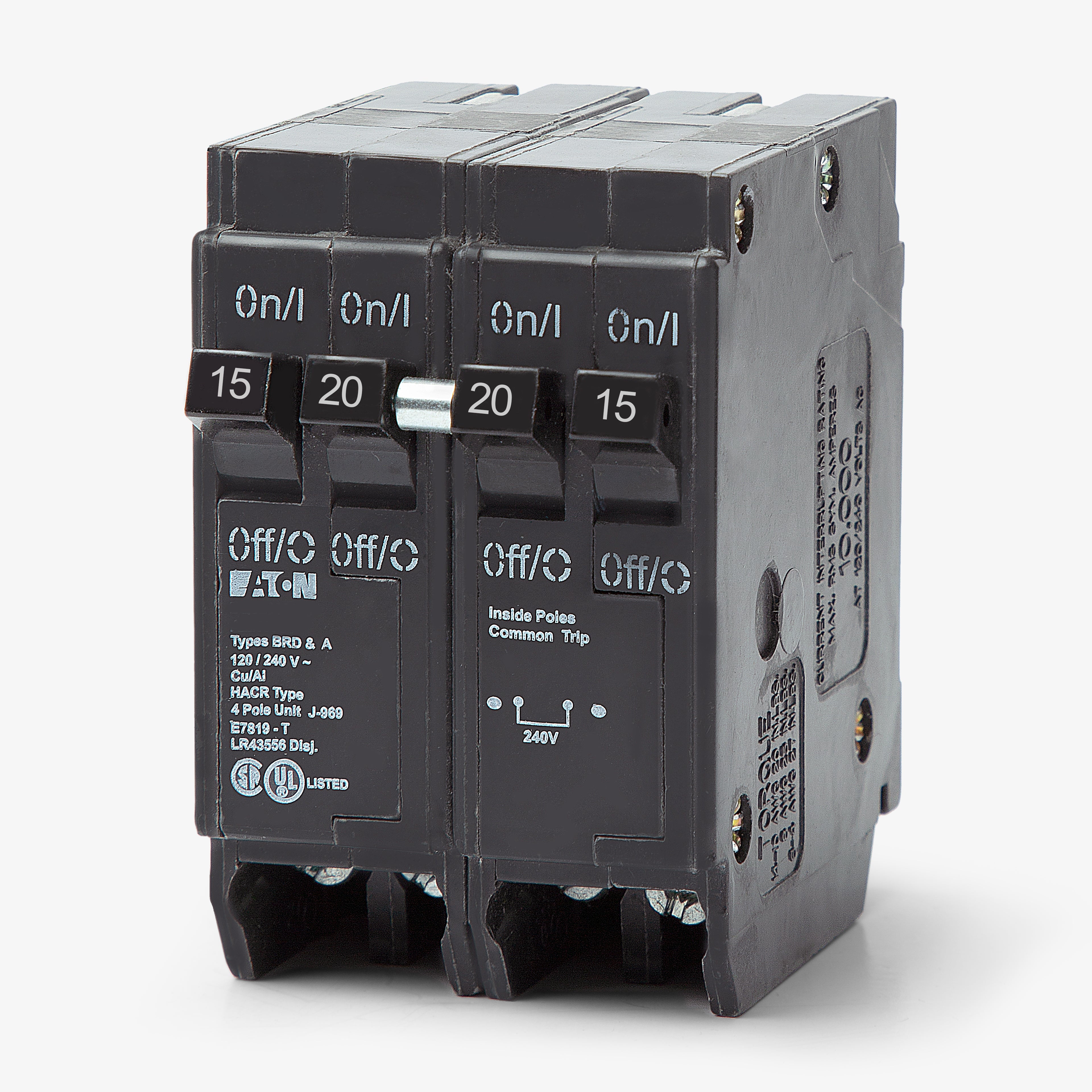

Built to expand panel capacity, the Eaton BQC215220 quadplex breaker houses four poles within a standard two-space form factor. It delivers reliable thermal-magnetic overcurrent protection for residential and commercial systems. This plug-on component mounts into Eaton Type BR load centers and utilizes a Class CTL rejection tab for code-compliant installation. Rated for 10kAIC at 120/240V, it features common trip mechanisms on both the center 15A and outer 20A poles.

Specifications

Brand Eaton / Cutler-Hammer
Series BQC
Amperage 15/20A
Voltage 120/240VAC
Poles 4
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification Quadplex

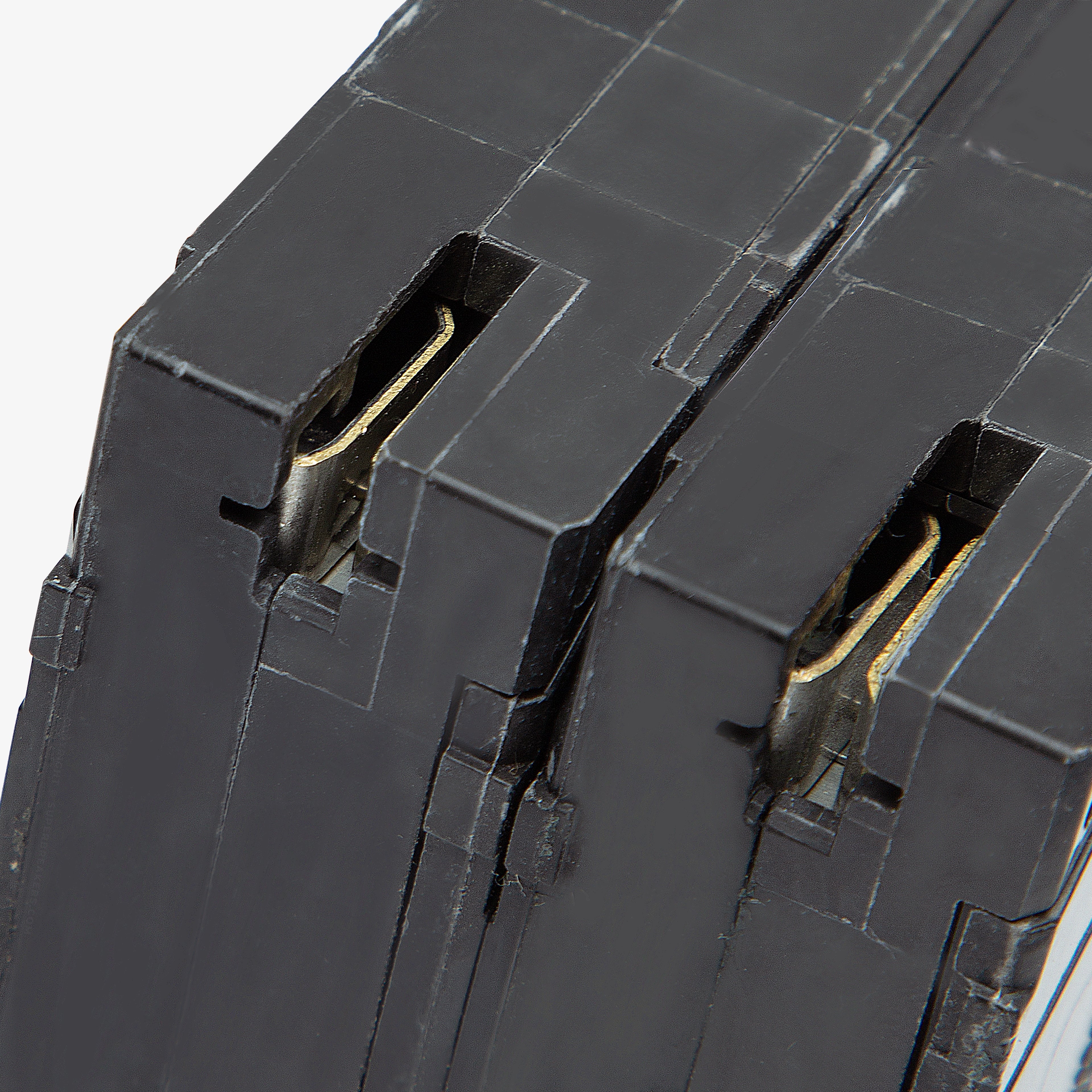

Mounting Style Plug-On

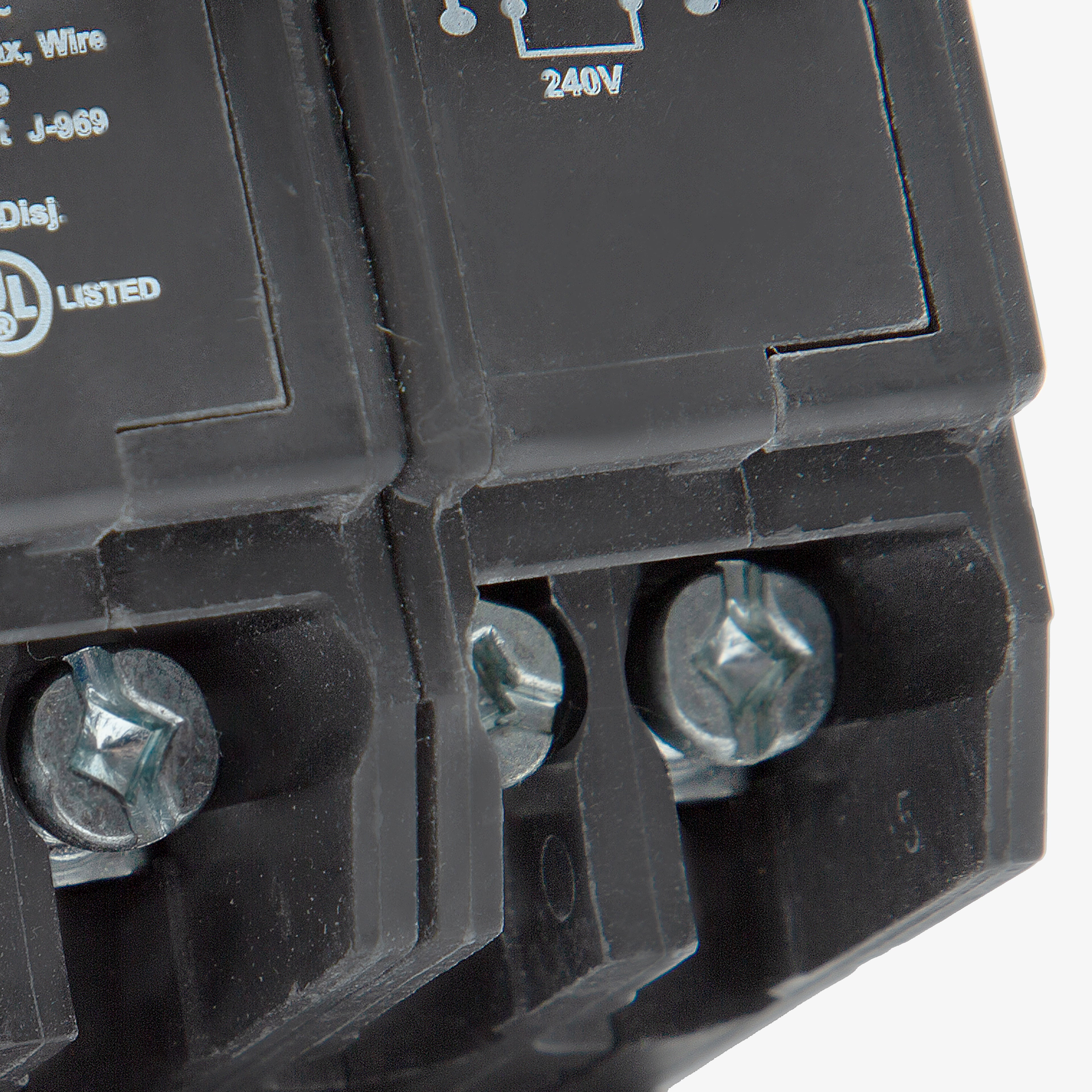

Terminal Type Box Lugs
For Use With Eaton Type BR Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 14-4 AWG
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Accessories Rejection Tab
Standards Federal Specification W-C375, UL 489
Approval HACR, UL
Temp Rating 60C to 75C
Construction Features Common Trip, HACR Rated, Rejection Tab (CTL)
