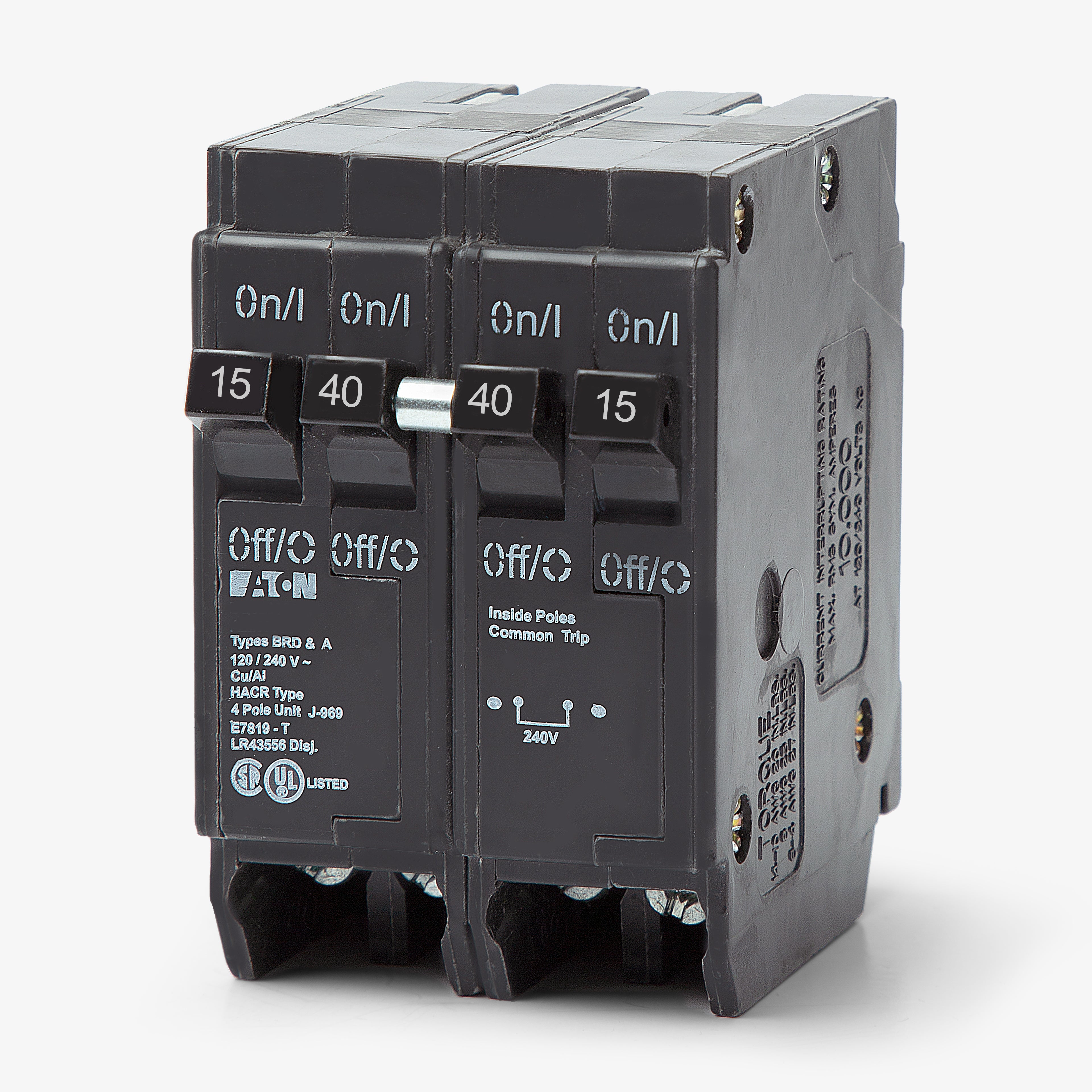

Eaton / Cutler-Hammer BQC215240 15/40A Quadplex Miniature Circuit Breaker
- 15/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC215240
15/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC215240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC215240 - 15/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC230240
30/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2402130
40/30/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240230
30/40A Quadplex Miniature Circuit Breaker
Description
Built for space-constrained applications, the Eaton BQC215240 delivers one 15A two-pole and one 40A two-pole circuit. It provides an efficient way to add dedicated lines to residential and commercial systems without a panel upgrade. The unit installs into Eaton Type BR load centers using a standard plug-on connection. It occupies only two 1-inch spaces and features a CTL rejection tab for proper fitment. Equipped with thermal-magnetic protection, it offers a 10kAIC rating and common trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
5 answersWhat panels are compatible with the BQC215240 quad breaker?
This breaker is designed for Eaton Type BR load centers. It is also a UL-approved replacement for legacy Westinghouse, Challenger, and Bryant panels that accept 1-inch BR-style plug-on breakers.
Does the BQC215240 require a CTL notched bus bar?
Yes, this is a CTL (Circuit Total Limiting) breaker. It features a rejection tab and must be installed in panel positions specifically notched to accept tandem or quadplex breakers.
How are the 15A and 40A circuits configured on this quadplex breaker?
The breaker provides two separate 240V circuits while only occupying two standard 1-inch panel spaces. It contains one 15-amp 2-pole circuit and one 40-amp 2-pole circuit in a single unit.
Are the 2-pole circuits on the BQC215240 common trip or independent trip?
The BQC series utilizes a common trip mechanism. If an overload or fault occurs on one leg of a 2-pole circuit, both legs of that specific circuit will trip simultaneously to disconnect 240V power.
Is the BQC215240 rated for HVAC equipment?
Yes, Eaton BQC quadplex circuit breakers carry a listing for HACR (Heating, Air Conditioning, and Refrigeration) applications, making them suitable for compatible HVAC loads.
