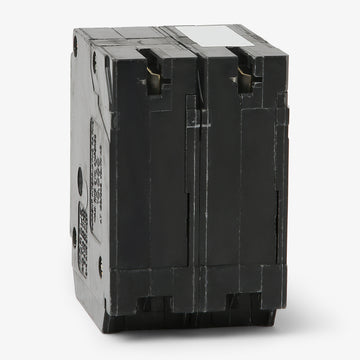

Eaton / Cutler-Hammer BQC2202120 20/20A Quadplex Miniature Circuit Breaker
- 20/20A
- 4 Pole

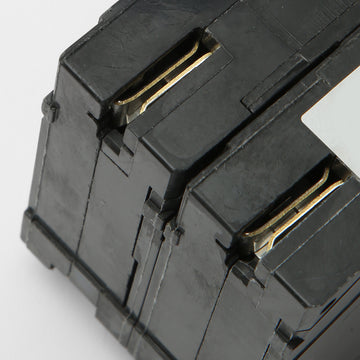

- Plug-On
Eaton / Cutler-Hammer
BQC2202120
20/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2202120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2202120 - 20/20A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC2152120
15/20/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC215220
15/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2202115
15/20A Quadplex Miniature Circuit Breaker
Description
Part of the BR family, this 20/20A quadplex breaker delivers four poles of protection in a compact footprint. It supplies two 20A single-pole circuits on the outside and one 20A two-pole circuit in the center. Designed for quick installation, it snaps securely into Eaton Type BR panelboards. The built-in rejection tab ensures compatibility with CTL-rated load centers. Delivering a 10 kAIC interrupting capacity, this HACR-rated unit utilizes reliable thermal-magnetic trip technology.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 20/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 60C to 75C |
Product FAQs
6 answersWhat load centers are compatible with the Eaton BQC2202120 quad breaker?
This breaker is designed for use in Eaton and Cutler-Hammer Type BR load centers. Because it is a Class CTL breaker with a rejection tab, your panel must have slots specifically rated to accept tandem or quad breakers.
How many panel spaces does the BQC2202120 require?
This quadplex breaker requires two standard 1-inch spaces in your panel to provide four poles of protection.
How are the circuits arranged on the BQC2202120 quad breaker?

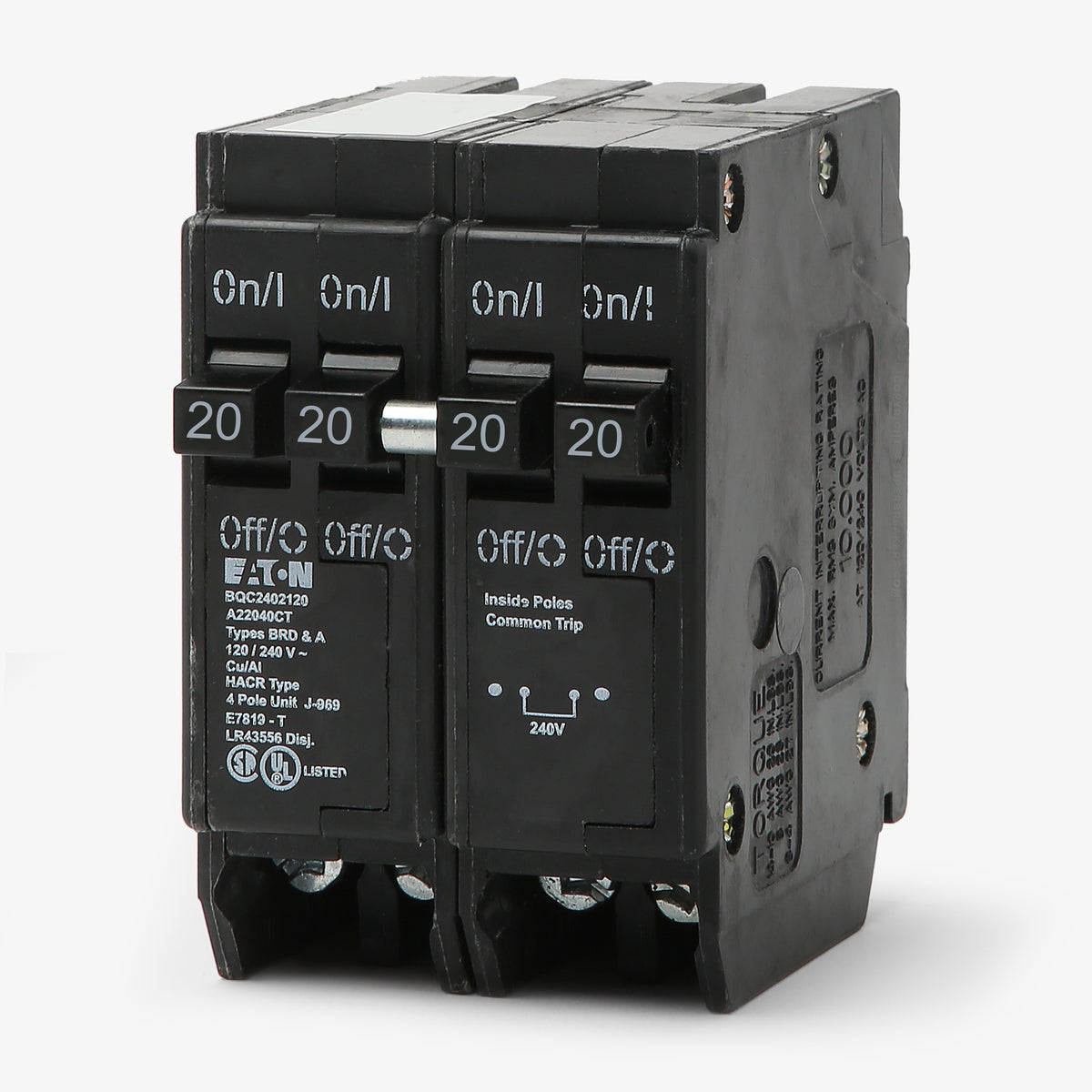

This quadplex breaker provides two independent single-pole 20A circuits on the outer positions and one two-pole 20A circuit with a common trip in the center.
Can I use the BQC2202120 in an older Cutler-Hammer panel?
Yes, Eaton and Cutler-Hammer Type BR breakers are interchangeable. This breaker is fully compatible with older Cutler-Hammer Type BR load centers, provided the panel accepts Class CTL breakers.
What does the rejection tab on the BQC2202120 do?
The rejection tab is a safety feature on Class CTL breakers that prevents the breaker from being installed in panel slots not designed for tandem or quad breakers. This protects the panel from exceeding its maximum circuit capacity.
Can I use aluminum wiring with the BQC2202120?

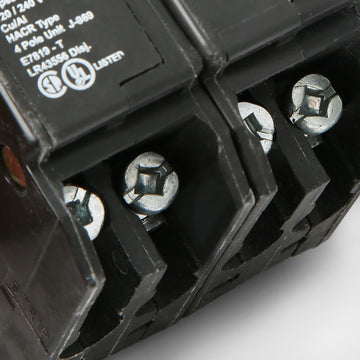

Yes, the box lug terminals on this breaker are rated for both copper and aluminum wiring ranging from 14 AWG to 4 AWG.
